Hot Rolled 304 / 1.4301 / SUS304 / 06Cr18Ni9 SS Plate 3.0 - 60.0mm
ASTM A240 from TISCO
| Products | Stainless Steel Plate |
| Thickness | 0.6 - 60.0mm |
| Width | 1000mm 1219mm 1500mm 1800mm 2000mm or other width as request |
| Length | 2000mm 2438mm 3000mm 6000mm or other length as request |
| Grade | 201 202 301 304 304L 304H 309S 310S 316L 316Ti 317L 321 347 409L
410 420 430 431 436L 439 441 443 444 2205 2507 904L 600 625 800 825
718 253MA 254SMO.etc |
| Service | Laser Cutting, Surface processing, bending |
| Brand | TISCO BAOSTEEL POSCO LISCO JISCO |
| Standard | ASTM JIS GB DIN EN BS |
| Certificate | ISO MTC C/O F/E |

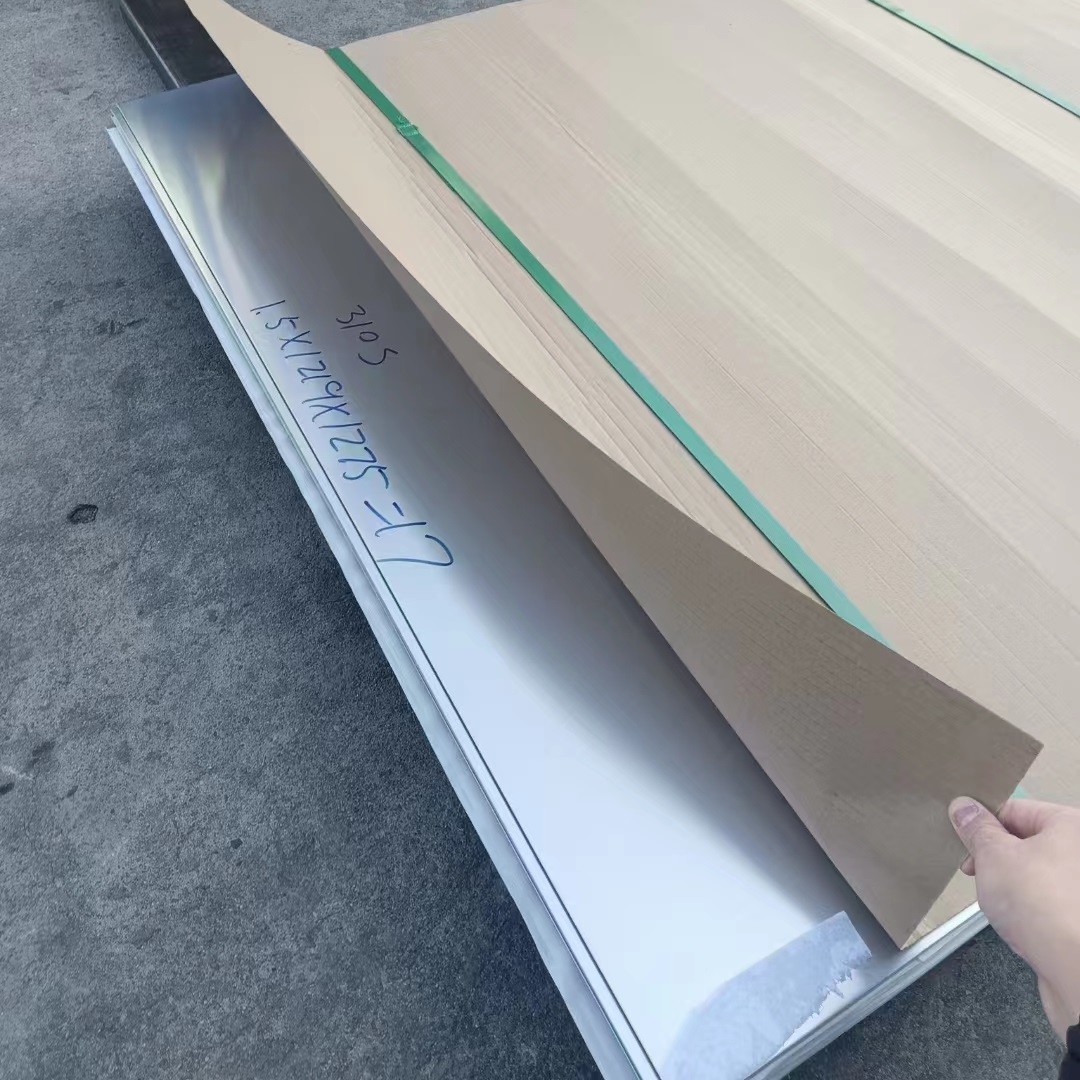

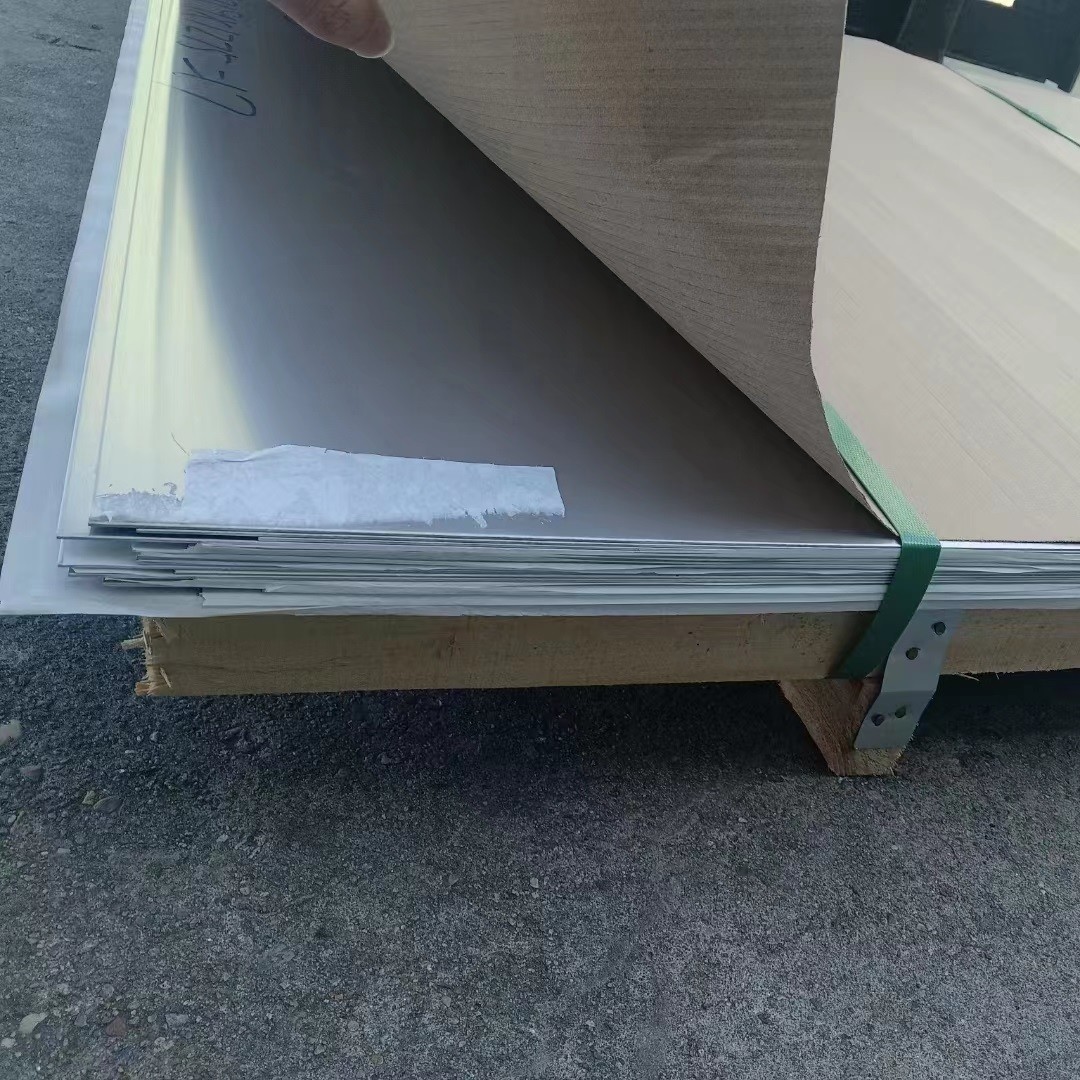

| Packing | Wooden pallets and waterproof paper |
| Deliver time | 5 - 15 days |
| Loading port | Shanghai Port |
Our 304 Stainless Steel Sheet & Plate in Stock
| 304 Stainless Steel Plate & Sheet in Stock |
| 0.3*1219*2438 | 3.0*1500*6000mm | 30*1500*6000mm | 0.3*1000*2000mm |
| 0.4*1219*2438 | 4.0*1500*6000mm | 35*1500*6000mm | 0.4*1000*2000mm |
| 0.5*1219*2438 | 5.0*1500*6000mm | 40*1500*6000mm | 0.5*1000*2000mm |
| 0.6*1219*2438 | 6.0*1500*6000mm | 45*1500*6000mm | 0.6*1000*2000mm |
| 0.8*1219*2438 | 8.0*1500*6000mm | 50*1500*6000mm | 0.8*1000*2000mm |
| 1.0*1219*2438 | 10.0*1500*6000mm | 55*1500*6000mm | 1.0*1000*2000mm |
| 1.2*1219*2438 | 12.0*1500*6000mm | 60*1500*6000mm | 1.2*1000*2000mm |
| 1.5*1219*2438 | 14.0*1500*6000mm | 65*1500*6000mm | 1.5*1000*2000mm |
| 2.0*1219*2438 | 16.0*1500*6000mm | 70*1500*6000mm | 2.0*1000*2000mm |
| 2.5*1219*2438 | 20.0*1500*6000mm | 75*1500*6000mm | 2.5*1000*2000mm |
| 3.0*1219*2438 | 25.0*1500*6000mm | 80*1500*6000mm | 3.0*1000*2000mm |
AISI 304 Stainless Steel (UNS S30400)
AISI 304 stainless steel (UNS S30400) is the most commonly used
material in stainless steels, and is usually purchased in an
annealed or cold worked state. Because SS304 contains 18% chromium
(Cr) and 8% nickel (Ni), it’s also known as 18/8 stainless steel.
Type 304 has good processability, weldability, corrosion
resistance, heat resistance, low temperature strength and
mechanical properties, good hot workability such as stamping and
bending, and no heat treatment hardening. SS 304 is widely used in
the industrial use, furniture decoration, food and medical
industry, etc.
AISI 304L is the low carbon version of 304 stainless steel, AISI
303 is a free-machining steel, basically a variant of SS304, which
increases the phosphorus (P) and sulfur (S) content and improves
the machinability. AISI 316 is better than 304 in certain
properties, corrosion resistance and heat resistance, etc. For more
information, please check 304 vs 304L stainless steel and 304 vs
316 stainless steel.
Chemical Composition of 304 Stainless Steel
| Chemical Composition, % |
| AISI (UNS) | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | N, ≤ | Product |
| 304 (UNS S30400) | 0.07 | 0.75 | 2.00 | 0.045 | 0.030 | 17.5-19.5 | 8.0-10.5 | 0.10 | Plate, Sheet, and Strip |
| 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-11.0 | – | Bars and Shapes |
SS304 Stainless Steel Mechanical Properties
Datasheet-2, the tables below list SS304 material mechanical
properties including yield strength, tensile strength, elongation
and hardness, etc.
| Mechanical Properties, data are for 25.4 mm (1 in.) diameter bar |
| Steel (UNS) | Tensile strength, MPa (ksi) | Yield strength, MPa (ksi) | Elongation in 50 mm (2 in.), % ≥ | Reduction in area (%) | Hardness (HB) | Condition |
| AISI 304 (UNS S30400) | 585 (85) | 235 (34) | 60 | 70 | 149 | Annealed bar |
| 690 (100) | 415 (60) | 45 | | 212 | Annealed and cold drawn |
| 860 (125) | 655 (95) | 25 | | 275 | Cold drawn high tensile |
Standard Specification of 304 Stainless Steel Plate
ASTM type 304 stainless steel equivalent material is listed in the
table below, including ISO, European EN (Germany DIN, British BSi,
France NF…), Japanese JIS and Chinese GB standard (For reference).
Notes:
- DIN 17440 has been replaced by DIN EN 10088-2.
- Chinese stainless steel grade 0Cr18Ni9 is an old designation, and
has been replaced by the new name 06Cr19Ni10.
- ASTM A240/A240M – Standard Specification for Chromium and
Chromium-Nickel SS Plate, Sheet, and Strip for Pressure Vessels and
for General Applications.
- ASTM A276/A276M – Standard Specification for SS Bars and Shapes.
- JIS G4304 :2005 – Hot rolled stainless steel plate, steel sheet and
steel strip.
- GB/T 1220: 2007 – Stainless steel bars.
- GB/T 3280: 2015 – Cold rolled stainless steel plate, steel sheet
and steel strip.
Applications
AISI 304 stainless steel is widely used in petroleum & chemical
industry, metallurgical machinery, aerospace industry, food
processing equipment, instruments, household appliances and
hardware manufacturing industries.
SS304 material is made into a great many intermediate products such
as steel sheet & plate, steel tube & pipe, steel bar & flat, rod &
wire, etc.
Final products such as all kinds of kitchen ware, tableware,
medical device, machinery and parts, wire mesh, filters,
architectural and decorative products, etc.
