Alloy 654SMO Stainless Steel Round Bar UNS S32654 Alloy Bars EN
1.4652 Stainless Steel
654 SMO (UNS S32654/ W.Nr. 1.4652)
654 SMO (UNS S32654 / W.Nr. 1.4652) is a super austenitic stainless
steel containing 23% nickel, 25% chromium and
7% molybdenum. Its corrosion resistance is comparable to that of
the best nickel-based alloy. As the nitrogen content
of 654SMo is twice as high as 254SMo, its intensity is higher than
904L and 254SMo. There are two smelting method
for 654SMo super austenitic stainless steel: 1) the currently
popular argon-oxygen decarburization refining smelting in
abroad -VOD or AOD; 2)continuous casting method used for producing
stainless steel.

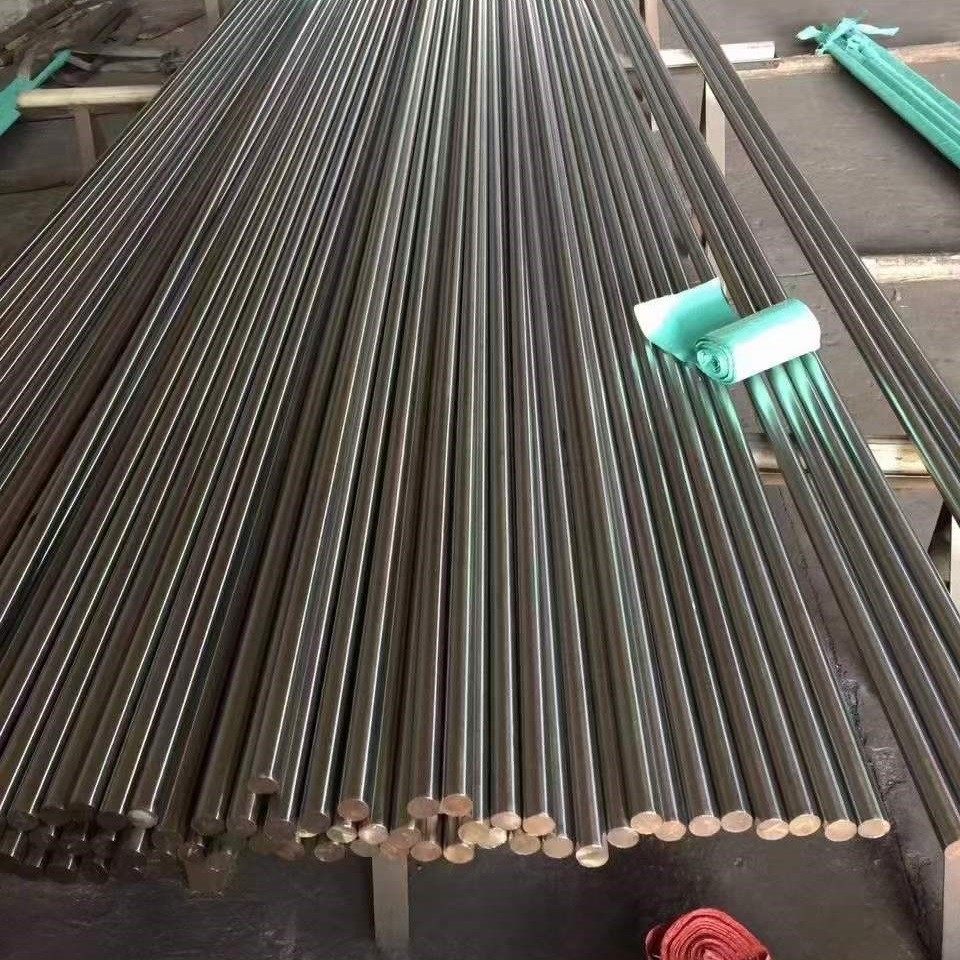

More Specification of 654SMO Stainless Steel Bar
| Products | 654SMO/1.4652/UNS S32654 Stainless Steel Bar |
| Diameter | 6 - 300mm |
| Standard | ASTM A276 |
| Length | 6000mm or cutting any length as request |
| Type | Hot rolled/ cold drawn / forged |
| Surface | Black , bright |
| MOQ | 500 kgs |
| Service | cutting , heat treatment (solid solution , aging) |
| Other grade | 201 202 303 303Se 304 304L 309S 310S 316L 316Ti 316LN 316LMod 317L 317LN
321 347 410 420 416 430F 431 440A/B/C 904L 2205 2507 254SMO 654SMO 253MA.etc |
| Loading Port | Shanghai Port |
| Packing | wooden box or as request |
| Deliver time | 5 - 12 days |
Equivalent Grades: UNS S32654 (Alloy 654), EN 1.4652, ASTM UNS
S32654, X1CrNiMoCuN24-22-8, 654 SMO
UNS S32654 (1.4652, 654SMO) is a type of special stainless steel
containing a high percentage of Nickel and Chromium, containing 7%
molybdenum, and very high Nitrogen, High mechanical strength.
654SMO (1.4652, UNS S32654) is stainless steel with the highest
corrosion resistance in the world. It has a fairly high electrical
conductivity among wrought super austenitic stainless steel. In
addition, it has a fairly low thermal conductivity and moderately
high ductility.
Useful for e.g. pressurized and erosive systems handling
chlorinated seawater at higher temperatures, plate heat exchangers,
and flue gas cleaning applications.
UNS S32654 Chemical Composition:
| C | N | Cr | Ni | Mo | Cu | Mn | PREN | UNS S32654 |
| 0.02 | 0.45-0.55 | 24.0-26.0 | 21.0-23.0 | 7.0-8.0 | 0.30-0.60 | 2.0-4.0 | 54 | 654 SMO |
Feature of 654SMO Stainless Steel
Due to its high molybdenum, when 654S MO super austenitic stainless
steel is subjected to seamless pipe perforation, it is hard and
sticky, easy to get eccentric or crack. To avoid the risk in
perforation, our company chooses to punch holes in the center of
round steels and then directly put on the rolling mill for cold
rolling or cold drawing to produce seamless pipe. Although the cost
is increased, it secures high success rate.
654SMo (S32654, 1.4652) super austenitic stainless steel features
very good local corrosion resistance, good pitting resistance and
good stress corrosion resistance under seawater, aeration, gap and
low speed scouring conditions. It can be used as a good substitute
to nickel-based alloys and titanium alloys. When it comes to
high-temperature resistance or corrosion resistance, it is also
superior to 904L and 254SMo
Typical applications
- Pressurized and erosive systems handling chlorinated seawater at
higher temperatures
- Plate heat exchangers
- Flue gas cleaning
- Process equipment in the chemical industry
- Bleaching equipment in the pulp and paper industry
- Desalination
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
