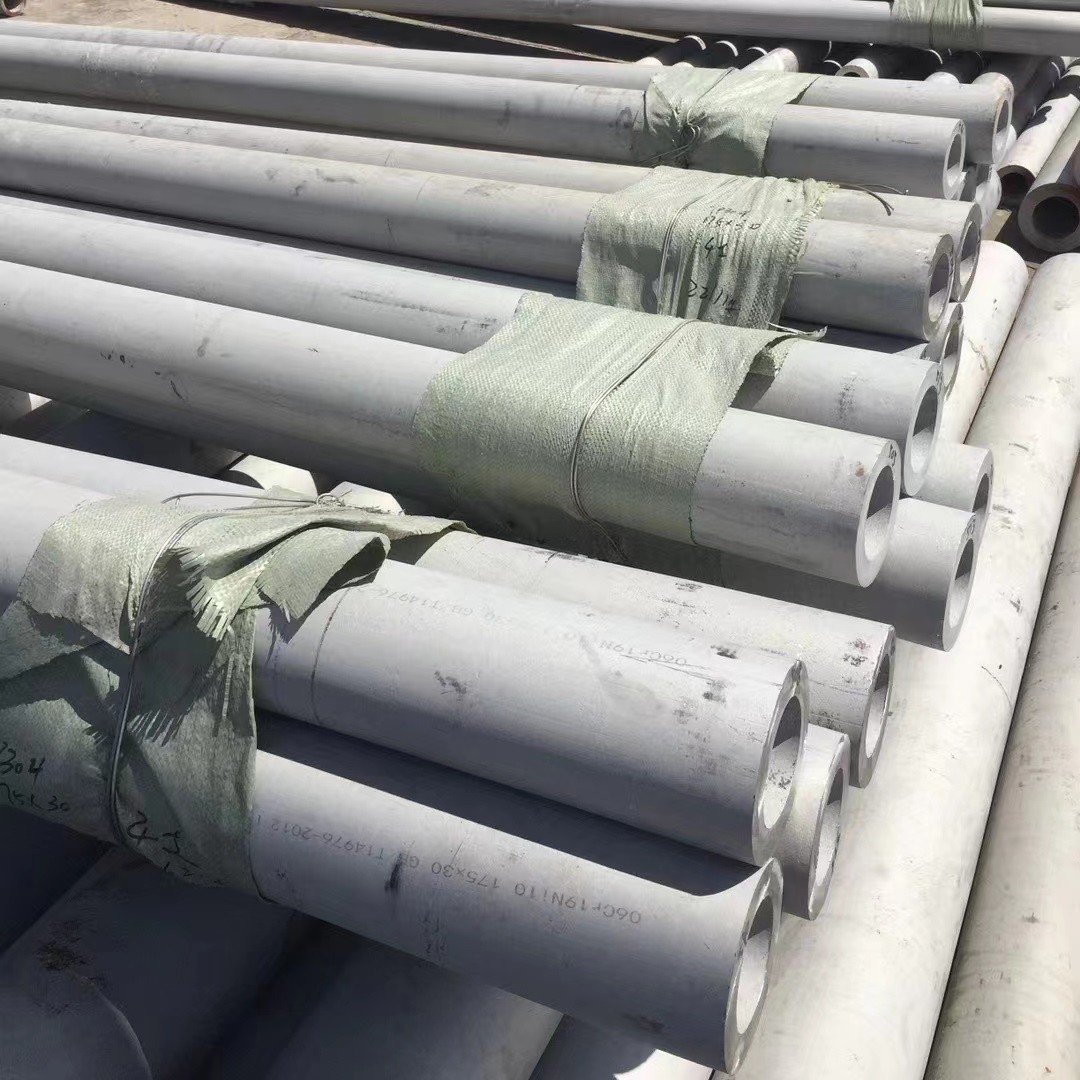

    Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe

    Ask Lasest Price
    Brand Name : DELTA
    Model Number : 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc
    Certification : ISO
    Price : 4000-5000 USD/Ton
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10 Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe

    Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe


    317L Stainless Steel Tubing

    Similar in composition to 316L and 304L, alloy 317L is an austenitic molybdenum, chromium, nickel stainless alloy. Due to the higher moly content, 317L provides enhanced resistance to pitting and stress corrosion cracking particularly in chloride or halide-rich environments. 317L has higher creep, stress-to-rupture, and tensile strength than its 316L and 304L counterparts which makes it a great solution to demanding applications found offshore, in pulp & paper mills and in chemical processing plants.

    Products Specification of 317L Stainless Steel Pipe


    Products Name317L Stainless Steel pIpe
    DiameterDN6 - DN500
    Wall ThicknessSCH10S - XXS or unstandard size as request
    Length6m or cutting any length as request
    StandardASTM JIS EN DIN
    TechniqueHot Rolled / cold drawn
    TypeSeamless Pipe / Welded Pipe
    Other Grade201 304 304L 309S 310S 316L 316Ti 316LMod 317L 321 347 410 904L 254SMO 253MA 2205 2507 654SMO 926 400 c276 c22 C4 600 625 800 825.etc
    MOQ500 kgs
    Loading PortShanghai Port
    Packingwooden box or ppbag

    Chemical Composition of 317L Stainless Steel Pipe

    Chemical Requirements

    ASTM TP317L (UNS S31703)
    Composition %

    C

    Carbon

    Mn
    Manganese

    P
    Phosphorous

    S
    Sulfur

    Si
    Silicon

    Cr
    Chromium

    Ni

    Nickel

    Mo
    Molybdenum

    0.030 max

    2.00 max

    0.045 max

    0.030 max

    1.00 max

    18.0–20.0

    11.0–15.0

    3.0–4.0

    Dimensional Tolerances

    OD

    OD Tolerance

    Wall Tolerance

    ≤ .500”

    ± .005"

    ± 10%

    .500”–1.5” excl

    ± .005”

    ± 10%

    Size Range

    Outside Diameter (OD)

    Wall Thickness

    6 - 508mm

    SCH10S SCH40S SCH80S SCH160


    APPLICATIONS

    Alloy 317L is commonly used to handle sulfur, pulp liquor, acid dyestuffs, acetylating and nitrating mixtures, bleaching solutions, severe coal and oil, and many chemical compounds. Some other applications that use alloy 317L include:

    • Paper and pulp handling equipment
    • Chemical and petrochemical processing equipment
    • Condensers in fossil and nuclear fueled power generation stations
    • Food processing equipment
    • Textile equipment
