    AISI441 Stainless Steel Sheet / UNS S44100 SS Sheets for Exhaust Gas Treatment

    Ask Lasest Price
    Brand Name : TISCO
    Model Number : 441
    Certification : ISO
    Price : 1410-1620USD/Ton
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10 Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    AISI441 Stainless Steel Sheet / UNS S44100 SS Sheets for Exhaust Gas Treatment

    AISI441 Stainless Steel Sheet / UNS S44100 SS Sheets for Exhaust Gas Treatment


    Products Specification


    Products Name441 Stainless Steel Sheet
    StandardASTM EN JIS GB BIS
    Thickness0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm
    Surface2B 2D or process other surface as request
    Standard Size1219*2438mm 1000*2000mm
    ServiceSlit Cutting, bending , surface treatment
    Other Grade200 Series: 201 202
    300 Series: 301 304 304L 309S 310S 316L 316Ti 317l 321 329 347
    400 Series: 409L 410S 416 420 431 436L 439 441 443 444 446
    Special Grade: 254SMO 904L 2205 2507 253MA Nickel Alloy
    MOQ500 kgs
    PackingWooden Pallets and waterproof paper

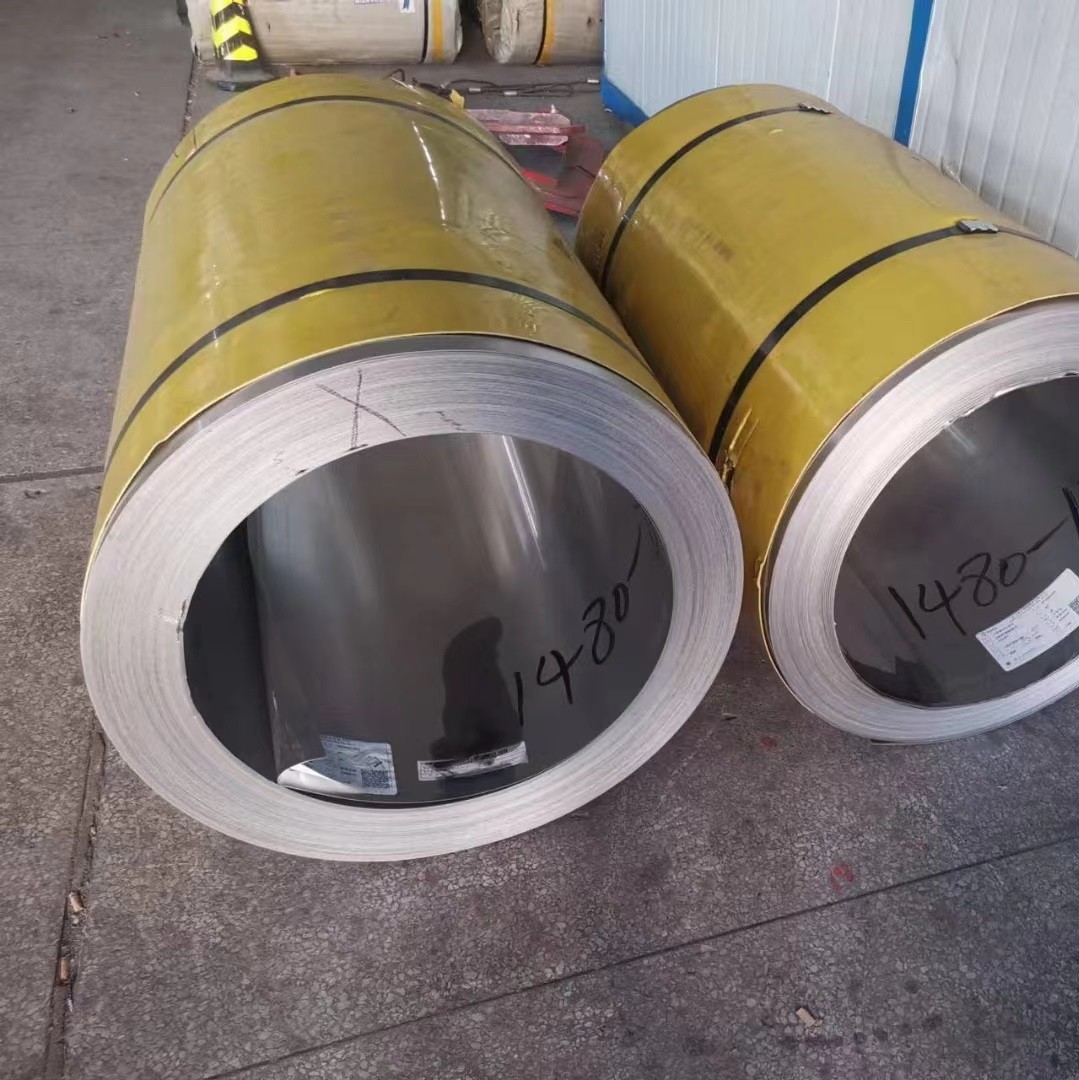

    Type 441 (UNS S44100) in Coil Form

    Description
    Type 441 is an 18% chromium, dual stabilized ferritic stainless steel with corrosion resistance similar to that of 304/304L stainless steel. This grade may be used in the annealed, cold formed or as-welded condition in applications where other stainless steels such as Type 304/304L and Type 430 are used. Type 441 has good weldability due to titanium and niobium stabilization and has excellent resistance to stress corrosion cracking. Type 441 outperforms Type 409 in both oxidation and corrosion resistance and typical applications include automotive manifolds and exhaust system components. The high temperature strength of Type 441 exceeds that of both Types 439 and 409 stainless steels.


    Chemical Composition
    Chemical Composition (wt%) limits as specified in ASTM A240*

    Element441
    Carbon0.030
    Chromium17.5-19.5
    Nickel1.00
    Manganese1.00
    Silicon1.00
    Nitrogen0.030
    Phosphorus0.040
    Sulfur0.030
    Titanium0.1-0.5
    Niobium0.3 + (9 x C) min
    0.90 max
    * Maximum, unless range is indicated

    Mechanical Properties
    Mechanical property requirements for annealed product as specified in ASTM A240

    Property441
    Yield Strength, min. (ksi)35
    Tensile Strength, min. (ksi)60
    Elongation, min. (%)20
    Hardness, max. (Rb)90

    Physical Properties
    Physical properties for Type 441 stainless steel

    Property441
    Density, lb/in30.278
    Modulus of Elasticity, psi29.0 x 106
    Coefficient of Thermal Expansion, 68-212˚F, /˚F5.7 x 10-6
    Thermal Conductivity, Btu/ft hr ˚F12.1
    Specific Heat, Btu/lb ˚F0.11
    Electrical Resistivity, Microohm-in23.1
