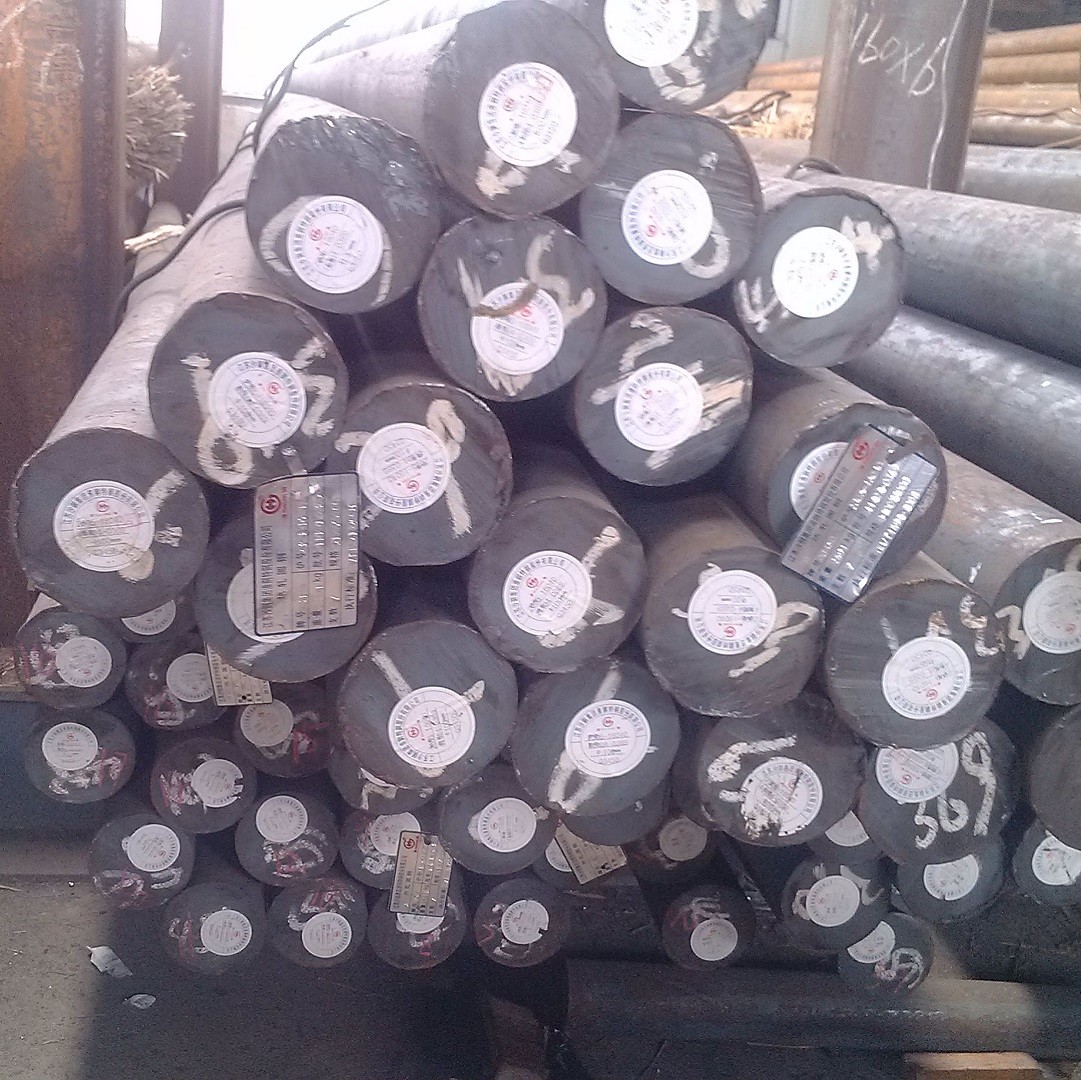

EN 1.8550 (34CrAlNi7-10) Nitriding Steel Rod / Nitriding Steel
Round Bar Diameter 10 - 350mm
Products Specification
| Products Name | EN 1.8550 (34CrAlNi7-10)Alloy Steel Round Bar |
| Diameter | 10 - 300mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade | Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov, 15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo, 40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |
Regular Standard Size of our 34CrAlMo7-10 Round Bar in Stock
| Standard Diameter | 10 12 15 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105
110 120 130 140 150 160 180 200 210 220 230 250 270 300 |
EN 1.8550 (34CrAlNi7-10) Nitriding Steel
EN 1.8550 steel is an alloy steel formulated for primary forming
into wrought products. Cited properties are appropriate for the
quenched and tempered condition. 1.8550 is the EN numeric
designation for this material. 34CrAlNi7-10 is the EN chemical
designation.
It has a moderately low melting temperature among EN wrought alloy
steels. In addition, it has a moderately high electrical
conductivity and a moderately low thermal conductivity.
The graph bars on the material properties cards below compare EN
1.8550 steel to: EN wrought alloy steels (top), all iron alloys
(middle), and the entire database (bottom). A full bar means this
is the highest value in the relevant set. A half-full bar means
it's 50% of the highest, and so on.
1.8550 is intended for work at elevated temperatures in an
environment that requires high sliding properties, corrosion,
temperature, abrasion, and fatigue resistance. Steel with the
addition of Nickel and Aluminum used in the energy, machinery, and
automotive industries for large cross-sections elements in the heat
treated condition. The products are used in the manufacture of
screws, rods, cylinders, pistons, gears, extruders, and rings,
which do not require welding.
Heat treatment of 34CrAlNi7-10, 1.8550:
Softening annealing at a temperature of 650 – 700 ℃
Hardening at 870 – 930 ℃ for at least half an hour with cooling in
water or oil Tempering at 580 – 700℃ for a minimum of 700 hour
Nitriding at a temperature of 480 – 570℃
Forming Option
1 Hot rolling process
2 Hot Forging: Electro-hydraulic; High-speed-hydraulic;
Oil-hydraulic; Precision-forging
Heat-treatment Option
1 +A: Annealed (full/soft/spheroidizing)
2 +N: Normalized
3 +NT: Normalized and tempered
4 +QT: Quenched and tempered (water/oil)
Surface Option
1 Black Surface
2 Grounded: Bright but rough ; Not precision
3 Machining for plate: Bright and precision; Little turning scar
4 Peeled/Turned: Bright and precision; Little turning scar
5 Polished: Very Bright and precision size; Not turning scar
Other Services
1 Cutting: Small pieces
2 CNC Machine: Produce as your drawing
3 Package: Bare/Nylon/Canvas/Wooden
4 Payment:T/T, L/C, O/A(request credit)
5 Transport:FOB/CFR/CIF/DDU/DDP (train/ship/Air)
Mill test certificate
EN 10204/3.1 with all relevant data reg. chem. composition, mech.
properties and results of testing.
