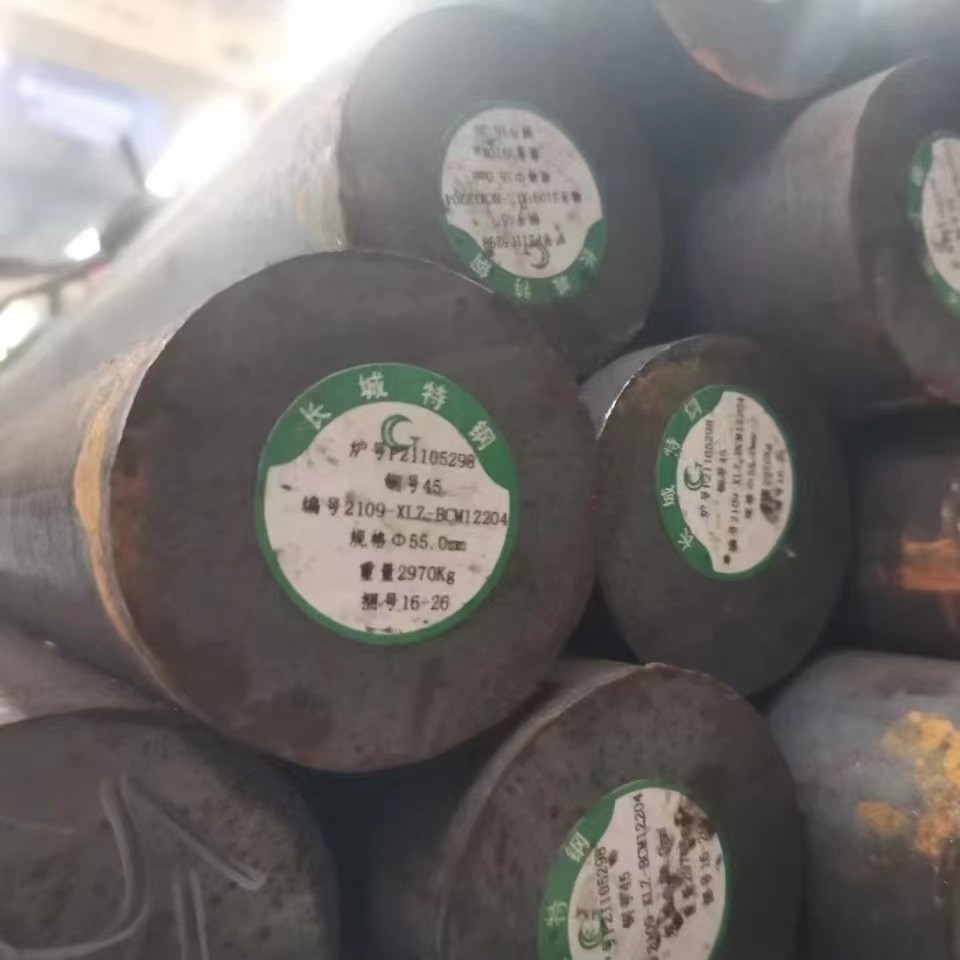

    EN 1.7131 Steel 16MnCr5 Alloy Steel Round Bar ASTM EN DIN Standard With EN 10204-3.1 Certificate

    Ask Lasest Price
    Brand Name : DELTA
    Model Number : EN 1.7131 / 16MnCr5
    Certification : ISO
    Price : 618-877USD/Ton
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    MOQ : 1 Ton
    • Product Details
    • Company Profile

    EN 1.7131 Steel 16MnCr5 Alloy Steel Round Bar ASTM EN DIN Standard With EN 10204-3.1 Certificate

    EN 1.7131 Steel 16MnCr5 Alloy Steel Round Bar ASTM EN DIN Standard With EN 10204-3.1 Certificate

    Products Specification


    Products Name

    1.7131 16MnCr5 Alloy Steel Round Bar

    Diameter10 - 320mm
    Length6m or custom cutting any length as request
    TypeHot Rolled
    BrandBAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc
    MOQ1 Ton
    Loading PortShanghai Port
    Packingpacking by steel wire rope
    Deliver time5 - 7 days for stock materials
    Other Grade

    Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov,

    15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo,

    40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo

    StandardASTM GB EN DIN
    ApplicationStructure and Industrial

    Regular Standard Size of our 1.7131/16MnCr5 Round Bar in Stock


    Standard Diameter10 12 15 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 180 200 210 220 230 250 270 300

    Other Alloy Steel Round Bar We Can Supply:


    40CrNiMoA,4340,40CrNi2Mo,34CrNiMo6,17CrNiMo6,20CrNiMoA,8620H,35CrMo,Ⅴ40,20CrMnMo,20MnCr5,30CrNiMo8,18CrNiMo7

    EN 1.7131 Steel 16MnCr5 Material

    EN 1.7131 steel (16MnCr5 material) is an European standard carburized steel (case hardening steel) with good hardenability and machinability. For larger cross-section parts, high surface hardness and wear resistance can be obtained after heat treatment, and low-temperature impact toughness is also high. For specification and datasheet, please see the tables below.

    16MnCr5 steel is generally used after carburizing and quenching, and is mainly used for manufacturing gears, worms, sealing bushings and other components.


    The following tables show material 16MnCr5 datasheet and specification including chemical composition, mechanical properties, etc.

    (DIN EN 1.7131 Material) 16MnCr5 Steel Chemical Composition

    The following table shows chemical composition of 16MnCr5 material (1.7131 steel).

    Chemical Composition %
    StandardSteel Name (Steel Number)CSi ≤MnP ≤SCr
    EN 1008416MnCr5 (1.7131)0.14-0.190.401.00-1.300.025≤ 0.0350.80-1.10
    EN 1008416MnCrS5 (1.7139)0.14-0.190.401.00-1.300.0250.020-0.0400.80-1.10

    Mechanical Properties of 1.7131 Steel (16MnCr5 Material)

    1.7131 material, 16MnCr5 steel Brinell hardness

    • Soft annealed: ≤ 207 HBW
    • Treated to hardness: 156-207 HBW
    • Treated to ferrite-pearlite structure and hardness: 140-187 HBW
    • Normalized: 138-187 HBW

    EN 1.7131, 16MnCr5 Tensile strength (after hardening and tempering at 200 °C)

    • Dia. ≤ 16mm: Min. 1000 MPa
    • 16 < Dia. ≤ 40mm: Min. 800 Mpa
    • 40 < Dia. ≤ 100mm: Min. 600 Mpa

    Heat Treatment Specification of 16MnCr5 (1.7131 Steel)

    • End quench test Austenitizing temperature: 870℃ (30-35 minutes)
    • Carburizing temperature: 880-980 ℃
    • Core-hardening temperature: 860-900 ℃
    • Case-hardening temperature: 780-820 ℃
    • Tempering: 150 – 200 ℃ (≥ 1 hour)

    Equivalent Grade

    EN 1.7131 material (16MnCr5 steel) equivalent to ISO, US ASTM AISI SAE, Japanese JIS and Chinese GB standard. (For reference)

    16MnCr5 steel equivalent
    EuropeanISOUSAJapanChina
    StandardGrade (Steel Number)StandardGradeStandardGrade (a)StandardGrade (b)StandardGrade
    EN 1008416MnCr5 (1.7131)ISO 683-1116MnCr5AISI SAE;
    ASTM A29/A29M
    5115JIS G4053SCr415GB/T 521616CrMnH
