AISI316L EN 1.4404 Stainless Steel Checkered Plate 0.6 - 8.0mm
Stainless Chequered Sheet
| Item | Stainless Steel Checker Plate/Stainless Steel Chequered Plate |
| Raw Material | Stainless steel sheet (hot rolled and cold rolled) |
| Grades | 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410,
410S, 420, 430, 904L, etc. |
| Thickness | 0.6mm-10mm |
| Stock Thickness | 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm,
5mm, 5.5mm, 6mm, 7mm, 8mm,10mm |
| Width | 600mm – 1,800mm |
| Pattern | Chequered pattern, diamond pattern, lentils pattern, leaves
pattern, etc. |
| Finish | 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed,
etc. |
| Package | Standard export package |
Descroption Key words:
201/202 ,304 316 ,316L Stainless Steel Checkered Plate , Stainless
Steel Embossed Plate, 4*8 FT For Anti-Slip Upstairs, Threaded
Stainless Steel Sheet, Stainless Steel Deck plate, Stainless Steel
Anti-Slip plate,Hot Rolled Checkered Sheet 304 304L ,316L Dimpled
Stainless Steel Plate.304 Stainless steel sheet, 304 Stainless
Steel Plate, Grade
201/304/316L/310S/409/2205 ect, Decorative sheet, Structure Steel
sheet,Hot Rolled sheet, Cold Rolled sheet,Anti-Corrision Steel
sheet, Anti-Rust stainless steel sheet. 304 Stainless Steel Plate,
304 Sheets and Coils in Hot Rolled (HR) and Cold Rolled (CR)
Conditions No.1 Finish, No.1 Finish, No.2B Finish, No. 8 Finish, BA
Finish (Bright Annealed), Satin Finish, Hairline Finish.
Categories:
Stainless Steel 304 Sheet, 304 Stainless Steel Plates, Steel Sheets
Tags: 304 SS sheet 2B Finish, 8K Finish, Dealers, Distributors,
Exporters, China Stainless, Manufacturer, Mirror Finish Sheets,
No.1 Finish, No.4 Finish, No.8 Finish, Stainless Steel 304 Sheets,
Stainless Steel 304 Sheets, 201 Stainless Steel Sheet Suppliers,304
Stainless Steel Sheets, 304 Stainless Steel Sheets, 304 Stainless
Steel Plate Suppliers in China.
Applications:
Stainless steel Checker Plate/anti-skid plate refers to the steel
plate with convex or concave pattern on the surface. The pattern of
the checkered plate is in the shape of a lentil, a rhombus, a round
bean, and an oblate mixed shape. The lentil shape is more common in
the market. Stainless steel checker plate factory, 304/316
stainless steel checker plate/stainless steel anti-skid plate has
the advantages of beautiful appearance, anti-skid, improved
performance and saving steel. Widely used in transportation,
construction, decoration, surrounding floor equipment, machinery,
ship-building and other fields.
STAINLESS STEEL CHECKERED PLATE STOCK ALSO SEARCH FOR
Stainless steel Checkered Plate trader, 316 stainless steel
Checkered Plate astm, SS Checkered Plate cutter, Checkered Plate
Sheet,cutting Checkered Plate,Checkered Plate 2mm sheet,weight of
stainless steel Checkered Plate,weight of stainless steel
plate,stainless steel Checkered Plate for sale,stainless steel
Checkered Plate,Stainless Steel Checkered Plate Suppliers,stainless
steel Checkered Plate grades,stainless steel Checkered Plate hs
code,stainless steel sheet weight chart China,stainless steel sheet
metric,stainless steel sheet properties,stainless steel plate
properties, stainless steel sheet supplier in china, exporter of
stainless steel Sheet ,304 stainless steel Checkered Plate , 2205
Checkered Plate stainless steel Checkered Plate distributor, 316L
stainless steel Checkered Plate manufacturer in china, Checkered
Plate stockholder in China, 304 Stainless Steel Checkered Plate
Suppliers, Stainless Steel Checkered Plate exporter.
Chemical Composition of Stainless Steel Checkered Plate
According to the Stainless Steel Plate Manufacturers, the
composition include a combination of Carbon, Manganese, Phosphorus,
Sulfur, Silicon, Nickel, Nitrogen, and 16-18% Chromium.
| Grade | C (Max) | Mn (Max) | P (Max) | S (Max) | Si (Max) | Cr | Ni | Mo | Nitrogen (Max) | Cu/ Others |
| 301 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | – | 0.10 | – |
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 10.50 | – | 0.10 | – |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.50 | 24.00- 26.00 | 19.00 – 22.00 | – | – | – |
| 316 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| 316L | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| 321 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 17.00 – 19.00 | 9.00 – 12.00 | – | 0.10 | Ti5 ( C + N ) Min or 0.70 max |
| 409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.00 | 10.50 – 11.75 | 0.50 | – | – | Ti= 6x (C+ N ) Min or 0.70 Max |
| 410 | 0.15 | 1.00 | 0.040 | 0.030 | 1.00 | 11.50- 13.50 | 0.75 | – | – | – |

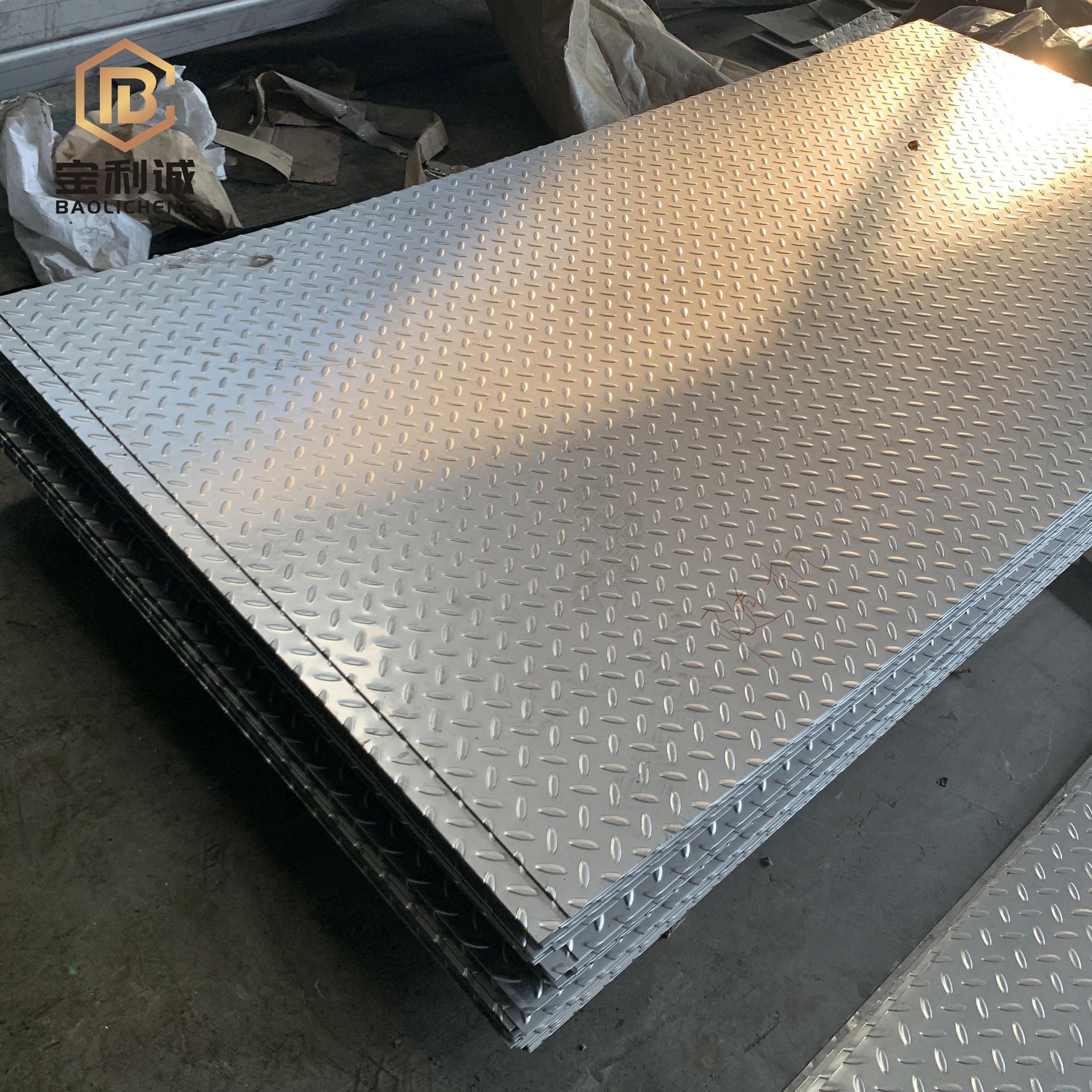

Products Show
