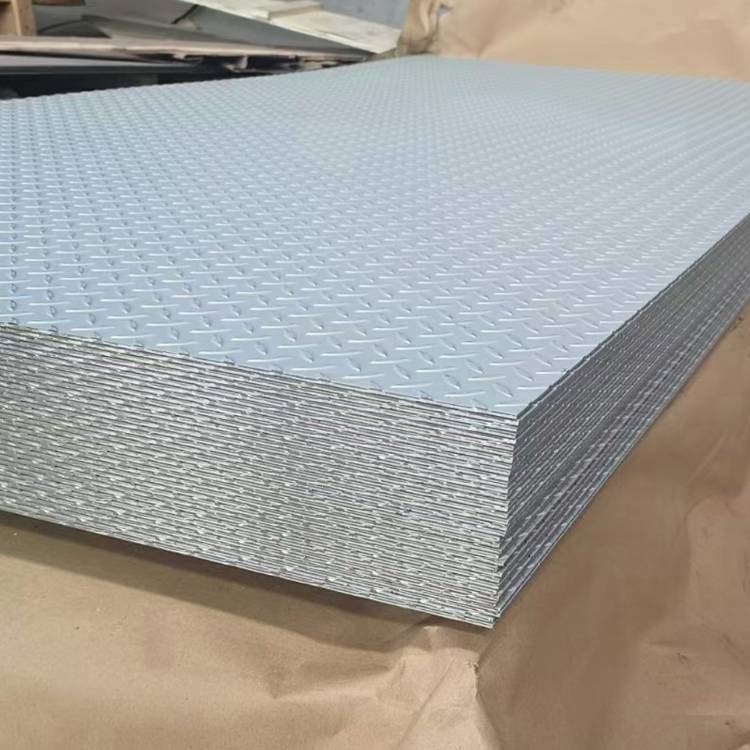

Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor

Ask Lasest Price
Brand Name :	DELTA
Model Number :	304 316L
Certification :	ISO
Price :	2800 -3200 USD/Ton
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10 Ton per week
Delivery Time :	5 - 12 days based on the quantity
MOQ :	500 kgs

Add to Cart

Product Details
Company Profile

Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor

Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor

More Informations of our Products

Item	Stainless Steel Checker Plate/Stainless Steel Chequered Plate
Raw Material	Stainless steel sheet (hot rolled and cold rolled)
Grades	201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc.
Thickness	0.6mm-10mm
Stock Thickness	0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm
Width	600mm – 1,800mm
Pattern	Chequered pattern, diamond pattern, lentils pattern, leaves pattern, etc.
Finish	2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc.
Package	Standard export package

Stainless Steel Chequered Plate Supplier, Stockist Of Stainless Steel Chequer Sheet, 304 Stainless Steel Tread Plate in Mumbai, SS Chequered Sheet, Jindal Stainless Diamond Plate, SS Checker Sheet, Price List Chequered Steel Plate, 6mm Chequered Plate Price, Chequered Steel Plate in KG, SS Tear Plate Dealer

Stainless Steel Checkered Plate Manufacturers, Polished Stainless Steel Checkered Plate, Supplier of SS Checker Plate, Checkered Sheet Price, Stainless Diamond Chequer Plate

Stainless Steel Chequered Sheet Chemical Composition

GRADE	C	MN	P	S	SI	CR	N	NI	FE
SS CHEQUERED 304 PLATES	0.07max	2.0max	0.045max	0.03max	0.75max	min: 18.0 max: 20.0	-	min: 8.0 max: 10.5	-
SS CHEQUERED 304L SHEETS	0.03max	2.0max	0.045max	0.03max	0.75max	min: 18.0 max: 20.0	0.10 max	min: 8.0 max: 12.0	-
SS CHEQUERED 304H PLATE	min: 18.0 max:20.0	min: 8.0 max: 10.5	0.75 max	2.0 max	min: 0.04 max:0.10	0.045 max	0.10 max	0.03 max	-
SS CHECKERED 316 SHEETS	MIN	-	-	0	-	-	10.0	16.0	-
SS CHECKERED 316 SHEETS	MAX	0.08	0.75	0.045	2.0	0.03	14.0	18.0	0.10
SS CHECKER 316L PLATES	MIN	-	-	-	-	-	10.0	16.0	-
SS CHECKER 316L PLATES	MAX	0.03	0.75	0.045	2.0	0.03	14.0	18.0	0.10
SS CHEQUERED 316H SHEET	MIN	0.04	0	-	0.04	-	10.0	16.0	-
SS CHEQUERED 316H SHEET	MAX	0.10	0.75	0.045	0.10	0.03	14.0	18.0	-

Stainless Steel Checkered Plate Mechanical Properties

Grade	Density	Yield Strength (0.2%Offset)	Tensile Strength	Melting Point	Elongation
Stainless Steel 304 / 304L Checkered Plate	8.0 g/cm3	Psi 30000, MPa 205	Psi 75000, MPa 515	1400 °C (2550 °F)	35 %
Stainless Steel 304H Checkered Sheet	8.0 g/cm3	Psi 30000 , MPa 205	Psi 75000 , MPa 515	1400 °C (2550 °F)	40 %
Stainless Steel 310 Checker Plate	7.9 g/cm3	Psi 30000 , MPa 205	Psi 75000 , MPa 515	1402 °C (2555 °F)	40 %
Stainless Steel 316 Checkered Sheet	8.0 g/cm3	Psi 30000 , MPa 205	Psi 75000 , MPa 515	1400 °C (2550 °F)	35 %
Stainless Steel 316L Checker Plate	8.0 g/cm3	Psi 30000 , MPa 205	Psi 75000 , MPa 515	1399 °C (2550 °F)	35 %
Stainless Steel 317 Checker Sheets	7.9 g/cm3	Psi 30000, MPa 205	Psi 75000, MPa 515	1400 °C (2550 °F)	35 %
Stainless Steel 321 Checkered Plates	8.0 g/cm3	Psi 30000, MPa 205	Psi 75000, MPa 515	1457 °C (2650 °F)	35 %
Stainless Steel 347 Checker Sheets	8.0 g/cm3	Psi 30000 , MPa 205	Psi 75000 , MPa 515	1454 °C (2650 °F)	35 %
Stainless Steel 904L Checker Plate	7.95 g/cm3	Psi 32000, MPa 220	Psi 71000, MPa 490	1350 °C (2460 °F)	35 %

Equivalent Grades of 304 SS Chequered Steel Plate

STANDARD	UNS	WERKSTOFF NR.	BS	JIS	EN	GOST
SS 304	S30400	1.4301	304S31	SUS 304	X5CrNi18-10	08Х18Н10
SS 304L	S30403	1.4306 / 1.4307	3304S11	SUS 304L	X2CrNi18-9 / X2CrNi19-11	03Х18Н11
SS 304H	S30409	1.4301	-	-	-	-
SS 310	S31000	1.4841	310S24	SUS 310	X15CrNi25-20	20Ch25N20S2
SS 310S	S31008	1.4845	310S16	SUS 310S	X8CrNi25-21	20Ch23N18
SS 310H	S31009	-	-	-	-	-
SS 316	S31600	1.4401 / 1.4436	316S31 / 316S33	SUS 316	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	-
SS 316L	S31603	1.4404 / 1.4435	316S11 / 316S13	SUS 316L	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	03Ch17N14M3 / 03Ch17N14M2
SS 316H	S31609	1.4401	-	-	-	-
SS 316Ti	S31635	1.4571	320S31	SUS 316Ti	X6CrNiMoTi17-12-2	08Ch17N13M2T
SS 317	S31700	1.4449	-	SUS 317	-	-
SS 317L	S31703	1.4438	-	SUS 317L	X2CrNiMo18-15-4	-
SS 321	S32100	1.4541	-	SUS 321	X6CrNiTi18-10	-
SS 321H	S32109	1.4878	-	SUS 321H	X12CrNiTi18-9	-
SS 347	S34700	1.4550	-	SUS 347	X6CrNiNb18-10	08Ch18N12B
SS 347H	S34709	1.4961	-	SUS 347H	X6CrNiNb18-12	-
SS 904L	N08904	1.4539	904S13	SUS 904L	X1NiCrMoCu25-20-5	STS 317J5L

Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor

Types of Stainless Steel Chequered Sheet

• SS Checkered Sheet
• SS Chequer Sheet
• Stainless Steel Checkered Plate
• 316 SS Chequer Plate
• Stainless Steel Checkered Plate
• Stainless Steel Checker Plate
• 304 Stainless Steel Tread Plate
• SS Diamond Chequer Plate
• Stainless Steel Checkered Sheet
• 304 SS Chequered Plates
• Stainless Steel Tear Plate
• SS Floor Plate in China
• Stainless Steel Diamond Plate
• Stainless Steel Tread Plate
• Stainless Steel Checker Plate
• Stainless Steel Checker Sheet
• Metal Checkered Plate
• Stainless Steel Checker Plate
• 316 Stainless Steel Checkered Sheet
• Stainless Steel Chequer Sheet
• Stainless Steel Checker Sheet
• Stainless Steel Tear Plate
• Stainless Steel Floor Plate
• SS 304 Diamond Chequer Plate
