    ASTM A240/240M-20a AISI347H High Carbon Austenitic Stainless Steel Sheets & Plates

    Ask Lasest Price
    Brand Name : TISCO
    Model Number : 347H
    Certification : ISO
    Price : 3300 - 3480 USD/Ton
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10 Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    ASTM A240/240M-20a AISI347H High Carbon Austenitic Stainless Steel Sheets & Plates

    ASTM A240/240M-20a AISI347H High Carbon Austenitic Stainless Steel Sheets & Plates from TISCO


    Products Specification


    Product Name
    347H Stainless Steel Sheets
    Material Type
    Ferrite stainless steel, magnetic; Austenitic stainless steel, Non-magnetic.


    Grade
    300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
    200series:201,202,202cu,204
    400series:409,409L,410,420,430,431,439,440,441,444
    Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
    Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
    Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
    Technology
    Cold Rolled /Hot Rolled
    Length
    2000/2438/2500/3000/3048 mm
    Width
    1000/1219/1250/1500 mm
    Thickness
    0.4-3mm(cold Rolled), 3-200mm(hot Rolled)
    Surface
    BA, 2B, NO.1,2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed,perforated etc.
    Leveling: improve flatness, esp. for items with high flatness request.
    Skin-Pass: improve flatness, higher brightness
    Other Choices
    Cutting:Laser cutting, help the customer to cut the required size
    Protection
    1. Inter paper available
    2. PVC protecting film available
    Price Item
    FOB,CIF,DDU,FCA,EXW ,.etc
    Quality Assurance
    1.Provide MTC (Mill Test).
    2.Accept the inspection by the third party agent

    347 stainless steel is a columbium stabilized austenitic stainless steel grade with good general corrosion resistance and somewhat better resistance in strong oxidizing conditions than 321 (UNS S32100). It has excellent resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 800 – 1500°F (427 – 816°C). The alloy has good oxidation resistance and creep strength to 1500°F (816°C). It also possesses good low-temperature toughness.

    347H stainless steel is the higher carbon (0.04 – 0.10) version of the alloy. It was developed for enhanced creep resistance and higher strength at temperatures above 1000°F (537°C).

    347/347H Stainless Steel Chemical Properties

    CCrMnNiPSSiCb/Ta
    3470.08 MaxMin: 17.0
    Max: 20.0
    2.0 MaxMin: 9.0
    Max: 13.0
    0.04 Max0.30
    Max
    0.75
    Max
    Min:10x C
    Max: 1.0
    347HMin: 0.04
    Max: 0.10
    Min: 17.0
    Max: 20.0
    2.0 MaxMin: 9.0
    Max: 13.0
    0.03 Max0.30
    Max
    0.75
    Max
    Min:10x C
    Max: 1.0

    347/347H Stainless Steel Mechanical Properties

    GradeTensile Strength Ksi (MPa) MinYield Strength 0.2% Ksi Offset Ksi (MPa) MinElongation (% In 50mm) MinHardness (Brinell) MAXHardness (Rockwell B) MAX
    347/347H75
    (515)
    30
    (205)
    4020195

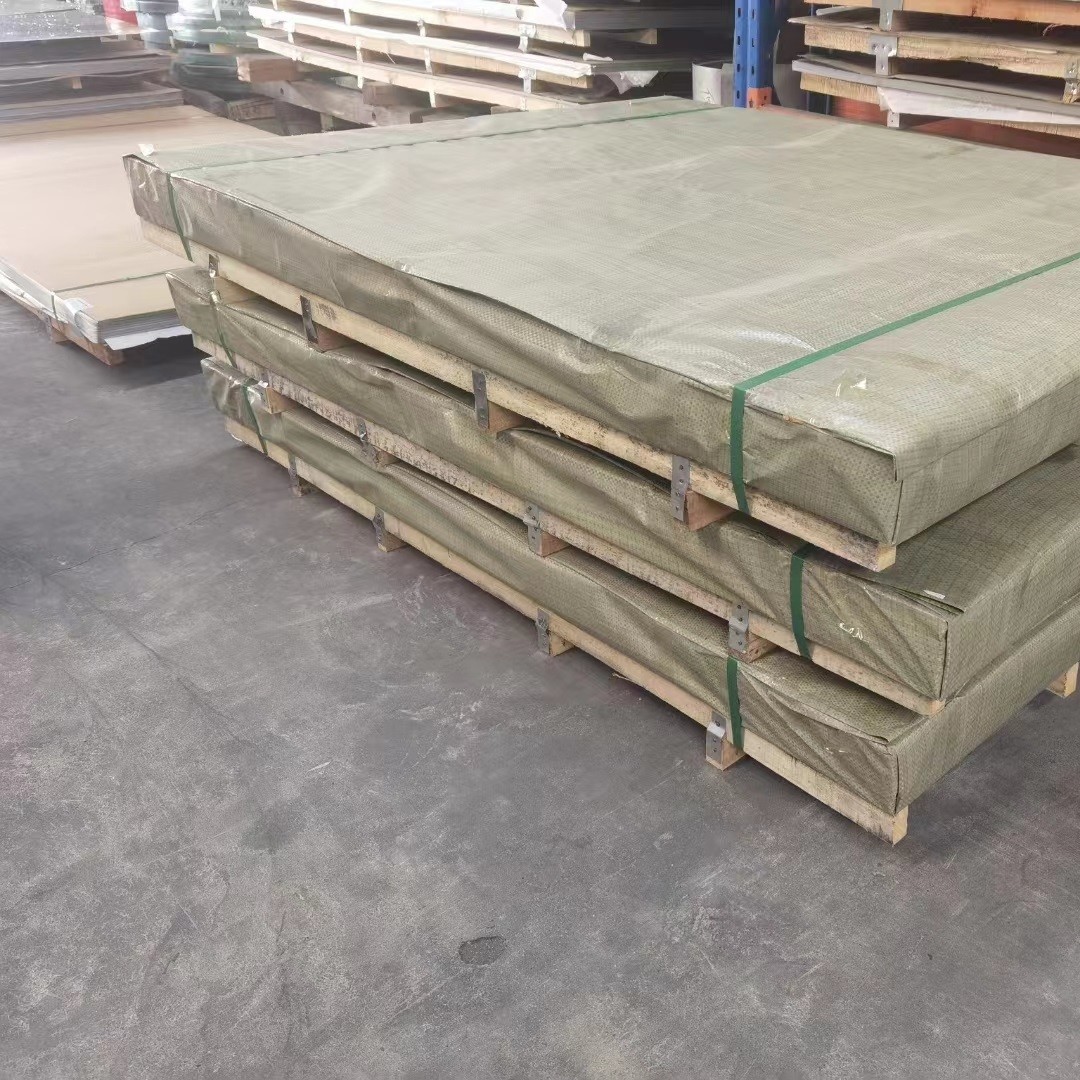

    347H Stainless Steel Sheets and Plates in Stock


    Cold Rolled 347H Stainlesss Steel Sheets
    0.3*1219*2438mm0.4*1219*2438mm0.5*1219*2438mm0.6*1219*2438mm
    0.8*1219*2438mm1.0*1219*2438mm1.2*1219*2438mm1.5*1219*2438mm
    2.0*1219*2438mm2.5*1219*2438mm3.0*1219*2438mm
    Hot Rolled 347H Stainless Steel Plates
    3.0*1500*6000mm4.0*1500*6000mm5.0*1500*6000mm6.0*1500*6000mm
    8.0*1500*6000mm10.0*1500*6000mm12.0*1500*6000mm14.0*1500*6000mm
    16.0*1500*6000mm18.0*1500*6000mm20.0*1500*6000mm25.0*1500*6000mm
    30.0*1500*6000mm35.0*1500*6000mm40.0*1500*6000mm45.0*1500*6000mm

    Chemical composition and mechanical properties of stainless steel
    Grade
    Chemical Composition (%)
    Mechanieal Performece
    C
    Si
    Mn
    P
    S
    Ni
    Cr
    Mo
    Hardness
    201
    ≤0.15
    ≤1.00
    5.5/7.5
    ≤0.060
    ≤0.030
    3.5/5.5
    16.0/18.0
    -
    HB≤241,HRB≤100, HV≤240
    304
    ≤0.08
    ≤1.00
    ≤2.00
    ≤0.045
    ≤0.03
    8.0/11.0
    18.00/20.00
    -
    HB≤187,HRB≤90,HV≤200
    316
    ≤0.08
    ≤1.00
    ≤2.00
    ≤0.045
    ≤0.03
    10.00/14.00
    16.0/18.0
    2.00/3.00
    HB≤187, HRB≤90 HV≤200
    316L
    ≤0.03
    ≤1.00
    ≤2.00
    ≤0.045
    ≤0.03
    10.00/14.00
    16.0/18.0
    2.00/3.00
    HB≤187, HRB≤90 HV≤200
    410
    ≤0.15
    ≤1.00
    ≤1.25
    ≤0.060
    ≤0.030
    ≤0.060
    11.5/13.5
    -
    HB≤183, HRB≤88 HV≤200
    430
    ≤0.12
    ≤1.00
    ≤1.25
    ≤0.040
    ≤0.03
    -
    16.00/18.00
    -
    HB≤183, HRB≤88 HV≤200
