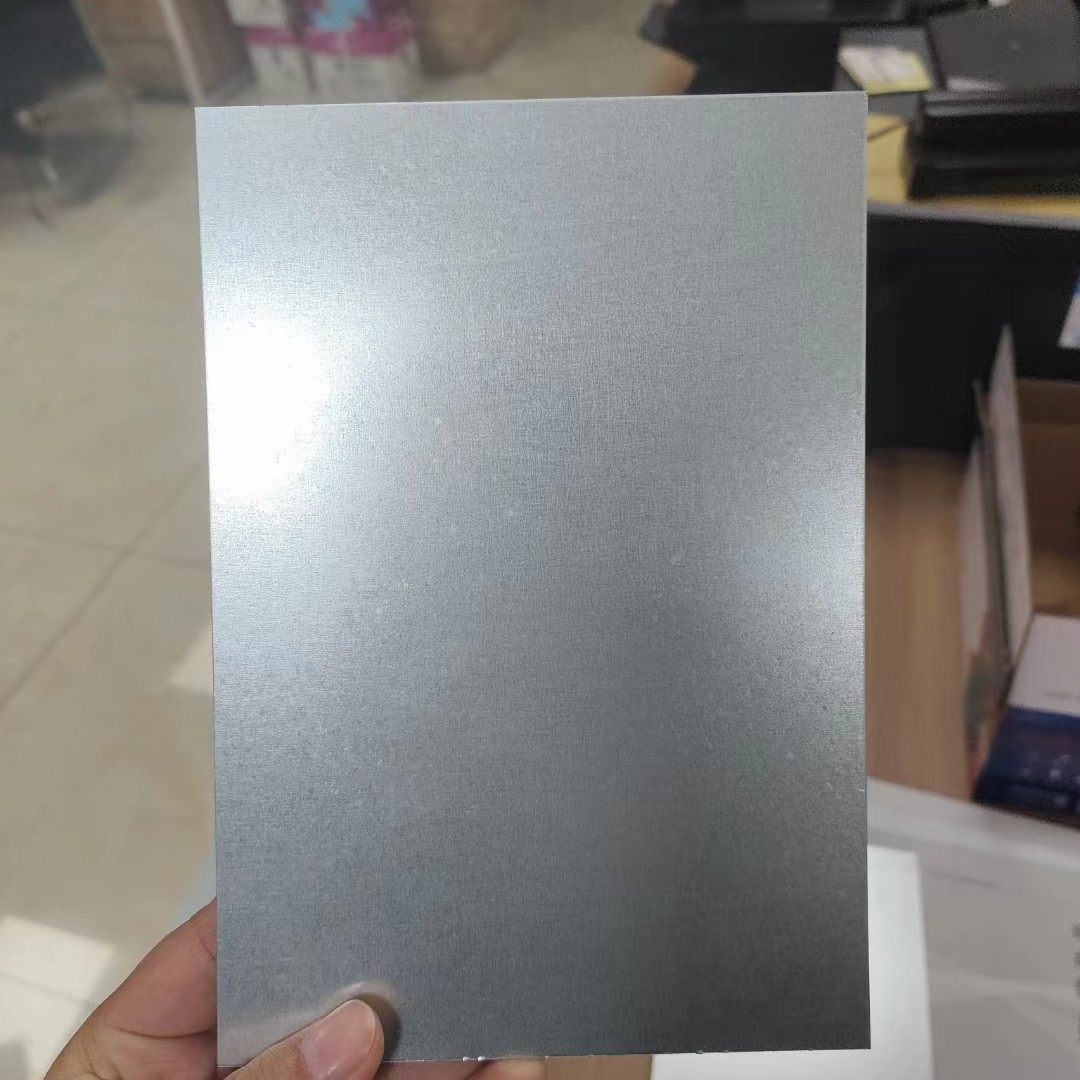

S550GD+Z hot dip galvanized plates(coils) are featured with strong
coating adhesiveness, high erosion-resistance, accurately
controlled zinc coating thickness, high size precision, flat
profile and good mechanical, processing and welding performance.
They can be used for making outside and inside automotive plates,
structural parts and reinforcements.
S550GD+Z hot dip galvanized automotive steel size:
Nominal thickness: 0.30mm~3.0mm, nominal width: 800mm~1830mm
Note: nominal thickness of a plate/strip is sum of base plate
thickness and coating thickness.
S550GD+Z hot dip galvanized automotive steel mechanical
performances and coating adhesiveness:
Steel grade | Mechanical performances | Coating adhesiveness |
| Yield strength MPa ≥ | Tensile strength MPa ≥ | After breakage percent elongation % ≥ | Bending center diameter ( a=plate thickness) |
| L0=80mm, b=20mm |
| Nominal thickness mm |
| ≤0.7 | >0.7 |
| S550GD+Z | 550 | 560 | - | 3 | - |
a.bending center diameter is 4a in case of nominal
thickness>1.5mm.
S550GD+Z hot dip galvanized automotive steel coating weight range:
Coating form | Applicable surface structure | Weight range of following coatings a g/m |
| Zinc coating | Zn-Fe alloy coating |
| Equally coating | Z, X, G, GX, N, R | 40/40~225/225 | 30/30~90/90 |
| Differential coating b | N, R | 30~150(each side) | - |
a. 50 g/m coating weight is equivalent to about 7.1
b. max. differential coating thickness ration is 1:3. |
S550GD+Z hot dip galvanized automotive steel surface treatment:
1 Chromate treatment (L) | Chromate treatment is a treatment with an aim to prevent white
rusts formed on product surfaces during transportation and storage. |
| 2 Oiling (Y) | Oiling is to prevent white rusts formed on product surfaces during
transportation and storage. |
| 3 Chromate treatment + oiling (LY) | This treatment with oiling after surface chromate treatment is to
further avoid the forming of white rusts. |
S550GD+Z hot dip galvanized automotive steel surface quality:
Code No. | Features |
| FB(O3) | It is allowed for the existence of small erosion spots, dark spots,
strip marks, minor chromate treatment defects and small zinc
particles. |
| FC(O4) | No erosion spot is allowed. However, it is allowed for the
existence of light impression, scratches, zinc flow ripple marks,
minor chromate treatment defects in small range, while the other
side must reach FB requirements at least. |
| FD(O5) | One side of relatively good quality must further restrict on
defects, namely appearance quality after painting is not affected,
and the other side must FB requirements at least. |
