TU1 Copper Flat Bar C10200 Oxygen-free Copper Flat Bar &Round Bar

Ask Lasest Price
Brand Name :	DELTA
Model Number :	C10200 / TU1
Certification :	ISO
Price :	8 - 9 USD/Kg
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	15 Tons per month
Delivery Time :	5 - 10 days

Add to Cart

Product Details
Company Profile

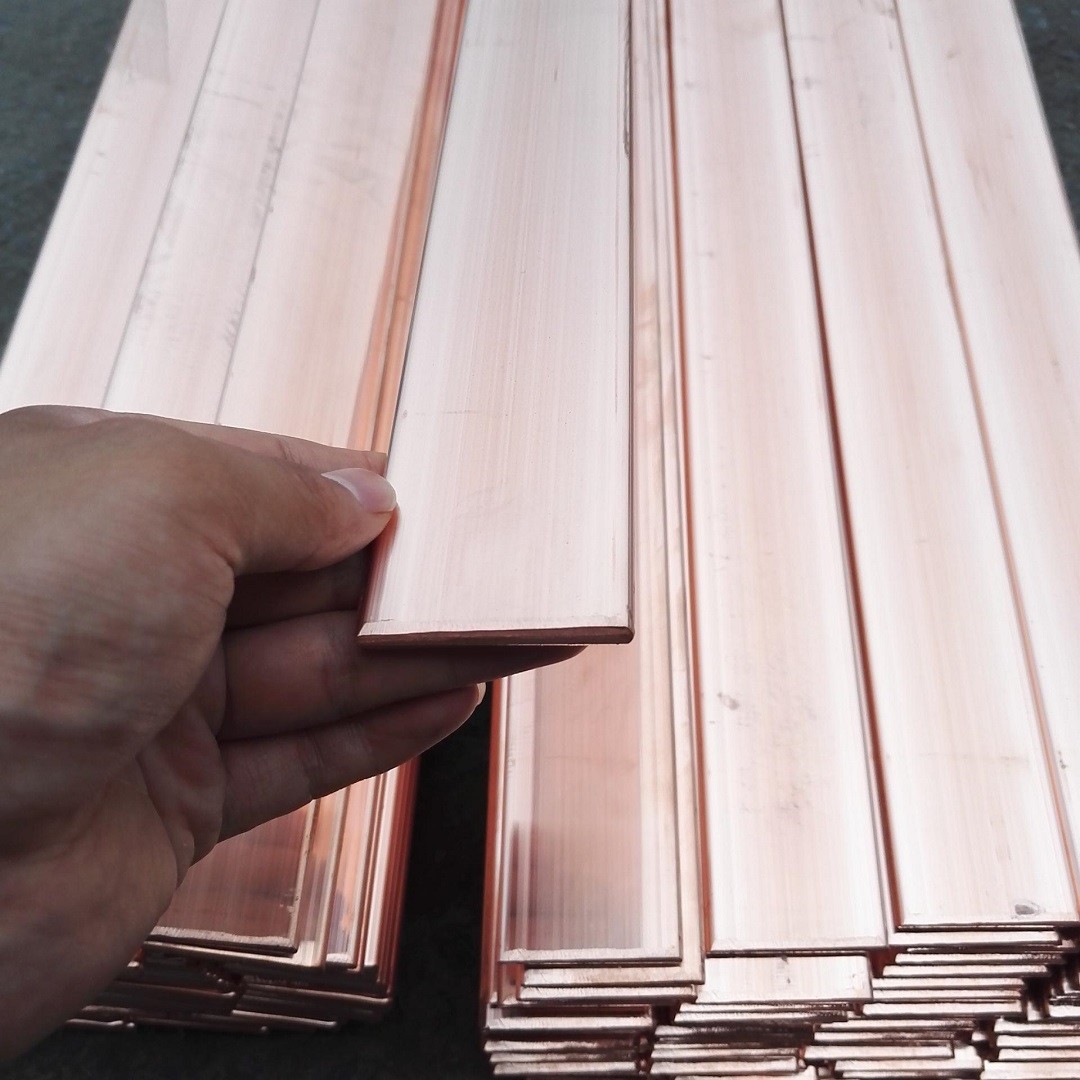

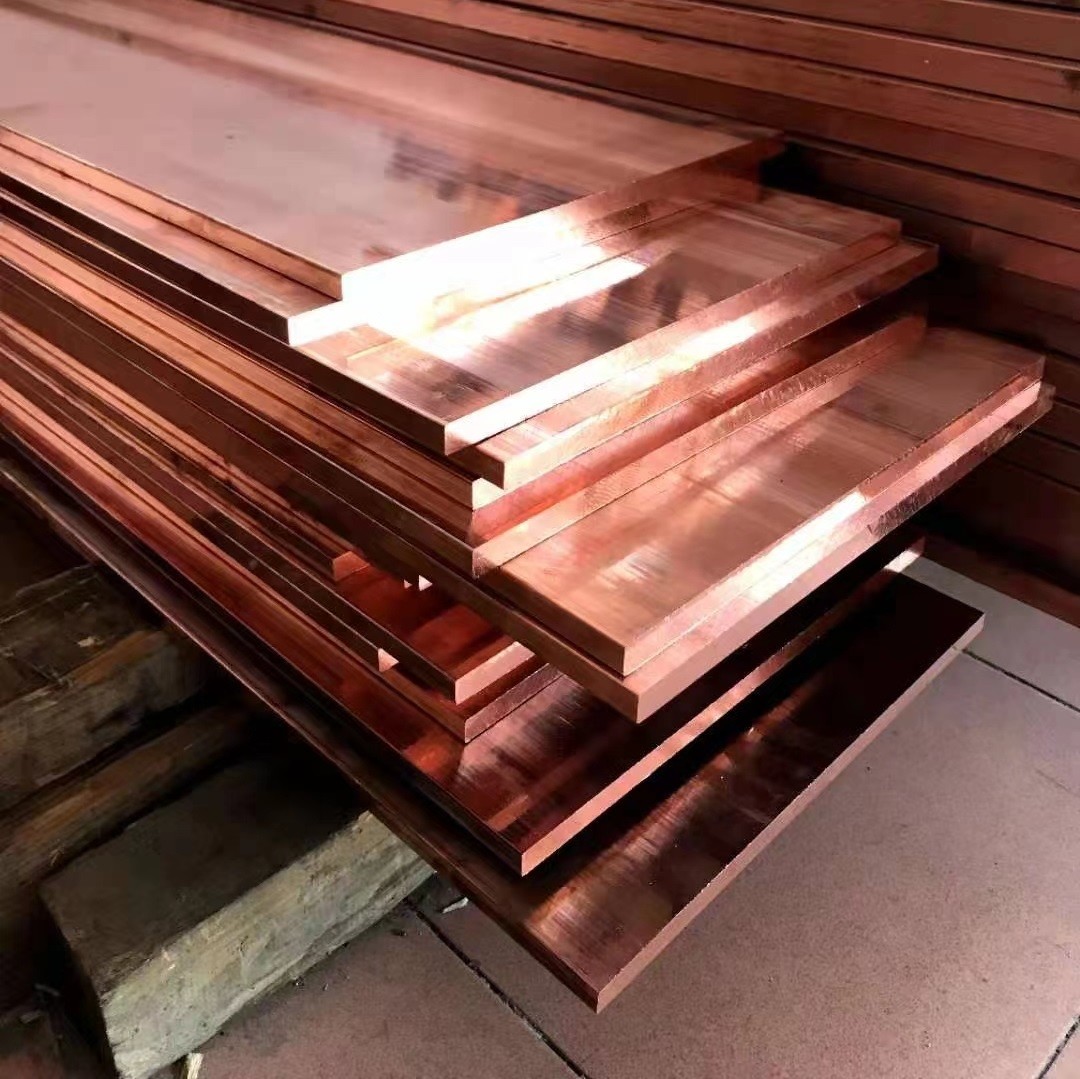

TU1 Copper Flat Bar C10200 Oxygen-free Copper Flat Bar &Round Bar

TU1 Copper Flat Bar C10200 Oxygen-free Copper Flat Bar &Round Bar

Product name	Copper flat bar
Copper and copper alloy grade	C11000,C10100,C12200 H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
Size	Round Bar: 6mm - 200mm
	Square Bar: 4x4mm - 200x200mm
	Hex Bar: 8x8mm - 100x100mm
	Flat Bar: 20x2mm - 200x20mm
Length	2m,3m,5.8m,6m, or as required.
Processing	Extrusion/cold drawn
Temper	1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface finish	Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.

Oxygen-Free Copper C10200

Oxygen Free Copper C10200 is an ideal material for applications in which extremely high electrical conductivity and resistance to hydrogen embrittlement are vital. In application, where glass-to-metal seals are required, this material provides the added advantage of developing an adherent, non-scaling oxide at elevated temperatures. It is corrosion resistant in normal atmosphere and water. It achieves a minimum 100% IACS conductivity rating.

Oxygen Free Copper C10200 possesses useful qualities such as high ductility & high impact strength, good thermal conductivity, good creep resistance, low volatility in high vacuum condition and can be readily soldered and brazed.

Grade Specification

Copper has a very wide range of applications, covering energy and petrochemical industry, transportation, electronics and electric power industry, machinery and metallurgy industry, and other fields has a pivotal role, the division of each country for copper brand is also the same, my company specializing in the production of various specifications of copper products, cost-effective, large inventories.

China	Germany		Europe		International	US	Japan
GB	DIN		EN		ISO	UNS	JIS
-	Kruzzeichen	Number	Symbol	Number	Symbol	Number	Number
TU2	OF-Cu	2.004	Cu-OFE	CW009A	Cu-OF	C10200	C1020
T2	Se-Cu	2.0065	Cu-ETP	CW004A	Cu-ETP	C11000	C1100
TP2	SF-Cu	2.0090	Cu-DHP	CW024A	Cu-DHP	C12000	C1220

APPLICATIONS

• Electrical & Electronic Conductors

• Superconductor matrixes

• Lead-in Wires & Anodes for Vacuum Tubes

• Vacuum Seals & Glass-to-Metal Seals

• Power Substations

• Coaxial cables

• Microwave Tubes & Rectifiers

• Plasma

TYPICAL CHEMICAL COMPOSITION

Minimum 99.95% Copper

Warehouse Display

Products Show

TU1 Copper Flat Bar C10200 Oxygen-free Copper Flat Bar &Round Bar
