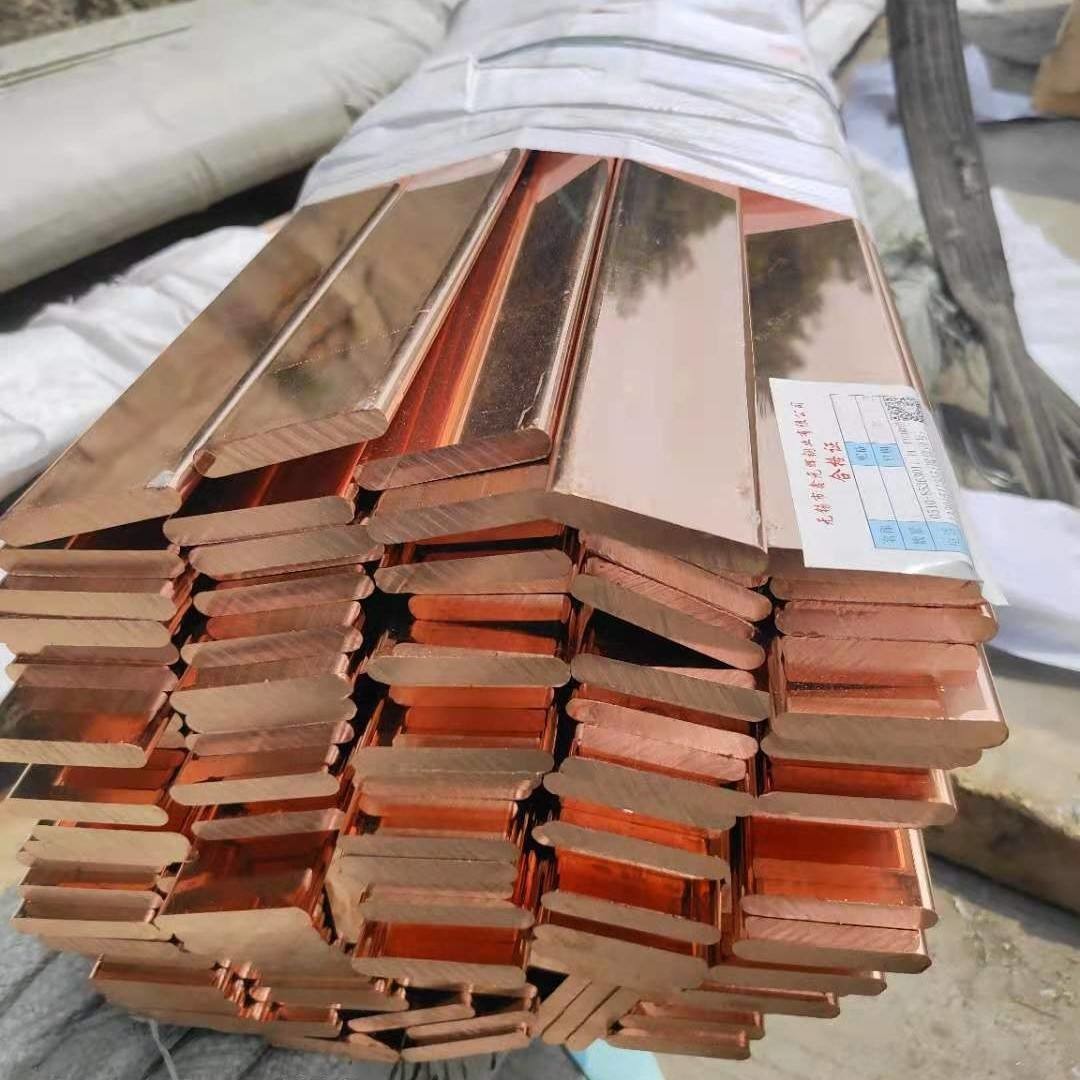

    Red 6m Copper Flat Stock Grade C11000 C1100 CU-ETP T2

    Ask Lasest Price
    Brand Name : DELTA
    Model Number : C11000 C1100 CU-ETP T2
    Certification : ISO
    Price : 8 - 9 USD/Kg
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 15 Tons per month
    Delivery Time : 5 - 10 days
    • Product Details
    • Company Profile

    Red 6m Copper Flat Stock Grade C11000 C1100 CU-ETP T2

    Red Copper Flat Bar Grade C11000 C1100 CU-ETP T2 Copper Flat Plate


    Product name
    Copper flat bar
    Copper and copper alloy grade
    C11000,C10100,C12200
    H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
    Size
    Round Bar: 6mm - 200mm
    Square Bar: 4x4mm - 200x200mm
    Hex Bar: 8x8mm - 100x100mm
    Flat Bar: 20x2mm - 200x20mm
    Length
    2m,3m,5.8m,6m, or as required.
    Processing
    Extrusion/cold drawn
    Temper
    1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
    Surface finish
    Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.

    The major uses of pure, unalloyed copper are based on its high electrical and thermal conductivity as well its good corrosion resistance. Almost all alloying elements are detrimental to the electrical conductivity of copper, making the purity of the metal an important issue. Commercially pure copper is represented by UNS numbers C10100 to C13000. The various grades of unalloyed copper differ in the amount of impurities and therefore do behave differently. Oxygen free coppers are used in applications requiring high conductivity and exceptional ductility.

    UNS C11000 electrolytic tough pitch copper is ductile, has excellence resistance to corrosion, and has a conductivity of 101% IACS. The following datasheet will discuss in detail about UNS C11000 electrolytic tough pitch copper.

    The shape of the Copper flat bar : Square edge , full round edge , radius edge;

    Chemical Composition
    The following table shows the chemical composition of UNS C11000 copper.
    ElementContent (%)
    Cu99.90

    Physical Properties
    The physical properties of UNS C11000 copper are given in the following table.
    PropertiesMetricImperial
    Density8.89 g/cm30.322 lb/in3
    Melting point1065 - 1083C1949F

    Mechanical Properties
    The mechanical properties of UNS C11000 copper are tabulated below.
    PropertiesMetricImperial
    Hardness, Rockwell F (hard temper)80.080.0
    Poisson's ratio0.340.34
    Elastic modulus115 - 117 GPa16969 ksi

    Other Designations
    The designations that are equivalent to the UNS C11000 copper are outlined in the following table.
    ASME SB133ASTM B173ASTM B228ASTM B33ASTM B49ASTM F467
    ASTM B1ASTM B174ASTM B229ASTM B355ASTM B496ASTM F468
    ASTM B101ASTM B187ASTM B246ASTM B370ASTM B506MIL B-20292
    ASTM B116ASTM B188ASTM B272ASTM B447ASTM B556MIL C-12168
    ASTM B124ASTM B189ASTM B283ASTM B451ASTM B638MIL W-6712
    ASTM B133ASTM B2ASTM B286ASTM B47ASTM B694QQ B575
    ASTM B152ASTM B224ASTM B298ASTM B470ASTM B738SAE J461
    ASTM B172ASTM B226ASTM B3ASTM B48ASTM B8SAE J463

    Red 6m Copper Flat Stock Grade C11000 C1100 CU-ETP T2Red 6m Copper Flat Stock Grade C11000 C1100 CU-ETP T2Red 6m Copper Flat Stock Grade C11000 C1100 CU-ETP T2Red 6m Copper Flat Stock Grade C11000 C1100 CU-ETP T2
