C11000 ETP Flat Copper Bar Chemical Composition ASTM Standard

Ask Lasest Price
Brand Name :	DELTA
Model Number :	C11000 C1100 CU-ETP T2
Certification :	ISO
Price :	8 - 9 USD/Kg
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	15 Tons per month
Delivery Time :	5 - 10 days

Add to Cart

Product Details
Company Profile

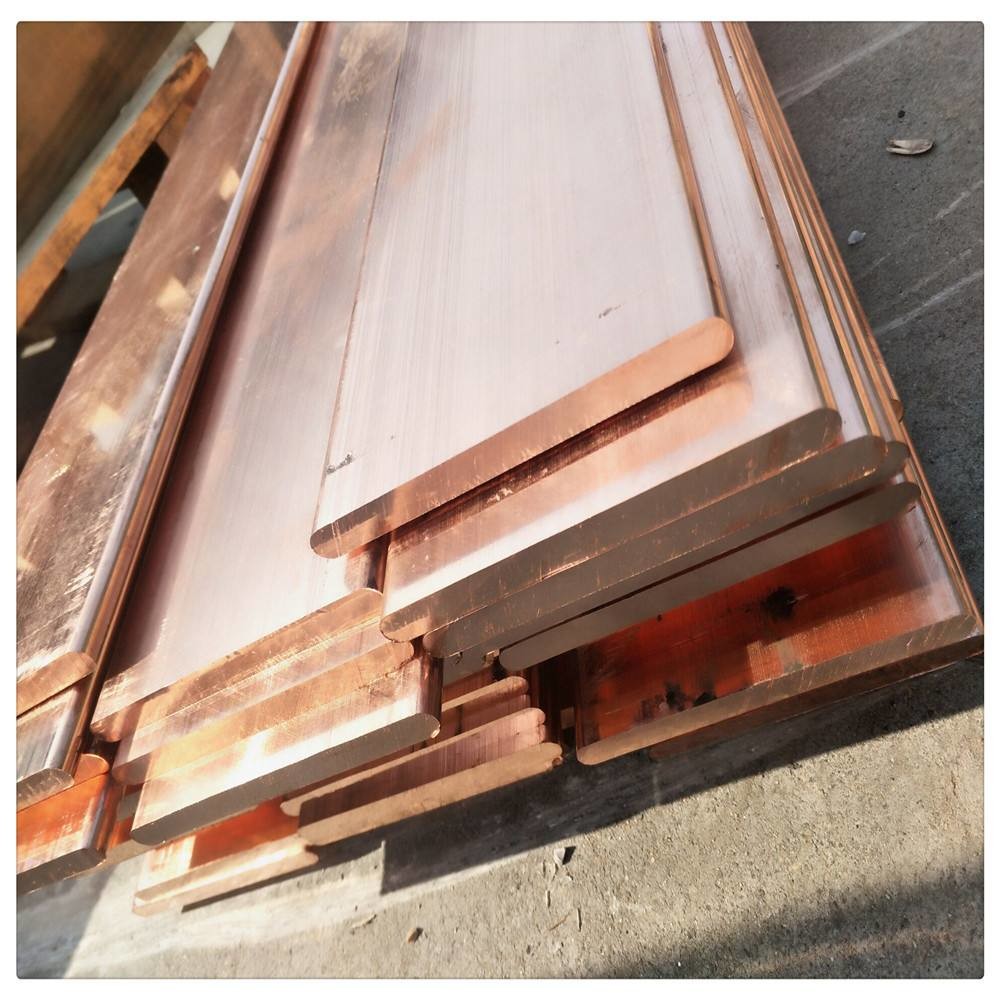

C11000 ETP Flat Copper Bar Chemical Composition ASTM Standard

C11000 ETP Copper Chemical Composition Flat Copper Bar ASTM Standard

Product name	Copper flat bar
Copper and copper alloy grade	C11000,C10100,C12200 H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
Size	Round Bar: 6mm - 200mm
	Square Bar: 4x4mm - 200x200mm
	Hex Bar: 8x8mm - 100x100mm
	Flat Bar: 20x2mm - 200x20mm
Length	2m,3m,5.8m,6m, or as required.
Processing	Extrusion/cold drawn
Temper	1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface finish	Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.

ASTM B124, ASTM B152, ASTM B187, ASTM B370, DIN 2.0060, BS 2870 C101, BS 2874 C101, BS 2875 C101, EN CW004A

We can supply variety of shapes, including sheet, plate, bus bar, square bar, and round rod. C110 copper has the highest electrical conductivity of any metal except silver.

Farmers Copper has the following specs for C110 ETP copper in stock:

ASTM B124
ASTM B152
ASTM B187
ASTM B370
DIN 2.0060
BS 2870 C101
BS 2874 C101
BS 2875 C101
EN CW004A

We can offer material cut to your specifications on our bar saws, shears, precision plate saws, and water jet cut. We service a variety of industries. Please contact one of our knowledgeable sales staff today to help you with your C11000 ETP Copper needs.

C11000 ETP Copper Chemical Properties

(%max., unless shown as range or min.)

	CU(1)	O
Min./Max.	99.90 min	-
Nominal	-	.04

C11000 ETP Copper Physical Properties


Melting Point – Liquidus ⁰F	1981
Melting Point – Solidus ⁰F	1949
Density lb/cu in. at 68⁰F	0.322(1)
Specific Gravity	8.91
Electrical Conductivity % IACS at 68⁰F	101(2)
Thermal Conductivity Btu/sq ft/ft hr/ ⁰F at 68⁰F	226
Coefficient of Thermal Expansion 10-6 per ⁰F (68-212 ⁰F)	9.4
Coefficient of Thermal Expansion 10-6 per ⁰F (68-392 ⁰F)	9.6
Coefficient of Thermal Expansion 10-6 per ⁰F (68-572 ⁰F)	9.8
Specific Heat Capacity Btu/lb/⁰F @ 68 ⁰F	0.092
Modulus of Elasticity in Tension ksi	17000
Modulus of Rigidity ksi	6400

C11000 ETP Copper Fabrication Properties

ALLOY	JOINING TECHNIQUE	SUITABILITY LEVEL
C11000	Soldering	Excellent
	Brazing	Good
	Oxyacetylene Welding	Not Recommended
	Gas Shielded Arc Welding	Fair
	Coated Metal Arc Welding	Not Recommended
	Spot Weld	Not Recommended
	Seam Weld	Not Recommended
	Butt Weld	Good
	Capacity for Being Cold Worked	Excellent
	Capacity for Being Hot Formed	Excellent
	Forgeability Rating	65
	Machinability Rating	20

ASTM Standard Designations for C11000 (ETP) Copper: ASTM B124, ASTM B152, ASTM B187, ASTM B370

C11000 ETP Copper Mechanical Properties

FORM	TEMPER	TENSILE STRENGTH	YS-0.5% EXT (KSI)	ELONGATION (%)	ROCKWELL (B)	ROCKWELL (F)	ROCKWELL (30T)	SHEAR STRENGTH (KSI)	TORSION MODULUS (KSI)	IZOD (ft-lbs)	FATIGUE STRENGTH	TENSILE STRENGTH IN SHEAR	SECTION SIZE (IN)
PLATE SHEET STRIP BUS BAR	H02	42	36	14	40	84	50	26			13		0.04
	H01	38	30	35	25	70		25				25	0.025
	H01	38	30	25	25	70	36	25					0.04
	H00	36	28	40	10	60		25					0.025
	H00	36	28	30	10	60	25	25					0.04
	M20	32	10	50		40		22					0.025
	M20	34	10	45		45		23					0.04
	H10	57	53	4	62	95	64	29					0.04
	H04	50	45	12								28	0.24
	H04	50	45	6	50	90	57	28				28	0.04
	H04	45	40	20	45	85		26					1
	H04	50	45	12	50	90		28					0.025
	OS025	34	11	45		45		23			11		0.04
	OS050	32	10	50		40		22					0.025
	OS050	32	10	45		40		22					0.04
	H08	55	50	4	60	94	63	29			14		0.04
ROUND BAR ROD	M20	32	10	55		40		22					1
	H04	48	44	16	47	87		27			17		1
	H04	45	40	20	45	85		26	6.4	32			2
	H04	55	50	10	60	94		29					0.25
	OS050	32	10	55		40		22					1
SHAPES PIPE	M30	32	10	50		40		22					0.5
	M20	32	10	50		40		22					0.5
	H04	40	32	30	35							26	0.5

C11000 ETP Applications

Copper 110 has an extremely wide range of applications based on its conductivity, corrosion resistance, workability, and beauty. Some common applications of C11000 Copper include:

Electrical
Telecommunications
Architectural
Antimicrobial
