Waterjet Cutting Stainless Steel Plate Grade 304 316L 321 317L 310S
Without Burr
More Specification of our Stainless Steel Plate
| Products | Stainless Steel Plate |
| Thickness | 0.4- 200.0mm |
| Width | 1000mm 1219mm 1500mm 1800mm 2000mm or other width as request |
| Length | 2000mm 2438mm 3000mm 6000mm or other length as request |
| Grade | 201 202 301 304 304L 304H 309S 310S 310H 316L 316Ti 317L 321 347
409L 410 420 430 431 436L 439 441 443 444 2205 2507 904L 600 625
800 825 718 253MA 254SMO Nitronic 60 925 926.etc |
| Service | Laser Cutting,Waterjet Cutting, Surface processing, bending |
| Brand | TISCO BAOSTEEL POSCO LISCO JISCO |
| Standard | ASTM JIS GB DIN EN BS |
| Certificate | ISO MTC C/O F/E |
| Packing | Wooden pallets and waterproof paper |
| Deliver time | 5 - 15 days |
| Loading port | Shanghai Port |
About Our Cutting Processing
Laser Cutting
Laser cut stainless steel (304 series) is our favorite metal for
many projects, including industrial robotics, decorative
applications, and automation machinery. It’s durable, strong, and
easy to work with. If you have a project that needs to stand the
test of time, stainless steel is a great choice.
- Available thicknesses range from 0.3 - 30mm
- Laser cut sheet metal (+/- 0.2mm cutting tolerance)
- 5-7day lead time before shipping
- Width within 2200mm
- Max Length to be 8000mm
Waterjet Cutting
Waterjet cutting stainless steel is quick, easy and removes the
need for many secondary processes. One of the most heralded
benefits of abrasive waterjets is that it is a cold cutting
process, meaning there are no heat-affected zones. This allows for
a part that was cut on a waterjet to be welded immediately. Another
huge benefit is that, since there is no material distortion due to
heat, detailed work can be done to specification. Operators don’t
have to concern themselves with the possibility of melting or
gouging.
One of the biggest benefits of abrasive waterjet over laser or
plasma is the thickness of the material cut. Laser cutting is
restricted to thinner gauges of stainless. On top of that, since
stainless is reflective, it needs to be coated in a non-reflective
film before laser cutting can occur. Though plasma doesn’t require
special coatings for cutting, it still can only cut material about
1.25 inches thick before losing force and making a mess of the
original material.
- Available thicknesses range from 10 - 60mm
- Waterjet cut sheet metal (+/- 0.3mm cutting tolerance)
- 5-7day lead time before shipping
- Width within 2000mm
- Max Length to be 6000mm
Conventional machining & sawing
Sawing uses a high-speed, toothed blade to cut through stainless
steel. A circular saw or band saws with the appropriate blades
designed for cutting stainless steel can be used for this purpose.
Saws can produce somewhat clean cuts, but they can generally only
create straight-line cuts across the entire cut path and would need
grinding and polishing to improve the surface finish.
Traditional milling, lathing, and drilling are more suitable for
intricate designs and high-precision applications. They can
potentially create a very good surface finish and have the
advantage of being able to accurately cut curves and
partial-thickness features.
Traditional machining methods also frequently use coolants applied
directly to the cut location to help manage temperature and
minimize work hardening in stainless steels. They may also need to
use specialized carbide tooling or a diamond blade to prevent
excessive tool wear, as dull tools can increase the work hardening
of stainless steel.
Unfortunately, for stainless steel sheets and plates that require a
lot of intricate detail, conventional CNC machining is much slower
than laser or waterjet cutting. Machining also cannot achieve the
level of complexity or intricacy possible with the other two
cutting methods due to limitations on the kerf width that can be
achieved.
- Available thicknesses range from 0.3 - 12.0 mm
- Waterjet cut sheet metal (+/- 2mm cutting tolerance)
- 5-7day lead time before shipping
- Width within 2000mm
- Max Length to be 10000mm

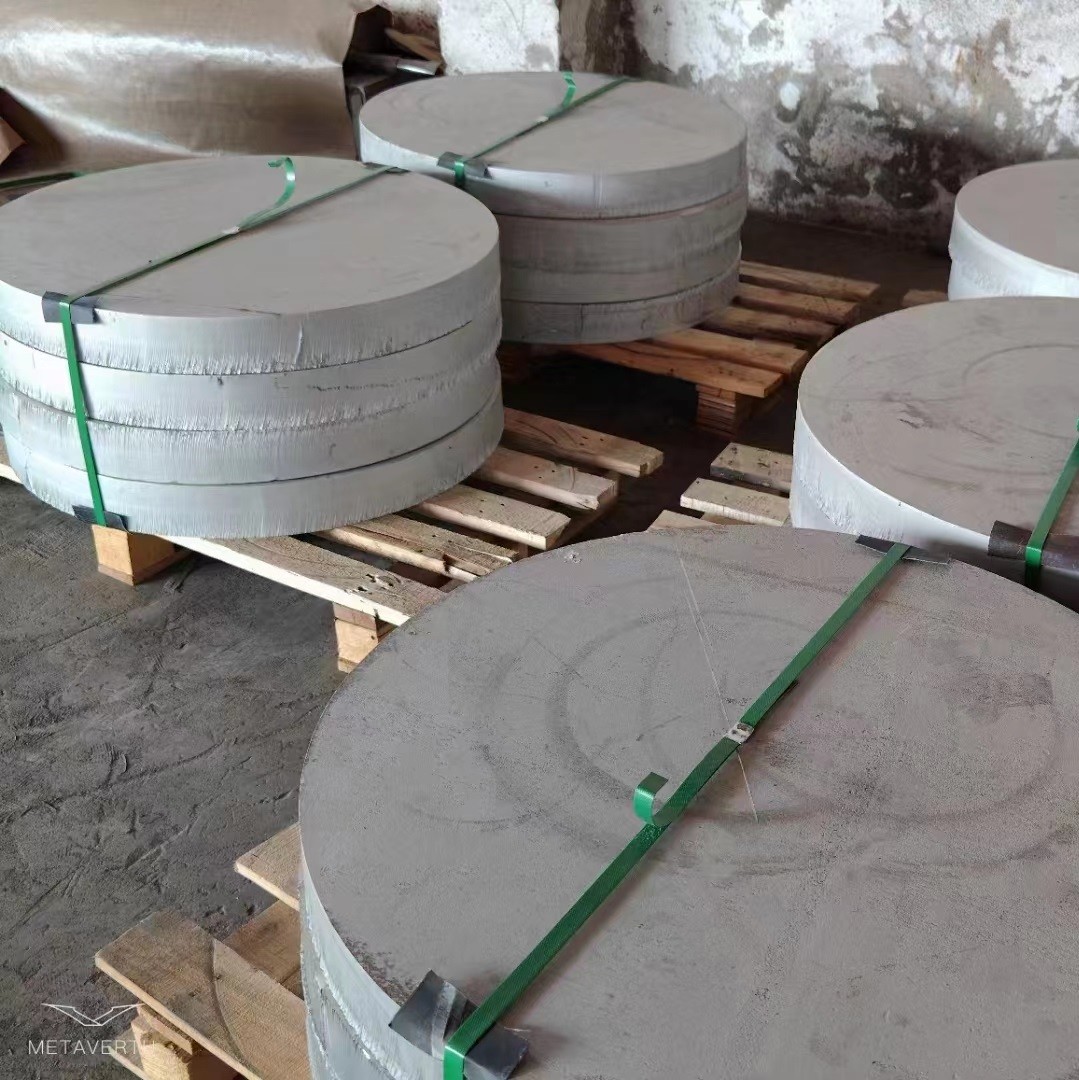

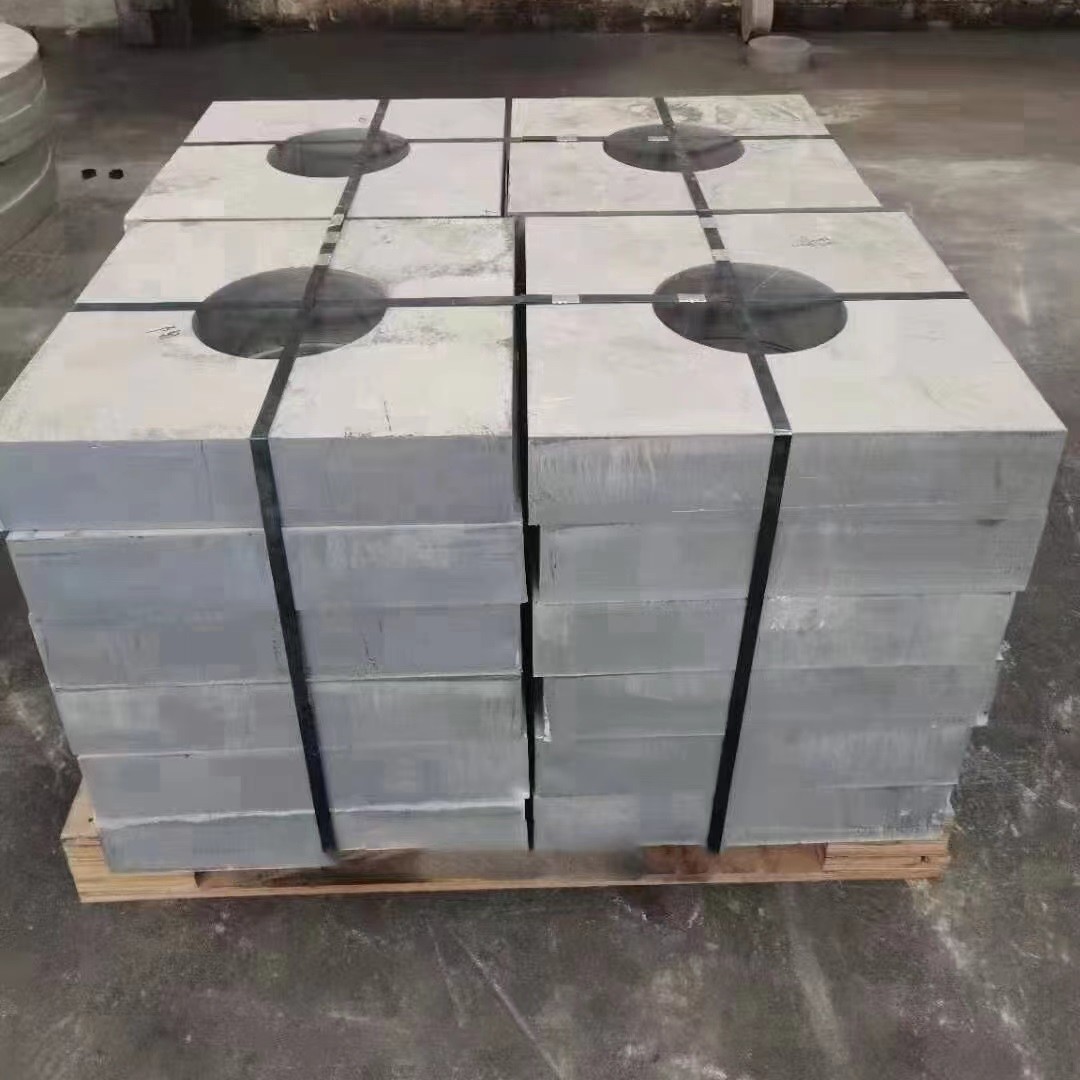

Products Show
