    904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing

    Ask Lasest Price
    Brand Name : DELTA
    Model Number : 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc
    Certification : ISO
    Price : 4000-5000 USD/Ton
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10 Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing


    904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing


    Specification of our stainless steel pipe


    Products NameStainless Steel pIpe
    DiameterDN6 - DN500
    Wall ThicknessSCH10S - XXS or unstandard size as request
    Length6m or cutting any length as request
    StandardASTM JIS EN DIN
    TechniqueHot Rolled / cold drawn
    TypeSeamless Pipe / Welded Pipe
    SurfaceBright Polished, Pickling
    Main Grade201 304 304L 309S 310S 316L 316Ti 316LMod 317L 321 347 410 904L 254SMO 253MA 2205 2507 654SMO 926 400 c276 c22 C4 600 625 800 825.etc
    MOQ500 kgs
    Loading PortShanghai Port
    Packingwooden box or ppbag

    About 904L Stainless Steel Pipe


    Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.

    Grade 904L contains high amounts of expensive ingredients, such as molybdenum and nickel. Today, most of the applications that employ grade 904L are replaced by low-cost duplex stainless steel 2205.

    PRODUCT DESCRIPTION
    • ASTM B677 904L Stainless Steel Seamless Pipes Dimention
    • O.D : 1/8" NB TO 32" NB, (10.29MM-812.80MM)
    • W.T: SCH 10S, SCH 40S, SCH 80S, SCH160, SCH XXS.
    • Product Name: ASTM B677 TP 904L Stainless Steel Seamless Pipe
    • Annealed and Picked
    • 100% Pmi Tested
    • En10204.3.1b Mill Test Certificate Provided
    • Third Party Inspection Accepted

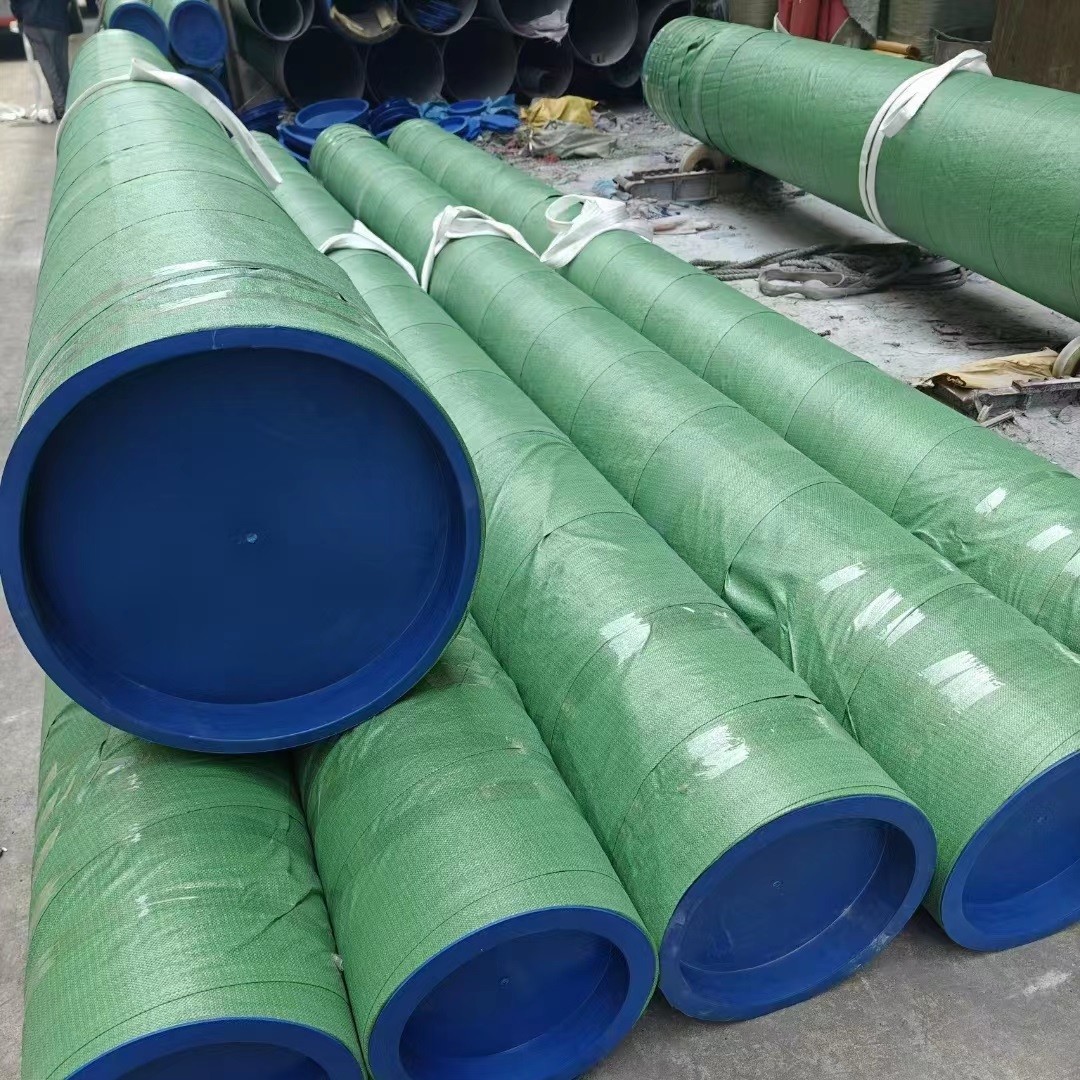

    • ASTM B677 904L Stainless steel seamless pipes Packing.
    • With plastic caps to both ends, Wrapped with Poly bags,pack into bundles. Or pack into plywood boxes as required.
    904L/ N08904 Seamless Pipe Chemical Composition
    GradeCMnSiPSCrMoNiCu
    904Lmin.max.-0.02-2-1-0.045-0.035192345232812

    904L/ N08904 Seamless Pipe Mechanical Properties


    GradeTensile Strength (MPa) minYield Strength 0.2% Proof (MPa) minElongation (% in 50mm) minHardness
    Rockwell B (HR B)Brinell (HB)
    904L4902203670-90 typical150

    The suitable alternatives to 904L stainless steels are tabulated below:


    GradeReasons for choosing grade 904L
    316LA lower cost alternative, but with much lower corrosion resistance.
    6MoA higher resistance to pitting and crevice corrosion is needed.
    2205A very similar corrosion resistance, with the 2205 having higher mechanical strength, and at a lower cost to 904L. (2205 not suitable for temperatures above 300°C.)
    Super duplexHigher corrosion resistance is needed, together with a higher strength than 904L

    Applications of 904L Stainless Steel Pipe

    Some of the major applications of grade 904L stainless steels include:

    • Wiring in electrostatic precipitators
    • Oil refinery components
    • Seawater cooling devices
    • Gas scrubbing plants
    • Pulp and paper processing industries
    • Acetic, phosphoric and sulphuric acid processing plants

    904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing
