17-4PH Stainless Steel Round Bar Diameter 6 - 300mm Hot Rolled &
Cold Drawn SS Bar
More Specification of 17-4PH Stainless Steel Bar
| Products | 17-4ph Stainless Steel Bar |
| Diameter | 6 - 300mm |
| Standard | ASTM A276 |
| Length | 6000mm or cutting any length as request |
| Type | Hot rolled/ cold drawn / forged |
| Surface | Black , bright |
| MOQ | 500 kgs |
| Service | cutting , heat treatment (solid solution , aging) |
| Other grade | 201 202 303 303Se 304 304L 309S 310S 316L 316Ti 316LN 316LMod 317L 317LN
321 347 410 420 416 430F 431 440A/B/C 904L 2205 2507 254SMO 654SMO 253MA.etc |
| Loading Port | Shanghai Port |
| Packing | wooden box or as request |
| Deliver time | 5 - 12 days |
Introduce of 17-4PH Stainless Steel
17-4 Stainless Steel Bar UNS S17400 (Grade 630)
17-4 stainless steel bar, also known as UNS S17400, 17-4 PH and
Grade 630, is one of the original precipitation hardened grades
developed in the 50’s. Primarily comprised of 17% chromium, 4%
nickel, 4% copper, with the balance being iron. There are also
trace amounts of manganese, phosphorus, sulfur, silicon, columbium
(or niobium) and tantalum. Stainless Steel 17-4 PH delivers an
excellent combination of oxidation and corrosion resistance. Other
characteristics include high strength, toughness, and quality
mechanical properties at temperatures up to 600° F. Engineers and
designers frequently choose Stainless Steel 17-4 PH due to its high
strength and superior corrosion resistance when compared to many
other stainless steels.
Stainless Steel 17-4 PH can be forged, welded and formed. Machining
may be formed in the solution-annealed state, or in the final heat
treat condition. Desired mechanical properties such as ductility
and strength can be achieved through heating the material at
various temperatures.
Heat Treatment Informations of 17-4PH Stainless Steel Bar
| COND A | STOCKING DIAMETERS | 1/2” TO 20” |
|---|
| MATERIAL LENGTHS | UP TO 24’ |
COND HH1150
(H1150D) | STOCKING DIAMETERS | 1/2” TO 15” |
|---|
| MATERIAL LENGTHS | UP TO 24’ |
| COND H1150 | STOCKING DIAMETERS | 1/2” TO 9” |
|---|
| MATERIAL LENGTHS | UP TO 24’ |
| COND H1075 | STOCKING DIAMETERS | 1/2” TO 5-1/2” |
|---|
| MATERIAL LENGTHS | UP TO 24’ |
| COND H1025 | STOCKING DIAMETERS | 1/2” TO 5-1/2” |
|---|
| MATERIAL LENGTHS | UP TO 24’ |
Grade Specification of 17-4PH
| UNS | TYPE | AMS | ASTM | FEDERAL | CHARACTERISTICS |
|---|
| S17400 | 17-4 PH | 5622
5643 | A-564 | – | Combines excellent corrosion resistance, high strength/hardness,
low temperature hardening and good fabricating characteristics. |
Chemical Composition of 17-4PH Stainless Steel
| C | MN | P | S | SI | CR | NI | MO | CU | OTHER | M/NM |
|---|
| .07 | 1. | .04 | .03 | 1. | 15. – 17.5 | 3. – 5. | 3. – 5. | | Cb + Ta = .15 – .45 | M |
Packing & Shipping Informations
| Packing Method | wooden box or ppgabs |
| Weight of package | within 2 Ton each package |
| Loading Port | Shanghai Port, Ningbo Port |
| Loading Quantity | 25 Tons each 20ft /40ft container |
| Trade Term | EXW CIF CFR FOB |
Standard Diameter of our 17-4PH Stainless Steel Bar
| Type | Diameter |
| Hot Rolled Bar | 6mm 8mm 10mm 12mm 14mm 15mm 18mm 20mm 22mm 25mm 28mm 30mm 32mm 35mm
38mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm
100mm 105mm 110mm 115mm 120mm 130mm 140mm 150mm 160mm 170mm 180mm
190mm 200mm 210mm 220mm 230mm 240mm 250mm 260mm 270mm 280mm 300mm |
| Bright Bar | 4mm 5mm 6mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm 18mm 19mm 20mm 22mm
24mm 25mm 27mm 30mm 32mm 35mm 38mm 40mm 42mm 45mm 50mm 55mm 60mm or
polsihing process large diameter as request |

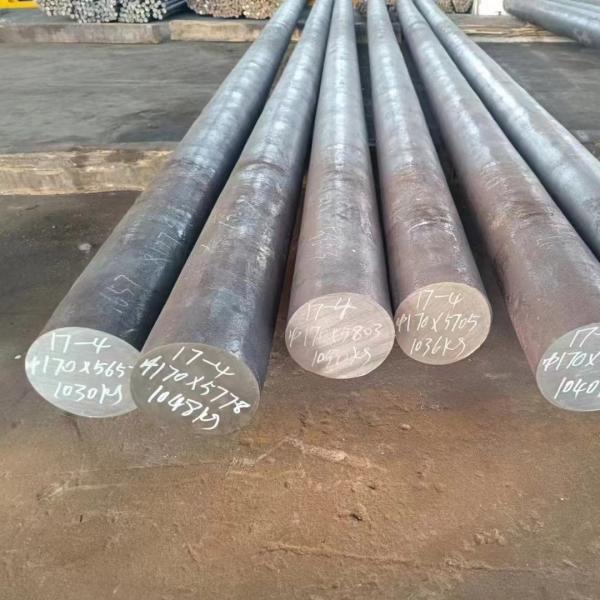

Products Picture
