Brand Name : | DELTA |
Model Number : | EN 1.4529 / UNS N08926 |
Certification : | ISO |
Price : | 40-45 USD/Kg |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 3 Ton per week |
Delivery Time : | 5 - 12 days based on the quantity |

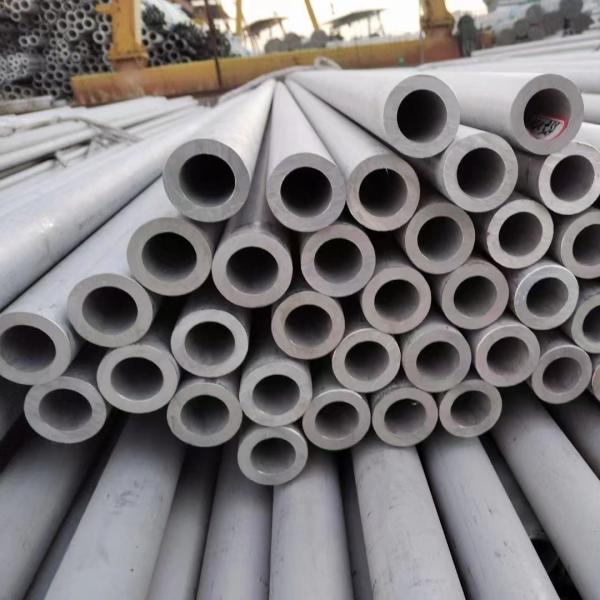

Alloy 926 UNS N08926 Hot Rolled Seamless Nickel Alloy Pipe Tubing / EN 1.4529 Alloy Pipe
Material | Inconel,Hastelloy,Monel,Incoloy,GH,Precision alloy,Stainless steel | |
Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc | |
Shape | Sheet ,Coil, Bar,Pipe,Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square | |
Surface | Mirror,Brushed,Mil Finished,Polished etc | |
Material Grade | Inconel | Inconel600(N06600 GH3600), Inconel601(N06601 GH3600), Inconel625(N06625 GH3625), InconelX-750(N07750 GH4145), Inconel 718(N07718 GH4169), Inconel690 |
Hastelloy | Hastelloy B-2,Hastelloy C,Hastelloy C-267(N10276),Hastelloy C-4, Hastelloy C-22(N06022),Hastelloy G30(N06030) | |
Monel | Monel 400(N04400),Monel K500(N05500) | |
Incoloy | Incoloy A-286(GH2132 N662),Incoloy800 800H 800HT,Incoloy725, Incoloy825,Incoloy925,Incoloy926(N08926 1.4529) | |
GH | GH2132(N66286 A286 Gr6),GH3625(Inconel625 UNS N0), GH4169(Inconel718 UNS N0),GH3030,GH3039,GH4033,GH3128 | |
Precision alloy | 4J36,4J29,1J79 | |
Stainless steel | Alloy 20(N08020),904L(N08904),254SMo(F44 S31254) | |
Specification | Sheet | Thickness 0.8-36mm; Width 650-2000mm; Length 800-4500mm |
Strip | 0.05*5.0-5.0*250mm | |
Pipe | φ 6-273mm; Thickness 1-30mm; Length 1000-8000mm | |
Bar | φ4-50mm; Length 2000-5000mm | |
Wire | 0.01-10mm | |
Application | It is widely used in high-temperature and electric industry,
medical devices, construction, chemistry, food industry,
agriculture, and ship components. It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc | |
Trade Terms | EXW,FOB,CIF CFR | |
Loading Port | Shanghai port, Tianjin port, Qindao port | |
Payment terms | 1) 30% deposit by T/T, the balance against copy of B/L by T/T. | |
2) 30% deposit by T/T, the balance by L/C at sight. | ||
3) 100% L/C at sight. | ||
MOQ | 1Ton | |
Packing Detail | Standard Seaworthy Package or customer requirements | |
Delivery time | 1.Usually,within10-20days after receiving deposit or LC. 2.According to the order quantity | |
Samples | Free samples are provided but the fright is borne by the buyer |
UNS N08926 is an austenitic stainless steel alloy has a similar
chemical composition with 904L alloy
We could delivery UNS N08926 forging material as per the standard
of ASTM B564
We use EAF+VOD-ESR melting methods to melt the material of UNS
N08926
As per heat treatment of UNS N08926 forged parts, We could do
solution treatment and ageing treatment together.
The chemical composition of UNS N08926 is as follows:
Alloy | % | Ni | Cr | Fe | C | Mn | Si | Cu | Mo | N | Ti | P | S |
UNS N08926 | Min. | 24 | 19 | Balance | 0.5 | 6.0 | 0.15 | 0.6 | |||||
Max. | 26 | 21 | 0.02 | 2 | 0.5 | 1.5 | 7.0 | 0.25 | 1.2 | 0.03 | 0.01 |
The mechanical property of UNS N08926 is as follows:
Alloy state | Tensile strength Rm N/mm2 | Yield strength RP0.2N/mm2 | Elongation A5 % |
UNS N08926 | 650 | 295 | 35 |
![]() |
