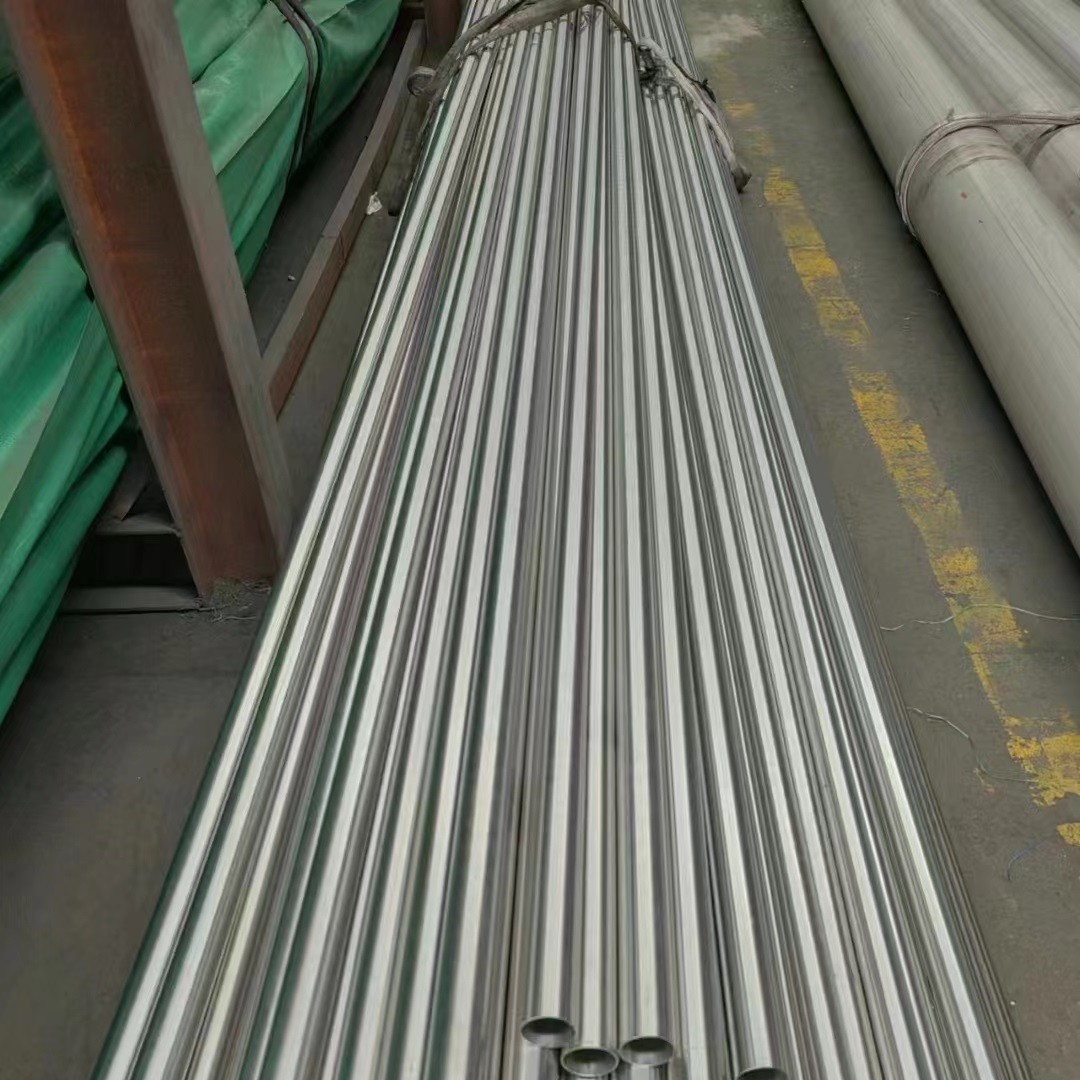

Super Duplex 2507 / UNS S32750 Stainless Steel Pipe DN100 DN200
DN300 Duplex SS Pipe
Item | Seamless Stainless Steel Pipe/Tube |
Steel Grade | 201,202,301,302,303,304,304L,309,309S,310S,316,316L904L,2205
2507ect. |
Standard | ASTM/DIN/JIS/EN/GB/BS |
Surface | 2B/BA/8K/NO.4/SB/Hairline/Embossed |
Wall thickness | 0.3mm-250mm |
Outer diameter | 5mm-2500mm |
Length | 800mm,4000mm,5800mm, 6000mm,12000mm or as required |
Price terms | FOB,CIF,CFR,CNF,Ex-work,DDU |
Payment terms | T/T,L/C,Global Pay |
Delivery Time | 5-15 days depends on customer's request and quantity |
Export to | Philippines,Saudi Arabia,Canada,Brazil,Korea,Canada,Viet
Nam,Peru,Mexico,Russia,etc |
Package | Standard export seaworthy package, or required. |
UNS S32750 is a super duplex stainless steel designed for
applications that demand exceptional strength and corrosion
resistance. Super Duplex stainless UNS S32750 is a mixed
microstructure of austenite and ferrite (50/50) which has improved
strength over ferritic and austenitic steel grades. Super Duplex
has a higher molybdenum and chromium content which gives the
material greater corrosion resistance than standard duplex grades.
Super Duplex UNS S32750 is the most common super duplex grade in
the market. UNS S32750 is duplex stainless steel specially designed
for service in aggressive chloride-containing environments. It has
very good resistance to localized corrosion and stress corrosion
cracking in combination with high mechanical strength. It is widely
used in oil & gas, hydropower, pressure vessels, pulp & paper,
structural components and chemical tankers.
UNS S32750 Super Duplex (2507) Features
- Super duplex grade with combination of properties given by
austenitic and ferritic structure
- High mechanical strength.
- High resistance to stress corrosion cracking in halide-containing
environments.
- High resistance to pitting and crevice corrosion.
- High resistance to general corrosion.
- High resistance to erosion corrosion and corrosion fatigue.
- Good weldability and workability
- Low rate of thermal expansion
- Suggested for applications up to 600° F
S32750 Super Duplex Chemical Composition
The Chemical Composition of UNS S32750 (2507) consists of 25%
chromium, 4% molybdenum, and 7% nickel. This high molybdenum,
chromium and nitrogen contents provide excellent resistance to
chloride pitting and crevice corrosion attack and the duplex
structure provides 2507 with exceptional resistance to chloride
stress corrosion cracking.
| Alloy | C | Si | Mn | P | Cr | Ni | N | Mo | S | Cu | Fe |
|---|
| S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 24.0-26.0 | 6.0-8.0 | 0.24-0.32 | 3.0-5.0 | 0.02 | 0.5 | Bal |
S32750 Super Duplex Mechanical Properties
| Tensile Strength, Mpa (Ksi), Min | Yield Strength, MPa (Ksi), Min | Elongation, %, Min | Hardness, Brinell HB |
|---|
| 795 (116) | 550 (80) | 15 | 310 Max |
Duplex S32750 possesses excellent mechanical properties. Often a
light gauge of S32750 material can be used to achieve the same
design strength of a thicker nickel alloy. The resulting savings in
weight can dramatically reduce the overall cost of fabrication.
Equivalent Grades Of S32750
EU
EN | USA
ASTM | Germany
DIN |
|---|
| X2CrNiMoN25-7-4 | UNS S32750 | 1.4410 |
FAQ
Q1: Do you offer free samples?
A: Sure,we are glad to send you free samples for your
evaluation.But currently we need you to kindly pay the delivery
charge on your side if you'd like to have our samples.
Q2:How long does your delivery time take?
A:In general, our delivery time is within 7 days, and may be longer
if the quantity is extremely large or special circumstances occur.
Q3:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit
our factory.
Q4:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality
before packaging, and unqualified products will be destroyed and
customers can appoint third parties to inspect the products before
loading too.
Q5:How to pack the products?
A: Standard export sea-worthy packaging, the inner layer has a
waterproof paper outer layer with iron packaging and is fixed with
a fumigation wooden pallet. It can effectively protect products
from corrosion and various climate changes during ocean
transportation.
