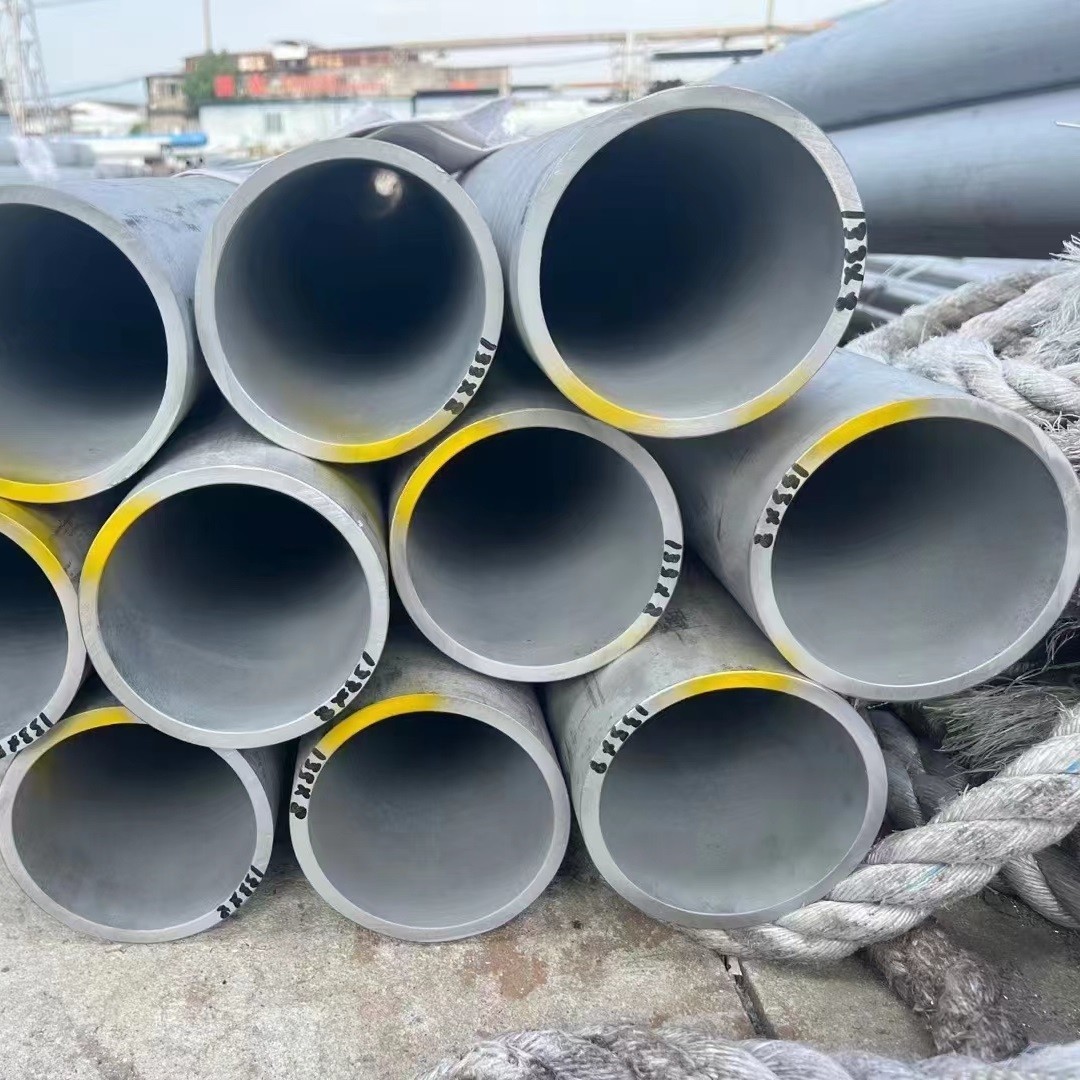

EN 2.4819 Nickel Alloy Seamless Pipe DN10 - DN300 Wall Thickness
SCH40S Hastelloy C276 Tube
Type | Nickel Alloy Tube/Pipe |
Length | 1000mm,3000mm, 5800mm, 6000mm,etc |
Standard | ASTM,AISI,JIS,DIN,EN |
Application | Construction,Ship,Boiler,Machinery,etc |
Certification | ISO,SGS,TUV |
Technique | Cold Rolled/Hot Rolled |
Quality | Mill Test Certificate supplied with the shipment ,third part
inspection is acceptable |
Grade | Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/
C276/C-2000/G-35/G-30/X/N/g;etc |
Inconel 600/601/602CA/617/625/713/718/738/X-750;ETC |
Incoloy: Incoloy 800/800H/800HT/825/925/926;etc |
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044,etc |
Monel: Monel 400/K500/R405,etc |
Nitronic 40/50/60/75/80A/90/A263 ;etc |
Specification | Wire: 0.02-6mm /Strip: 0.05*5.0-5.0*250mm /Bar: φ4-800mm;Length
2000-5000mm /Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm /Sheet: δ
0.8-36mm;Width 650-2000mm;Length 800-4500mm |
Cutting Type | Laser cutting;water-jet cutting;flame cutting |
Protection | 1. Inter paper available2. PVC protecting film available |
Hastelloy C276 Seamless Pipe Chemical Composition
Alloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
---|
Balance | 0.010 max | 15.00 – 17.00 | 1.00 max | 0.08 max | 4.00 – 7.00 | 0.04 max | 0.03 max | 2.5 max | 14.50 – 16.50 |
C276 Hastelloy Seamless Pipe Mechanical Strength Table
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
---|
8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
DIN/EN | UNS No | International name | Component |
1 | 2.406 | N02000 | Nickl200 | 99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.1C |
2 | 2.4601 | N02201 | Nickl201 | 99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.01C |
3 | 2.405 | N02270 | Nickl270 | 99.9Ni-0.02Fe-0.001Mn-0.002Si-0.005Cu-0.01C |
4 | 1.498 | S66286 | INCOLOY Alloy A286 | 25Ni-15Cr-1.5Mo-2Ti-1Mg-0.03C |
5 | | N08367 | INCOLOY Alloy 25-6HN | 25Ni-20Cr-6.3MO-0.25Cu-0.2N-0.01P-0.05S-0.01C |
6 | 1.4529 | N08926 | INCOLOY Alloy 25-6Mo | 25Ni-20Cr-6.5Mo-1Cu-0.2N-1.0Mg-0.01P-0.005S-0.01C |
7 | 2.446 | N08020 | INCOLOY Alloy 20 | 36Ni-21Cr-3.5Cu2.5Mo-1Mn-0.01C |
8 | 1.4563 | N08028 | INCOLOY Alloy 28 | 32Ni-27Cr-3.5Mo-1Cu-0.01C |
9 | 1.4886 | N08330 | INCOLOY Alloy 330 | 35Ni-18Cr-2Mg-1SI-0.03C |
10 | 1.4876 | N08800 | INCOLOY Alloy 800 | 32Ni-21Cr-0.3~1.2(Al+Ti)0.02C |
11 | 1.4876 | N08810 | INCOLOY Alloy 800H | 32Ni-21Cr-0.3~1.2(Al+Ti)0.08C |
12 | 2.4858 | N08825 | INCOLOY Alloy 825 | 42Ni-21Cr-3Mo-2Cu-0.8Ti-0.1AI-0.02C |
13 | 2.4816 | N06600 | Inconel Alloy 600 | 72Ni-151Cr-8Fr-0.2Cu-0.02C |
14 | 2.4851 | N06601 | Inconel Alloy 601 | 60Ni-22Cr-1.2Al-0.02C |
15 | 2.4856 | N06625 | Inconel Alloy 625 | 58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C |
16 | 2.4856 | N06626 | Inconel Alloy 625LCF | 58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C |
17 | 2.4606 | N06686 | Inconel Alloy 686 | 57Ni-21Cr-16Mo-4W-0.01C |
18 | 2.4642 | N06690 | Inconel Alloy 690 | 58Ni-30Cr-9Fe-0.2Cu-0.02C |
19 | 2.4668 | N07718 | Inconel Alloy 718 | 52Ni-19Cr-5Nb-3Mo-1Ti-0.6Al-0.02C |
20 | 2.4669 | N07750 | Inconel Alloy 750 | 70Ni-15Cr-6Fe-2.5Ti-0.06Al-1Nb-0.02C |
21 | 2.436 | N04400 | MONEL400 | 63Ni-32Cu-1Fe-0.1C |
22 | 2.4375 | N05500 | MONEL K-500 | 63Ni-30Cr-1Fe-3Al-0.6Ti-0.1C |
23 | 2.4819 | N10276 | Hastelloy C-276 | 57Ni-16Mo-16Cr-5Fe-4W-2.5Co-1Mn-0.35V-0.08Si-0.01C |
24 | 2.461 | N06455 | Hastelloy C-4 | 65Ni-16Cr-16Mo-0.7Ti-3Fe-2Co-1Mn-0.08Si-0.01C |
25 | 2.4602 | N06022 | Hastelloy C-22 | 56Ni-22Cr-13Mo-3Fe-2.5Co-0.5Mn-0.35V-0.08Si-0.01C |
26 | 2.4675 | N06200 | Hastelloy C-2000 | 59Ni-23Cr-16Mo-1.6Cu-0.08Si-0.01C |
27 | 2.4665 | N06002 | Hastelloy X | 47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.1C-1mn-1Si-0.008B |
28 | 2.4617 | N10665 | Hastelloy B-2 | 69Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co-1.0Mn-0.01C |
29 | 2.466 | N10675 | Hastelloy B-3 | 65Ni-28.5Mo-1.5Cr-1.5Fe-3W-3Co-3Mn-0.01C |
30 | | N06030 | Hastelloy G-30 | 43Ni-30Cr-15Fe-5.5Mo-2.5W-5Co-2Cu-1.5Mn-0.03C |
31 | | N06035 | Hastelloy G-35 | 58Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C |
32 | 1.4562 | N08031 | Nicrofer hMo31 | 31Ni-27Cr-6.5Mo-1.2Cu-2mn-0.01C |
33 | 2.4605 | N06059 | Nicrofer hMo59 | 59Ni-23Cr-16Mo-1.0Fe-0.01C |
FAQ
Q: Are you a manufacturer?
A: Yes , We are a metal manufacturer, We have own factory, which is
located in JIANGSU,CHINA. We have a leading power in producing and
exporting steel pipe,galvanized steel pipe,hollow
section,galvanized hollow section, etc. We promise that we are what
you are looking for.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best
price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is
25-45 days if the goods are not in stock, it is according to
quantity.
Q:How can we get the offer?
A: Please offer the specification of the product,such as
material,size,shape,etc.So we can give the best offer.
Q:Can we get the some samples? Any charges?
A: Yes , we could offer the sample for free charge but do not pay
the cost of freight . If you place the order after confirm the
sample , we will refund your express freight or deduct it from the
order amount.
Q: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our
customers' benefit.
2.We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
