- Product: Cooper plate
- Introduction: Our factory supplies red copper plates from stock,
with complete specifications, T2 copper plates, with a copper
content of more than 99.90%, reliable quality and excellent
quality. With a copper content of more than 99.90%, reliable
quality and excellent quality.
- Classification:Copper series
- Type: copper plate
Detailed description:

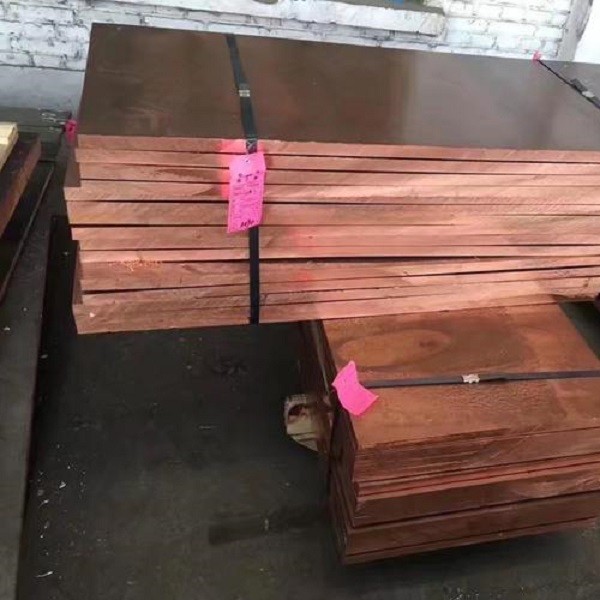

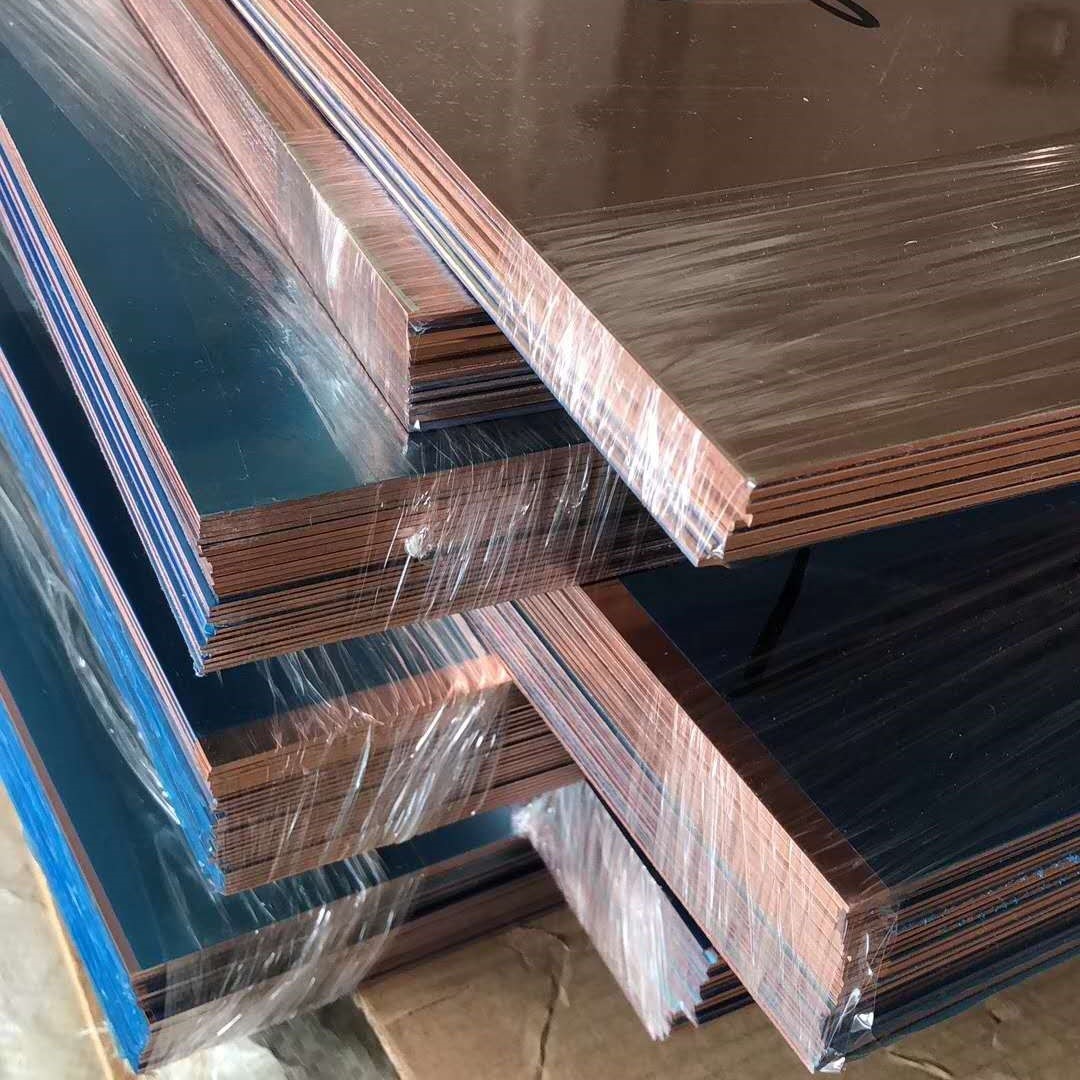

copper plate
| Product Name | Copper Plate | Grade | T2 | Origin | Shandong |
| Copper content ≥ | 99.90(%) | Impurity content | 0.01(%) | Hardness | 80(HV) |
| Weight | according to specifications | Elongationδ10/% | 8(Y2) | Tensile strength σb(MPa) | 245-345
(Y2 semi-hard) |
Copper is second only to silver as an excellent conductor of
electricity and heat. The electrical and thermal conductivity of
copper at room temperature are 94% and 73.2% of silver,
respectively.
Commonly used in industry is deformed copper containing more than
99.3% copper and can be made into various semi-finished products by
pressure processing, also known as processed copper.
Red copper is industrial pure copper with a melting point of
1083°C, no allotropes, a relative density of 8.9, five times that
of magnesium, and 15% heavier than ordinary steel. It has a rose
red color, and it appears purple after an oxide film is formed on
the surface, so it is generally called red copper. It is copper
containing a certain amount of oxygen, so it is also called
oxygen-containing copper. The impurities in it are oxidized and
discharged, and the amount of solid solution is reduced, which is
not only conducive to the conductivity of copper, but also
eliminates the influence of harmful impurities. However, copper is
prone to embrittlement (called hydrogen disease) in a reducing
atmosphere above 370°C. In order to avoid such problems,
oxygen-free copper or deoxidized copper can be used. The copper
melting and casting process is simple, the cost is low, and it is
suitable for mass production of processed products. There are three
types of copper grades in my country: T1, T2, and T3, of which T2
copper is widely used.
Features and scope of application: good mechanical properties, good
plasticity in hot state, acceptable in cold state, good
machinability, easy fiber welding and welding, corrosion
resistance, but easy to produce corrosion cracking, in addition,
the price is cheap, It is a common copper variety that is widely
used. Red copper is used to make copper busbars, contactors,
various types of conductors, radar components, switches and
contacts.
●Chemical composition:
Copper Cu: ≥99.9%
Oxygen O: ≤0.02%
Arsenic AS: ≤0.02%
Zinc Zn: ≤0.005%
Lead Pb: ≤0.03%
Boron P: ≤0.01%
Iron Fe: ≤0.15%
Beryllium Sb: ≤0.002%
Bismuth Bi: ≤0.002%
Note: (impurities)≤0.5%
●Mechanical properties:
Tensile strength: ≥295 (Y hard state)
Elongation A11.3/%: ≥8 (Y2)
Note: Room temperature tensile mechanical properties of other
sheets except for locks and clocks
Sample size: thickness>2.0～4.0
●Heat treatment specification: hot working temperature 650～850℃;
Annealing temperature 500 ~ 700 ℃;
The low temperature annealing temperature for eliminating internal
stress is 270-300 °C.
●Conductivity/%IACS is 100
●Vickers hardness (HV): ≥80 (Y2 state)
The size and size tolerance of the copper plate shall comply with
the corresponding regulations in GB/T 17993-1999:
| Grade | Temper | Diameter/ mm |
| | Thickness | Width | Length |
T2
T3 | R | 4-60 | ≤3000 | ≤6000 |
| M,Y4,Y2,Y | 0.2-12 | ≤3000 | ≤6000 |
Mechanical properties 2:
The mechanical properties of the sheet meet the following
requirements
| Grade | Temper | Stretching test | Hardness test |
| | Thickness/mm | Tensile strength
Σb/(MPa) | Elongation
δ10/%≥ | Thickness/mm | Vickers hardness
(HV) |
T2
T3 | R | 4-14 | ≥195 | 30 | - | - |
| M | 0.3-10 | ≥205 | 30 | ≥0.3 | - |
| Y4 | | 215-275 | 25 | | 55-100 |
| Y2 | | 245-345 | 8 | | 75-120 |
| Y | | ≥295 | - | | ≥80 |
Spot supply specifications: length 1500*width 600, thickness
1.0-25mm
Length 2000*width 1000, thickness 1.0-10.0mm
Use of copper plate:
1. Uses: Purple copper plate is more widely used than pure iron.
Every year, 50% of copper is electrolytically purified into pure
copper for use in the electrical industry.
2. Uses: Copper has good corrosion resistance in the atmosphere,
seawater and some non-oxidizing acids (hydrochloric acid, dilute
sulfuric acid), alkali, salt solution and various organic acids
(acetic acid, citric acid), and is used in the chemical industry.
In addition, red copper has good weldability and can be made into
various semi-finished and finished products by cold working and
thermoplastic processing.
3. Uses: The purple copper plate has unique and excellent
performance, and is an ideal substitute material for making circuit
breakers, contact conductive plates, low-voltage air switch
conductive accessories, etc. Compared with pure copper plate and
copper-iron alloy plate, the tensile strength, hardness and
electrical conductivity of purple copper plate are increased by
10.4%, 3% and 4.4%, respectively.
Uses: Excellent electrical conductivity, thermal conductivity,
ductility and corrosion resistance. It is mainly used in the
manufacture of electrical equipment such as generators, busbars,
cables, switchgear, transformers, etc., as well as heat-conducting
equipment such as heat exchangers, pipes, and flat-plate collectors
for solar heating devices.
5.Uses: Suitable for foundation water stop, dam body water stop,
dam crest water stop, gallery water stop, dam body hole water stop,
factory water stop, horizontal seam water stop under overflow
surface, etc. It is an ideal product to prevent omissions.
