ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate

JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate from wholesalers

    Buy cheap ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate from wholesalers
    • Buy cheap ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate from wholesalers
    • Buy cheap ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate from wholesalers
    • Buy cheap ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate from wholesalers
    • Buy cheap ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate from wholesalers

    ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate

    Ask Lasest Price
    Brand Name : DELTA
    Model Number : C10200 C11000 C10100
    Certification : ISO
    Price : 8 - 9 USD/Kg
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 15 Tons per month
    Delivery Time : 5 - 10 days
    • Product Details
    • Company Profile

    ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate

    ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate


    Steel Grade
    T1,T2,C10100,C10200,C10300,C10400,C10500,C11000,C10910,C10920,TC11200,C11600,
    U1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,
    C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800,C63020,
    C65500,C68700,C70400,C70600,C70620,C71000,C71500,C71520,C71640,C72200,etc
    Hardness
    1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
    Surface
    mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
    Thickness
    0.1mm-120mm or as required
    Width
    0.6m-3m or as required
    Length
    Customized
    Application
    1. Pancake Coil for ACR, General Engineering Applications
    2. LWC Coil for ACR, General Engineering Applications
    3. Straight Copper Tubes for ACR and Refrigeration
    4. Inner-grooved copper tube for ACR and Refrigeration
    5. Copper Pipe for Transportation System of water, gas and oil
    6.PE-coated copper tube for water/gas/oil transportation system
    7.Semi-finished Copper tube for industrial applications
    MOQ
    1 Ton
    Payment term
    30%TT Advance + 70% Balance
    Packing
    Standard Sea Worthy Packing
    Price Term
    CIF CFR FOB EX-WORK

    99.99% Copper Plate Sheet Excellent Surface Finish


    Description


    Copper Plate, made of pure copper or copper alloy in various shapes including rods,wires, plates, strips, tubes, foils, etc., collectively referred to as copper.

    Copper materials include copper plates, copper rods, copper tubes, copper strips, copper wires, copper bars, copper materials.

    1. The surface of hot rolled plate should be clean; Delamination, cracks, peeling, inclusion and green rust are not allowed, but repair is allowed, and the thickness of the plate should not exceed the allowable deviation after repair.

    The surface of hot rolled plate is allowed to have slight and local scratches, spots, pits, pressed objects, wrinkles, roller

    marks and other deviations that do not make the thickness of the plate exceed the allowable deviation.


    2. The surface of cold rolled plate should be smooth and clean; Delamination, cracking, peeling, inclusion and green rust are not allowed.

    The surface of the cold-rolled sheet is allowed to have slight and local scratches, spots, pits, pressed objects, wrinkles, roller marks, oil marks and other deviations that do not make the thickness of the sheet exceed the allowable deviation.


    Table 1. Chemical composition of Copper Plate/Sheet


    Chemical Requirements
    CU+AG (%)SN (%)ZN (%)PB (%)NI (%)FE (%)SB (%)S (%)AS (%)BI (%)O (%)
    ≥99.90≤0.002≤0.005≤0.005≤0.005≤0.005≤0.002≤0.005≤0.002≤0.001≤0.06

    AlloyChemical Composition
    QBJIS /ASTMCuPOOther
    T2JIS C110099.90.015-0.040-balance
    TUASTM C1030099.950.001-0.005-balance
    TP1JIS C122099.90.004-0.012-balance

    Table 2. Typical mechanical properties for Copper Plate/Sheet


    Grade(China)Grade(Japan)TemperVickers Hardness (HV)Tensile strength(Mpa)Elongation(%)
    T2/T3/TP1/TP2C11000/C1201M-≥290≥40
    C1220.etc.Y475-125325~410≥35
    Y285-145340~460≥25
    Y105-175390~530≥13
    T-≥490-

    FAQ


    Q1. Are you a manufacturer or trader?
    We are a manufacturer, and we can have our own factory produced many steel products.


    Q2. Whether your company supports Trade Assurance order?
    Yes, we can (100% product quality protection; 100% on-time shipment protection; 100% payment protection)


    Q3. Can we get the some samples? Any charges?
    Yes, you can get available samples in our stock. If the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order.


    Q4. How do we build up business relations with your company?
    Send us your requirement which includes size, coating info, parameters, quantity, destination .


    Q5. What is the MOQ?
    We can accept small orders.Please feel free to contact us, we can meet your requirements.


    Q6. What's your advantage?
    With high-quality products and efficient customer service, we adhere to the principle of customer first.


    Q7. How long is your delivery time?
    Prompt or as your request.


    Q8. What is your terms of payment?
    30%TT in advance and the balance against of copy of B/L.

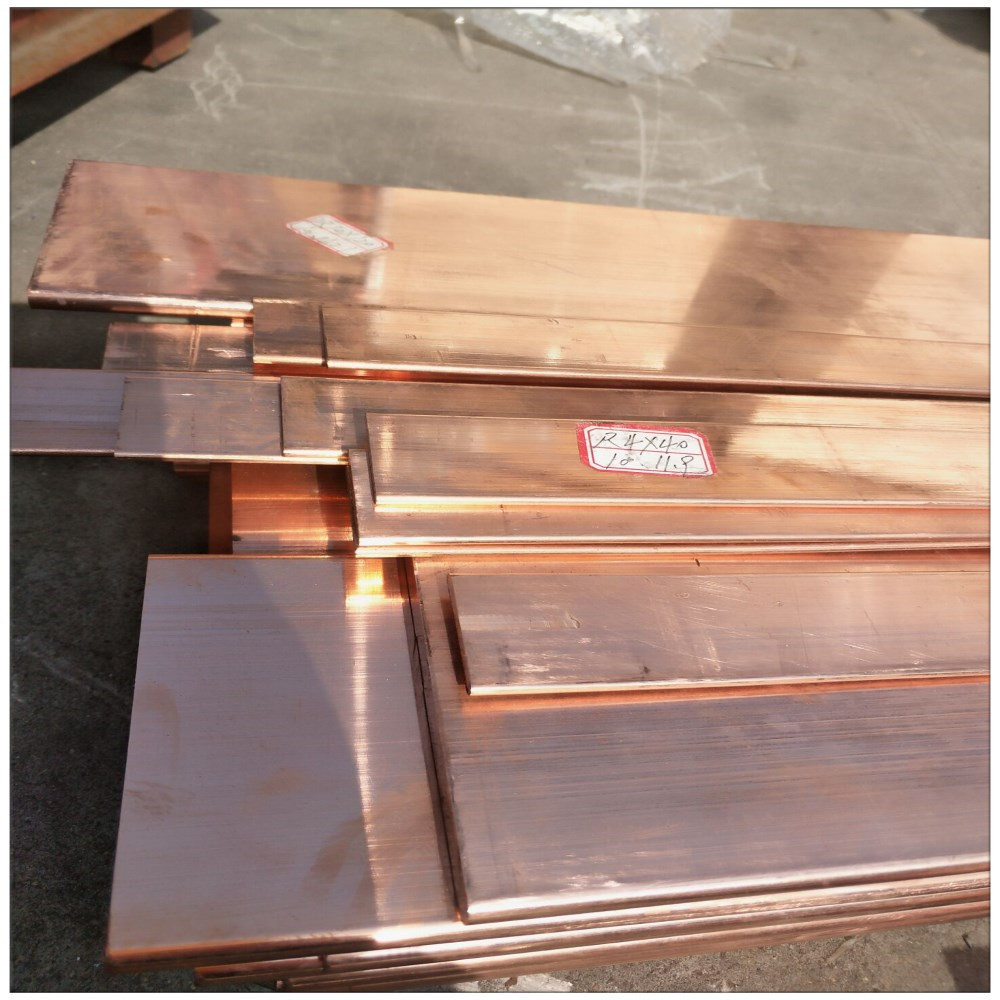

    Products Picture


    ASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft PlateASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft PlateASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft PlateASTM EN DIN JIS GB Standard Copper Sheet & Plate 0.4 - 100mm Copper Soft Plate
