TP347 SS Steel Tube 1.4550 DN10-DN300 SCH40 SCH80 XXS

Ask Lasest Price
Brand Name :	DELTA
Model Number :	304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc
Certification :	ISO
Price :	4000-5000 USD/Ton
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	10 Ton per week
Delivery Time :	5 - 12 days based on the quantity

Add to Cart

Product Details
Company Profile

TP347 SS Steel Tube 1.4550 DN10-DN300 SCH40 SCH80 XXS

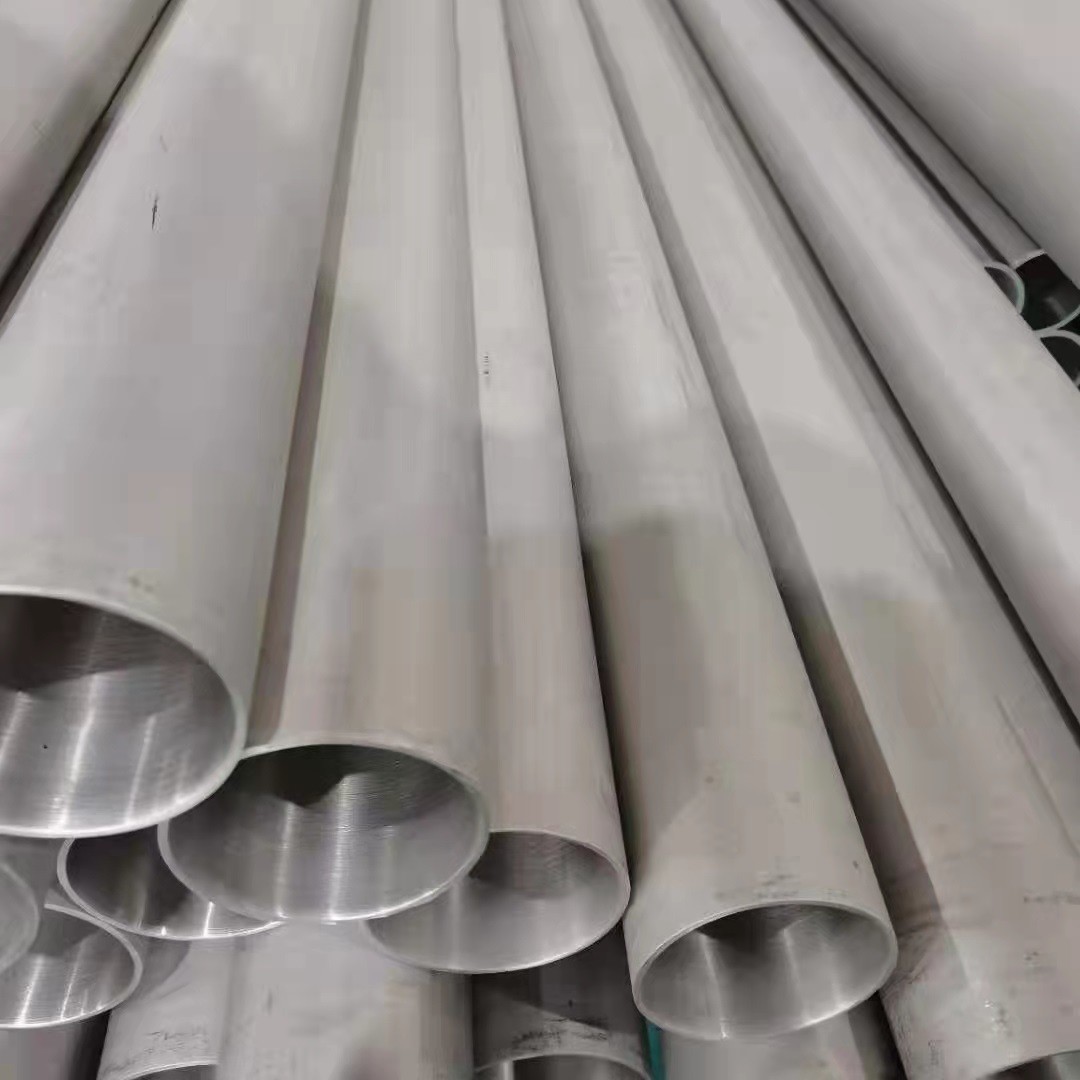

TP347 Stainless Steel Pipe 1.4550 Stainless Steel DN10 - DN300 With SCH40 SCH80 XXS

Type 347 / 347H stainless steel is an austenitic grade of chromium steel, which contains columbium as a stabilizing element. Tantalum can also be added for achieving stabilization. This eliminates the carbide precipitation, as well as intergranular corrosion in steel pipes. Type 347 / 347H stainless steel pipes offer higher creep and stress rupture properties than grade 304 and 304L. This makes them suitable for exposures to sensitization and intergranular corrosion. Moreover, the inclusion of columbium allows 347 pipes to have excellent corrosion resistance, even superior to that of 321 stainless steel pipes. However, 347H steel is the higher carbon composition substitute of stainless steel pipe grade 347. Therefore, 347H steel tubes offer improved high temperature and creep properties.

347 / 347H STAINLESS STEEL TUBE PROPERTIES

Following are the properties of 347 / 347H stainless steel pipes offered by Arch City Steel & Alloy:

Corrosion Resistance:

Exhibits oxidation resistance similar to other austenitic stainless steels
Preferred over grade 321 for aqueous and other low temperature environments
Better high temperature properties than 304 or 304L
Good resistance to sensitization in high temperature environments
Suited for heavy welded equipment that cannot be annealed
Used for equipment operated between 800 to 150°F (427 TO 816°C)

Weldability:

347 / 347H stainless steel tubes/pipes are considered to be the most weldable among all high grade steels pipes
They can be welded by all commercial processes

Heat Treatment:

347 / 347H stainless steel tubes and pipes offer an annealing temperature range of 1800 to 2000°F
They can be stress relief annealed without any danger of subsequent intergranular corrosion within the carbide precipitation range of 800 to 1500°F
Cannot be hardened by heat treatment

Applications:

347 / 347H pipes are frequently used for fabrication of equipment that ought to be used under severe corrosive conditions. Also, they are commonly used in petroleum refining industries. Major applications include:

High temperature chemical processes
Heat exchanger tubes
High pressure steam pipes
High temperature steam and boiler pipes/tubes
Heavy duty exhaust systems
Radiant superheaters
General refinery piping

CHEMICAL COMPOSITION

Typical Chemical Composition % (max values, unless noted)
Grade	C	Cr	Mn	Ni	P	S	Si	Cb/Ta
347	0.08 max	min: 17.0 max: 20.0	2.0 max	min: 9.0 max: 13.0	0.04 max	0.30 max	0.75 max	min:10x C max: 1.0
347H	min: 0.04 max: 0.10	min: 17.0 max: 20.0	2.0 max	min: 9.0 max: 13.0	0.03 max	0.30 max	0.75 max	min:10x C max: 1.0

MECHANICAL PROPERTIES

Typical Room Temperature Mechanical Properties
Grade	Tensile StrengthKSI (MPA)	Yield Strength 0.2% KSI offset KSI (MPA)	Elongation (% in 2ʺ(50.8 mm)	Hardness (Brinell) MAX	Hardness (Rockwell B) MAX
347/347H	75 (515)	30 (205)	40	201	95

TP347 SS Steel Tube 1.4550 DN10-DN300 SCH40 SCH80 XXS
