    Duplex 2205 Stainless Steel Plate 0.4-16.0mm EN 10088-2 1.4462

    Ask Lasest Price
    Brand Name : TISCO BAOSTEEL
    Model Number : 2205
    Certification : ISO
    Price : 2100-5300 USD/Ton
    Payment Terms : T/T, Western Union
    Supply Ability : 20Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    Duplex 2205 Stainless Steel Plate 0.4-16.0mm EN 10088-2 1.4462

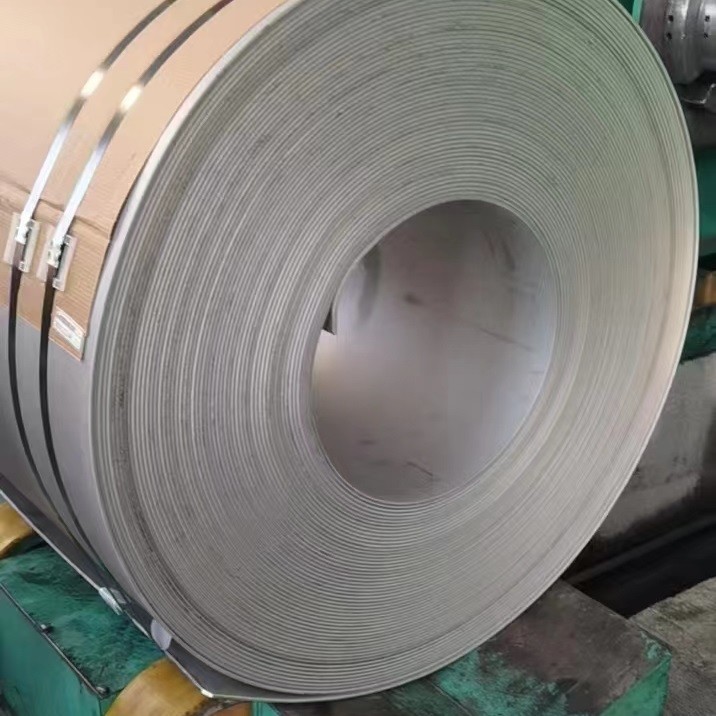

    EN 10088-2 1.4462 Duplex Stainless Steel Plate Alloy 2205 Stainless Steel 0.4 - 16.0mm Stock in Coil


    Specification of our 2205 duplex stainless steel plate


    Product Nameduplex 2205 Stainless Steel Plate/Sheet
    Technical StandardJIS,AISI, ASTM,GB,DIN,EN
    Steel Grade2205 / S32205 / S31803 / 1.4462
    TypeStainless steel sheet/ plate/coil
    ThicknessCold rolled:0.4~3.0mm
    Hot rolled:3mm~100mm
    Width1000mm 1219mm 1500mm 2000mm or custom cutting as request
    Lengthcustom as clients request
    SurfaceNO.1 2B or process other finishing
    QualityCertificateMill Test Certificate
    PackageWater proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
    Trade termFOB CIF CFR
    Loading portShanghai Port, China
    Other ProductsPipe / Bar / Strip / angle / channel

    Forms of Duplex 2205 Stainless Steel we can supply

    • Sheet
    • Plate
    • Bar
    • Pipe & Tube (welded & seamless)
    • Fittings:Elbows, tees, stub-ends, returns, caps, crosses, reducers, pipe nipples, etc.
    • Welding Wire and Welding Electrode (AWS ER2209, E2209-16, E2209T-1)

    Duplex 2205 is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels. “Duplex” describes a family of stainless steels that are neither fully austenitic, like 304 stainless, nor purely ferritic, like 430 stainless. The structure of 2205 duplex stainless steel consists of austenite pools surrounded by a continuous ferrite phase. In the annealed condition, 2205 contains approximately 40-50% ferrite. Often referred to as the work horse grade, 2205 is the most widely used grade in the duplex family of stainless steels.


    The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy (stress corrosion cracking resistance and high strength) with those of an austenitic alloy (ease of fabrication and corrosion resistance).

    Usage of 2205 Duplex stainless steel should be limited to temperatures below 600° F. Extended elevated temperature exposure can embrittle 2205 stainless.


    Corrosion Resistance of duplex 2205 / 1.4462 Stainless Steel

    2205 duplex stainless steel is a cost effective solution for many applications where the 300 series stainless steels are susceptible to chloride stress corrosion cracking. Stress corrosion cracking occurs when stainless steels are subjected to tensile stress, while in contact with solutions containing chlorides. Increasing temperatures also increase the susceptibility of stainless steels to stress corrosion cracking.

    The combination of chromium, molybdenum and nitrogen convey the good resistance of 2205 to chloride pitting and crevice corrosion. This resistance is extremely important for services such as marine environments, brackish water, bleaching operations, closed loop water systems and some food processing applications. The high chromium, molybdenum and nitrogen contents of 2205 provide corrosion resistance superior to common stainless steels, such as, 316L and 317L in most environments.

    Chemical Composition, % of duplex 2205 / 1.4462 Stainless Steel

    CrNiMoCNMnSiPSFe
    22.0-23.0
    4.50-6.50
    3.00-3.50
    .030 Max
    0.14-0.20
    2.00 Max
    1.00 Max
    .030 Max
    .020 Max
    Balance

    What are the characteristics of Duplex 2205/1.4462?

    • High resistance to chloride stress corrosion cracking
    • Resistance to chloride pitting and crevice corrosion
    • Good general corrosion resistance
    • Good sulfide stress corrosion resistance
    • High Strength
    • Good weldability and workability

    In what applications is Duplex 2205 used?

    • Chemical process vessels, piping and heat exchangers
    • Pulp mill digesters, bleach washers, chip pre-steaming vessels
    • Food processing equipment
    • Oil field piping and heat exchangers
    • Flue gas desulfurization equipment

    ASTM Specifications duplex 2205 / 1.4462 Stainless Steel

    Pipe SmlsPipe WeldedTube SmlsTube WeldedSheet/PlateBarFlanges, Fittings & Valves
    A790
    A790
    A789
    A789
    A240
    A276
    A182

    Mechanical Properties duplex 2205 / 1.4462 Stainless Steel

    Specified Tensile Properties ASTM A240

    Ultimate Tensile Strength, ksi Minimum.2% Yield Strength, ksi MinimumHardness Max.
    95
    65
    31 Rockwell C
