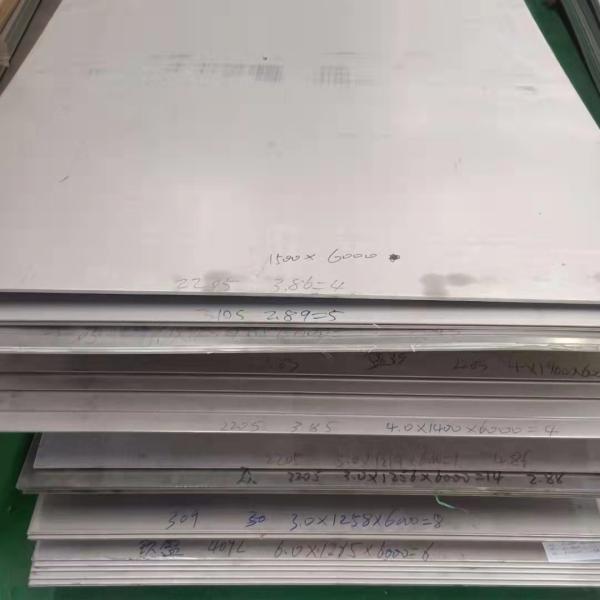

Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL

JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL from wholesalers

    Buy cheap Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL from wholesalers
    • Buy cheap Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL from wholesalers
    • Buy cheap Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL from wholesalers
    • Buy cheap Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL from wholesalers
    • Buy cheap Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL from wholesalers

    Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL

    Ask Lasest Price
    Brand Name : TISCO BAOSTEEL
    Model Number : 202
    Certification : ISO
    Price : 1200-1400 USD/Ton
    Payment Terms : T/T, Western Union
    Supply Ability : 20Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL


    Hot Rolled 202 Stainless Steel Plate 3.0 - 8.0mm Width 1500mm SS Plate from BAOSTEEL


    GradesStainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L
    Thickness3.0 - 8.0mm
    Width1250 -1500mm
    Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT
    Type of MaterialSTAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD, FULL HARD.
    FormPlate / coil
    Test CertificateYes.
    FinishNO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.
    MakeJINDAL, BAHRU, POSCO KOREA, POSCO THAINOX, COLUMBUS, ACERINOX, APERAM, TISCO, NISSHIN, NIPPON AND MANY MORE MILLS.

    Introduction

    Grade 202 stainless steel is a type of Cr-Ni-Mn stainless with similar properties to A240/SUS 302 stainless steel. The toughness of grade 202 at low temperatures is excellent.

    It is one of the most widely used precipitation hardening grades, and possesses good corrosion resistance, toughness, high harness, and strength.

    The following datasheet provides an overview of grade 202 B stainless steel.

    Chemical Composition

    The chemical composition of grade 202 stainless steel is outlined in the following table.

    ElementContent (%)
    Iron, Fe68
    Chromium, Cr17- 19
    Manganese, Mn7.50-10
    Nickel, Ni4-6
    Silicon, Si≤ 1
    Nitrogen, N≤ 0.25
    Carbon, C≤ 0.15
    Phosphorous, P≤ 0.060
    Sulfur, S≤ 0.030

    Mechanical Properties

    The mechanical properties of grade 202 stainless steel are displayed in the following table.

    PropertiesMetricImperial
    Tensile strength515 MPa74694 psi
    Yield strength275 MPa39900 psi
    Elastic modulus207 GPa30000 ksi
    Poisson's ratio0.27-0.300.27-0.30
    Elongation at break40%40%

    Other Designations

    Equivalent materials to grade 202 stainless steel are given below:

    ASTM A276ASTM A314ASTM A412ASTM A429
    ASTM A473ASTM A666FED QQ-S-763FED QQ-S-766
    FED STD-66SAE 30202SAE J405 (30202)

    Manufacturing Process

    The machinability of grade 202 stainless steel produces long, gummy chips. Machining can also be performed in the annealed condition. For heat treatment, the material has to be soaked at 1038°C (1900°F) for 30 min and cooled below 16°C (60°F) for full martensite transformation. The material can be welded by common fusion and resistance methods; however, this steel should not be joined using oxyacetylene welding method. The recommended filler metal is AWS E/ER630. Forging can be done by pre-soaking for 1 h at 1177°C (2150°F). Forging below 1010°C (1850°F) is not advisable.

    The grade 202 steel can be made into plates, sheets, and coils to be used in the following:

    • Restaurant equipment
    • Cooking utensils
    • Sinks
    • Automotive trim
    • Architectural applications such as windows and doors
    • Railway cars
    • Trailers
    • Hose clamps.
