JIS G4305 SUS444 Stainless Steel Sheet Thickness 0.4 - 10.0mm TISCO
POSCO AISI444 Stainless
444 Stainless steel sheet manufacturer
SUS444 (00Cr18Mo2) is a ferritic stainless steel with ultra-low
carbon and nitrogen content, 18% chromium and 2% molybdenum, and
high corrosion resistance.The yield strength of 444 is equivalent
to 1.5 times of carbon steel and 6 times of fiberglass steel. It
has outstanding advantages in shock resistance, snow resistance,
wind pressure resistance and impact resistance.
SUS444 ferritic stainless steel has high thermal conductivity,
about 130% ~ 150% of Cr-Ni austenitic stainless steel, which is
very suitable for heat exchange purposes.
Small thermal expansion coefficient, the small unit is only 60% ~
70% of chromium-nickel Olympic stainless steel, very suitable for
hot expansion, cold shrinkage, thermal cycle conditions.
The steel has good plasticity and toughness and is suitable for
drawing, rolling forming and stamping manufacturing.
Especially the application of corrosion resistance is the most
excellent, in the high chloride medium corrosion resistance is
better than ordinary ferrite stainless steel and Olympic stainless
steel, generally do not produce chloride stress corrosion cracking.
When Ti and Mo elements are added, the resistance to pore and
crevice corrosion is improved.
The steel can be welded by the method of welding ordinary stainless
steel.
This kind of steel is especially suitable for food processing
equipment, heat exchanger, water heater tank, water storage tank,
solar energy collection panel, etc.
Equivalent Material of 444 Stainless Steel Sheet
| Grade | Euronorm | China GB | Japanese JIS |
| No. |
| 444 | 1.4521N | 00Cr18Mo2 | SUS444 |
Standard Specification Of 444 Plate
| Thickness | 0.4 - 10.0mm |
| Width | 1000mm, 1219mm, 1500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair
line, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8),
SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet,
Chequered Plate, Strip, Flats,
Blank (Circle), Ring (Flange) etc. |
444 stainless steel composition content.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 444 | Min.
Max. | ≤0.025 | ≤1.00 | ≤1.00 | ≤0.04 | ≤0.03 | 17.5~19.5 | 1.75~2.5 | ≤1.00 | ≤0.035 |

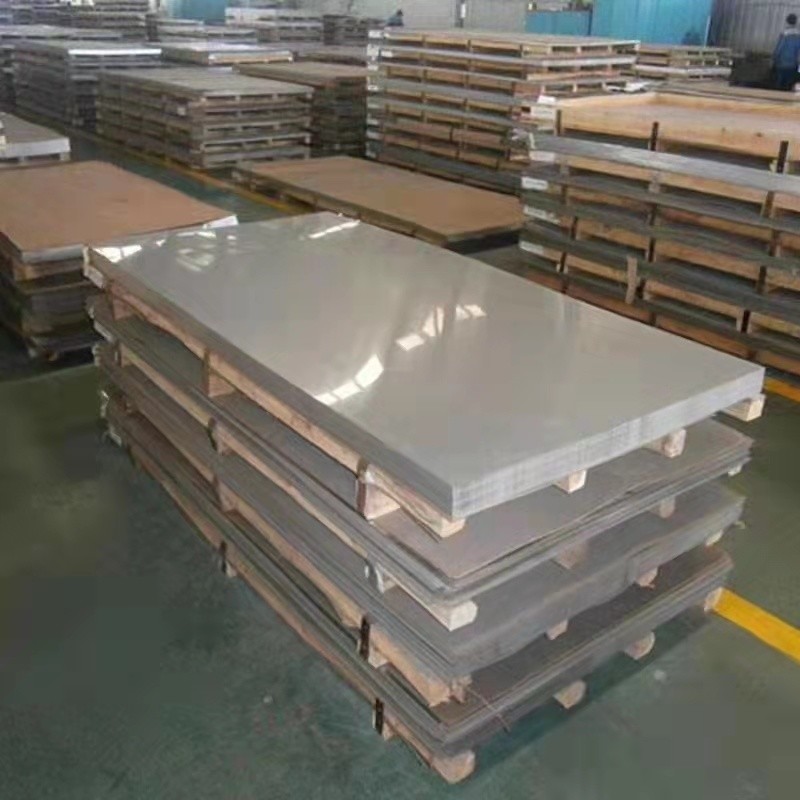

444 Stainless steel sheet
1. Chemical composition
| C | Si | Mn | P | S | Ni | Cr |
| max0.025 | max1.00 | max1.00 | max0.04 | max0.03 | --- | 17.00-20.00 |
2. Mechanical properties
| Yield Strength | Tensile | Elongation | Hardness (HV) | Hardness (HRB) |
| ≥245 | ≥410 | ≥20 | ≤230 | ≤96 |
3. Standard: AISI, ASTM, GB, EN, DIN, JIS
4. Surface: 2B, NO.1, BA, NO.4, Hairline, SB, Mirror finish,
Anti-skid, Cherkered etc.
5. Size: Thickness: 0.3-3mm (cold rolled), 3-40mm (hot rolled)
Width: 1000mm or 1219mm or 1240mm for cold rolled, 1500mm for hot
rolled.
Length: As customers' request.
6. MOQ: 1 Ton
7. Payment terms: T/T or L/C
8. Packing: Seaworthy package with wooden or Iron pallets with the
paper and the steel strip, or as customers' request.
9. Delivery time: Usually about 7 days after we confirming the
order, or according to your quantity.
