Duplex 1.4462 Stainless Steel Plate EN 10088-2 Thickness 3.0 -
40.0mm Hot Rolled Duplex Stainless
Specification of our EN 1.4462 Stainless Steel Plate
| Products | EN1.4462 Stainless Steel Plate Sheet |
| Thickness | cold rolled 0.4 - 5.0mm |
| hot rolled 3.0 - 100mm |
| Width | cold rolled 1000mm 1219mm 1500mm |
| hot rolled 1500mm 1800mm 2000mm |
| Surface | 2B BA NO.1 NO.4 8K HL |
| Brand | TISCO BAOSTEEL POSCO JISCO |
| Equal Grade | 1.4462 / S31803 / S32205 / 2205 |
| Other Grade | 201 202 304 309S 310S 316L 321 347 410 420 430 2205 2507 904L
254SMO.etc |
| Standard | EN 10088-2 ASTM A240 JIS G4303 |
| Service | Cutting , Surface Finishing |
| MOQ | 500 kgs |
| Packing | Wooden pallets and waterproof paper |
| Loading Port | Shanghai Port,China |
| FCL Qty | 25 Tons each 20ft and 40ft container |
DIN EN 1.4462 Duplex Stainless Steel (X2CrNiMoN22-5-3 Material)
DIN EN 1.4462 stainless steel (X2CrNiMoN22-5-3 Material) is an
Austenitic-Ferritic duplex steel, which combines the excellent
properties of austenite and ferrite, and has good resistance to
pitting, surface and intergranular corrosion, and higher resistance
to stress corrosion cracking. 1.4462 material also has good
weldability and mechanical properties, its strength is about twice
that of austenite such as AISI 304 grade stainless steel. Due to
these excellent properties, this material can be used in many areas
of the marine industry.
Datasheet & Specification of EN 1.4462 Duplex Stainless Steel
The following tables summarize DIN EN 1.4462 duplex stainless steel
datasheet and specifications, such as chemical composition,
physical properties, mechanical properties, heat treatment,
welding, etc.
Chemical Composition of EN 1.4462 Stainless Steel
The following table lists 1.4462 stainless steel chemical
composition based on cast analysis.
| | Chemical Composition, % |
| Steel Grade (Steel Number) | Standard | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | Mo | N |
| X2CrNiMoN22-5-3 (1.4462) | EN 10088-2; EN 10088-3 | 0,030 | 1,00 | 2,00 | 0,035 | 0,015 | 21,0-23,0 | 4,5-6,5 | 2,50-3,50 | 0,10-0,22 |
Application of EN 1.4462 Stainless Steel
DIN EN 1.4462 duplex stainless steel can be used for pressure
vessels, high-pressure storage tanks, high-pressure pipelines, heat
exchangers (chemical processing industry), desalination and sewage
treatment systems. Oil and gas pipelines, heat exchanger fittings,
pulp and paper industry classifiers, bleaching equipment, storage
and processing systems. Rotary shafts, press rolls, blades,
impellers, etc. in a high-strength, corrosion-resistant
environment. Food processing equipment.
1.4462 Stainless Steel Equivalent
Material X2CrNiMoN22-5-3, DIN 1.4462 stainless steel equivalent to
US ASTM AISI SAE, ISO, European (German DIN, British BSI, France
NF), Japanese JIS and Chinese GB standard (for reference).
| EN X2CrNiMoN22-5-3, 1.4462 material equivalent |
| European Union | US | ISO | China | Japan |
| Standard | Steel Name (Material Number) | Standard | Grade (UNS) | Standard | Grade (ISO number ) | Standard | Grade (UNS) | Standard | Grade |
EN 10088-2;
EN 10088-3 | X2CrNiMoN22-5-3 (1.4462) | AISI;
ASTM A240/A240M;
ASTM A276/A276M; | Duplex 2205 (UNS S32205); UNS S31803 | ISO 15510 | X2CrNiMoN22-5-3 (4462-318-03-I) | GB/T 1220;
GB/T 3280 | 022Cr22Ni5Mo3N (S22293) | JIS G4303; JIS G4304; JIS G4305 | SUS329J3L |

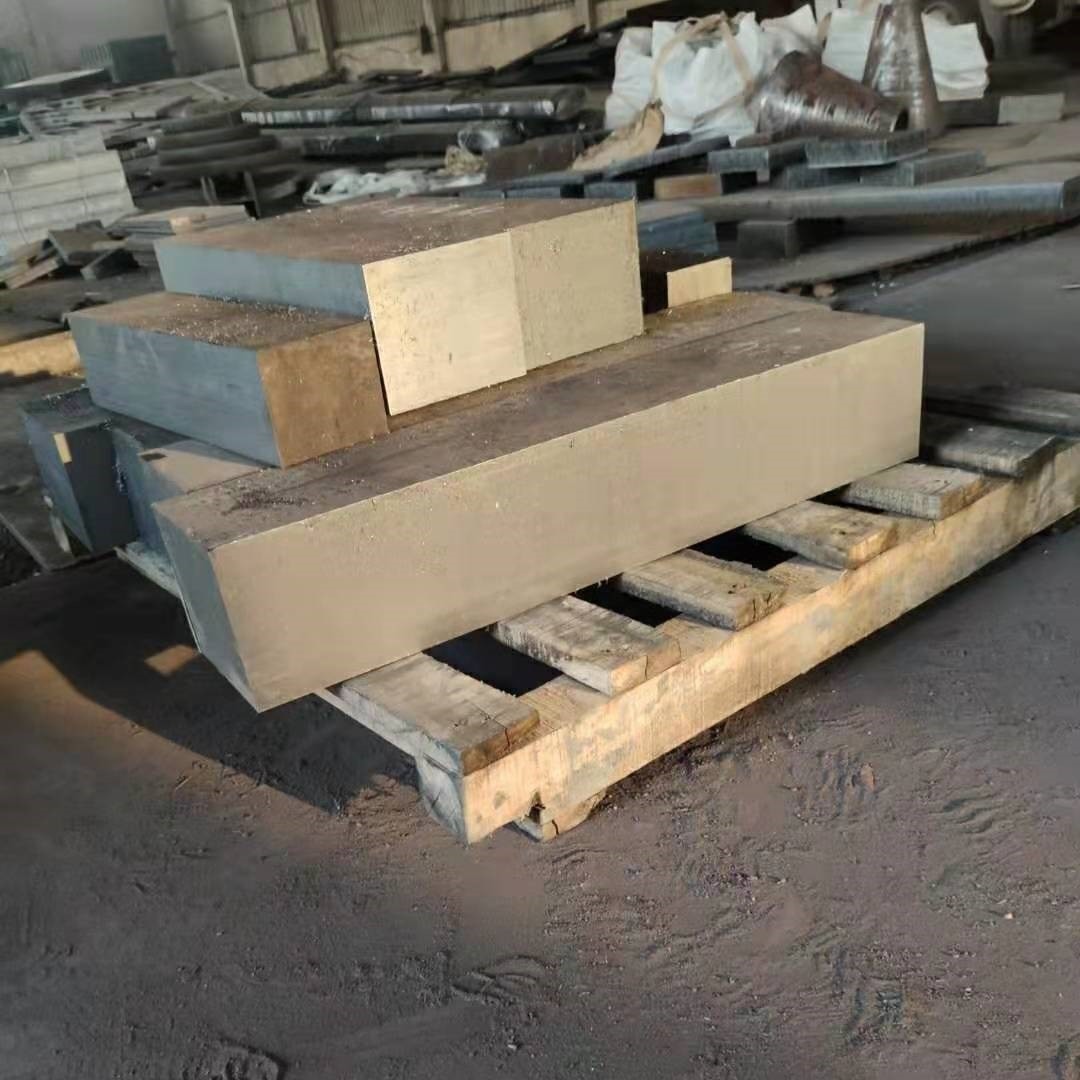

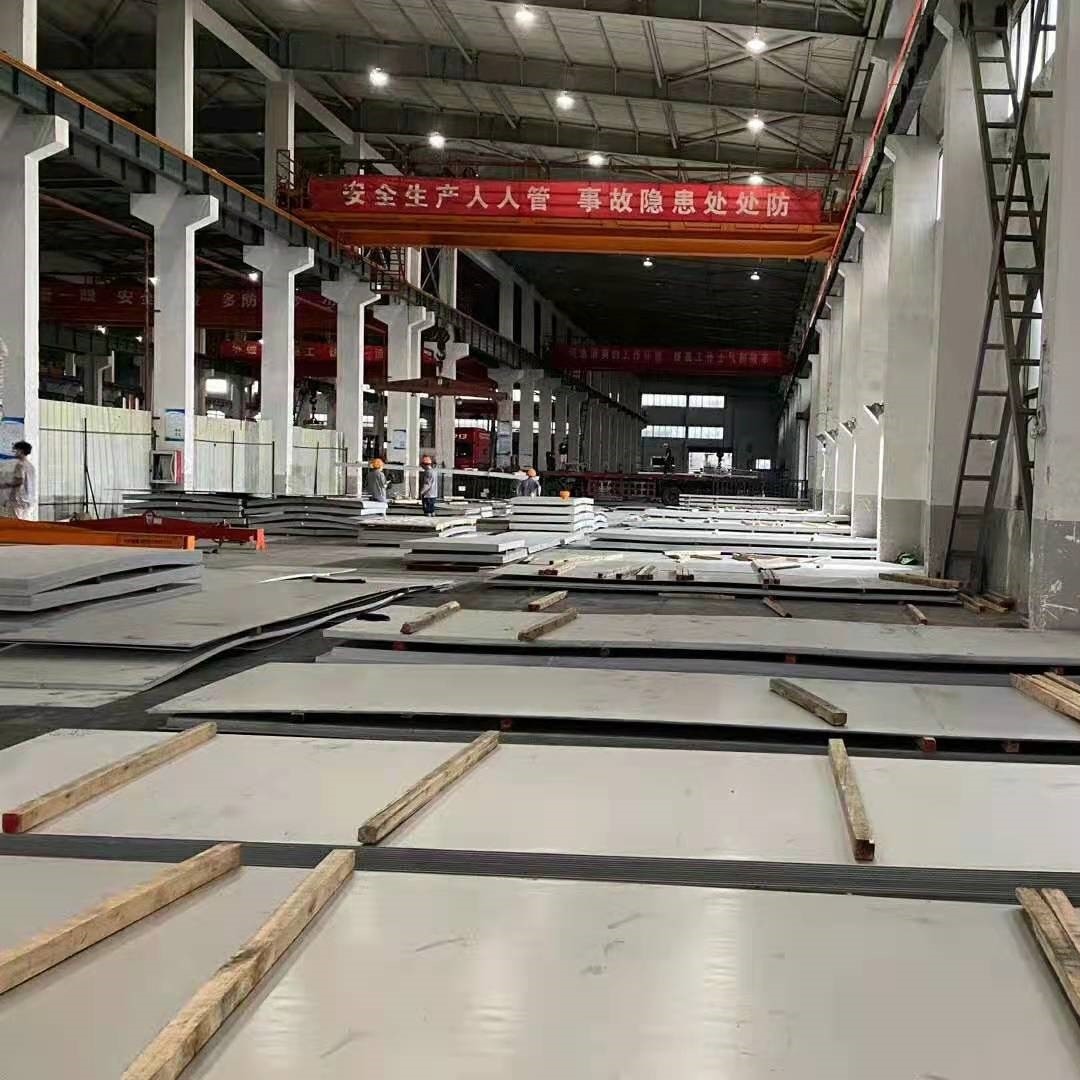

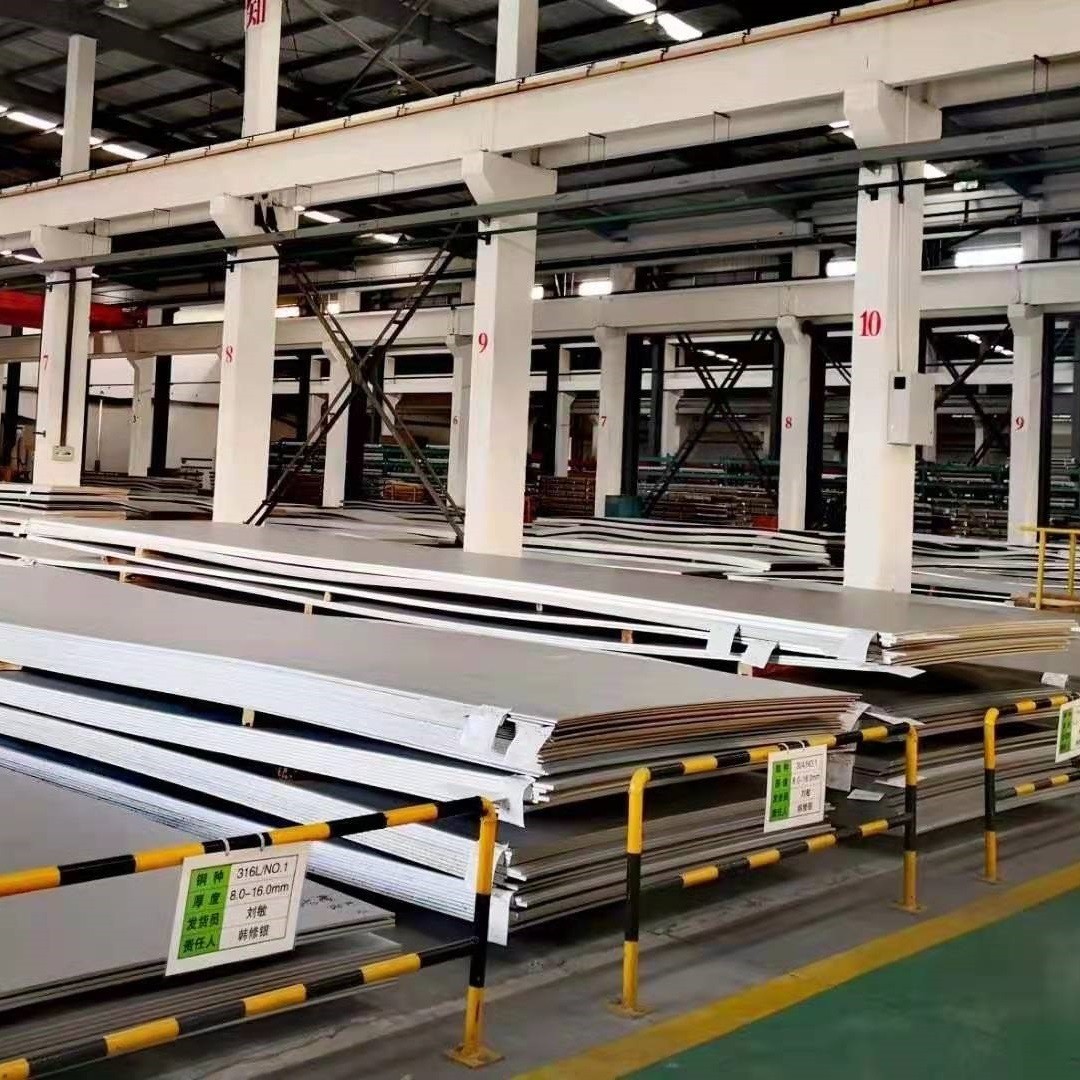

Products Show
