Cold Rolled 304 Stainless Steel Sheet 2b Ba Finished DIN1.4301 Inox
Metal Sheet
Cold Rolled 304 Stainless Steel Sheet 2B BA Finished DIN1.4301 Inox
Metal Sheet
| Product Name | Stainless Steel Sheet and Stainless Steel Plate |
| Thinckness | Cold rolled:0.4mm-3mm Hot rolled: 3.0mm-100mm |
| Widthness | 1000 1219mm 1250mm 1500mm 1800mm 2000mm or as customized |
| Length | 1000mm-6000mm or as request |
| Material | Stainless Steel |
| Finish | 2B, BA, HL, Mirror, NO1, NO 4, 8K |
| Standard | ASTM, AISI, DIN, EN, GB, JIS |
| Material | 200 series: 201, 202, 202cu, 204 300 series: 301, 302, 303, 304, 304L, 310, 310S, 316, 316L 400 series: 409, 409L, 410, 420, 430, 431, 439
Others: 2205 2507 904L 317L 254SMO 253MA 630 .etc |
| Brand | TISCO BAOSTEEL ZPSS LISCO JISCO |
| Application range | Decoration Industry Kitchenwave Building Elevator |
Grade 304 is the most commonly used stainless steel. It is an
austenitic, corrosion-resistant steel with excellent strength,
toughness, fabrication characteristics and weldability. The low
carbon version, 304L, may be required for full corrosion resistance
when thicker sections are welded. The 304H version has a guaranteed
minimum carbon content, which ensures good strength at high
temperatures.
Typical Applications For 304 Stainless Steel
Brewing and dairy equipment, evaporators, drums, barrels, heat
exchangers, hospital equipment, refrigeration parts, chemical and
food processing, shop fittings, bench tops, kitchens, kitchen
utensils, sinks, wash troughs, urinals, hand rails, dishwashers,
clothes dryers, ovens, heating trays, air conditioning equipment,
guttering and rain water goods, counters and display cabinets, hot
and cold food bars, commercial oven hoods, beer barrels.
Chemical Composition of 304 Stainless Steel
(AS1449 / ASTM A240 - Flat Products)
| | Carbon | Silicon | Manganese | Phosphorus | Sulphur | Nickel | Chromium | Nitrogen |
| 304 | Specification (max) | 0.08 | 0.75 | 2.00 | 0.045 | 0.030 | 8.00 - 10.50 | 18.00 - 20.00 | 0.10 |
| (typical) | 0.045 | 0.49 | 1.22 | 0.028 | 0.005 | 8.3 | 18.2 | 0.045 |
| 304L | Specification (max) | 0.03 | 0.75 | 2.00 | 0.045 | 0.030 | 8.00 - 12.00 | 18.00 - 20.00 | 0.10 |
| (typical) | 0.020 | 0.42 | 1.46 | 0.028 | 0.005 | 9.1 | 18.3 | 0.048 |
| 304H | Specification (max) | 0.04 - 0.10 | 0.75 | 2.00 | 0.045 | 0.030 | 8.00 - 10.50 | 18.00 - 20.00 | - |
| (typical) | 0.049 | 0.49 | 1.25 | 0.028 | 0.005 | 8.3 | 18.3 | 0.043 |
Mechanical Properties of 304 Stainless Steel
(AS1449 / ASTM A240 - Flat Products)
| Thickness | 0.2% Proof Stress | Tensile Strength | Elongation | Hardness |
| Unit | | MPa | MPa | % | HB (max) |
| 304 | Specification (min) | | 205 | 520 | 40 | 202 |
| typical values | 0.3 - 3.5mm | 260 | 660 | 55 | 160 |
| | 3.6 - 6mm | 250 | 600 | 55 | 160 |
| | > 6mm | 240 | 580 | 55 | 155 |
| 304L | Specification (min) | | 170 | 485 | 40 | 183 |
| 304H | Specification (min) | | 205 | 520 | 40 | 202 |
Availability Products of our 304 Stainless Steel
We can supply 304 stainless steel as plate, coil, sheet, strip,
round, hexagon, flat bar, angles, tube, pipe and welding
consumables.
Finishing of our 304 Stainless Steel Sheet Plate
No1 (hot rolled, annealed and pickled), 2D (cold rolled), 2B (cold
rolled, skin passed), N4 (polished), BA (bright annealed).
Flat products are available surface protected with white
polyethylene (PE) film. Protection with blue poly vinyl chloride
(PVC) for deep drawing or black PVC (for heavy forming) is also
available.
Corrosion Resistance of 304 Stainless Steel
Grade 304 stainless steel has excellent corrosion resistance in
many environments. Austral Wright Metals will be pleased to provide
advice for specific applications.
304 stainless steel gives good service in atmospheric conditions,
resisting most environments except for marine conditions, or where
industrial pollution is heavy. Best appearance is maintained where
the design allows even rain washing of the surface, or where dirt
deposits are occasionally washed off the steel.
It has given excellent service in some situations in potable water.
Pitting and crevice corrosion may occur at higher chloride content,
and 200 ppm is accepted as the upper limit.
Grade 304 stainless steel is not generally used in seawater, due to
the probability of crevice corrosion developing under sediments,
precipitation and biofouling.
Application of 304 Stainless Steel
Kitchenware,Household electrical aooliance,Building decoration
because of low cost,good corrosion resitance and formablity.
1. Architecture Building: Surface,Pillar, Window frame, Stair
hand-rail;
2. Kitchen Utensil:Washing machine drum,Gas range
stove,Plate,Housewares,Hollowware
3. Others: Computer components, Automotive trim.

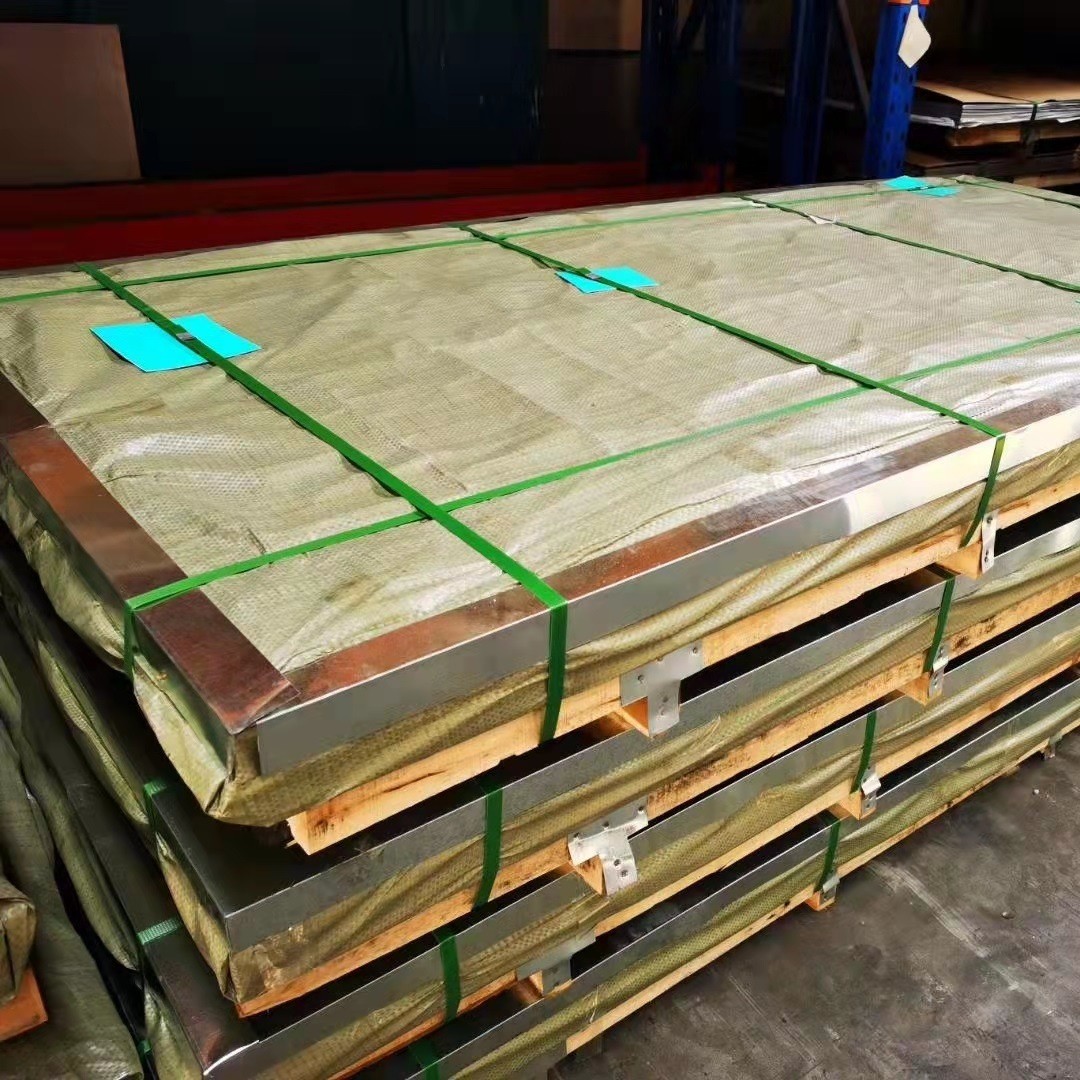

Packing&Delivery
Stainless steel coil be packed with kraft paper, plastic plate and
wooden pallet. To be packed strongly avoid damage during
transportation, and can be also according to the regulations and
customer's requests. Furthermore, products packages also are tagged
clear on the outside for easy identification of the product and
quality information.
Shipping:
| MOQ | 1 Ton |
| Price Term | FOB |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 20-30 days after receiving deposit by T/T or L/C. |
| Sample | Samples free and express charges bear by you |
Standard export package with water proof paper, and metal pallet,
and angle bar protection, and steel strip or as required
Products Pictures
