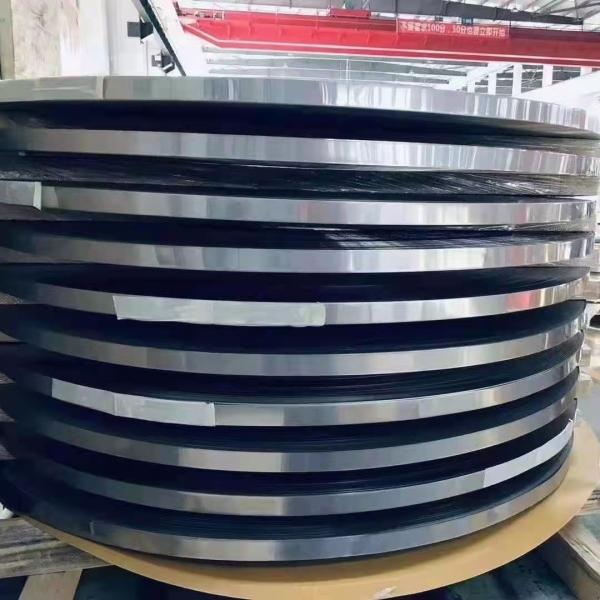

EN 10088-2 1.4404 / 316L Stainless Steel Sheet and Plate SS Sheet
0.3 - 30.0mm SS Plate
316/316L Stainless Steel Sheet, is a popular grade of stainless
where superior corrosion resistance is of primary importance. 316
Stainless sheet is widely used in marine and highly acidic
environments, underwater equipment, surgical tools, food and
pharmaceutical applications. The addition of molybdenum increases
the corrosion resistance of 316 Stainless over the more economical 304 grade.
Produc Forms : Sheet, plate , Coil , Strip .wire , Pipe, Tube ,Bar
, Profile, Round, Flat, Square, Hexagonal
Type 316 Austenitic Stainless Steel Sheets Metal AMS 5507 Flat
rolled No.1 or 2B Specification and Dimension Ranges
Specifications of 316L stainless steel sheet
AMS 5507, AMS 5524, AMS 5648, AMS 5653, ASME SA 240, ASME SA 312,
ASME SA 479, ASTM A 240, ASTM A 276, ASTM A 276 Condition A, ASTM A
276 Condition S, ASTM A 312, ASTM A 479, EN 1.4404, W. Nr./EN
1.4401, Werkstoff 1.4401, Werkstoff 1.4404
| Product Type | SS 316 Sheet, SS 316 Plate |
| Specification and Material Grade | ASTM A240 / ASME SA240 Grade 316 |
| Tolerances (thickness & width) | EN 10258/ DIN 59381) |
| EN 10151 ASTM A240 316 SS Strips |
| EN 10088 316 Stainless Steel strips |
| Americam / European Standard | ASTM A 480 |
| ASTM A 959 |
| ASME IID |
| EN ISO 9445 |
| EN ISO 18286 |
| EN 10051 |
| EN 10088-1 |
| ISO 15510 |
| Available Sizes | Cold rolled ASTM A240 Grade 316 Stainless Steel Sheet 0.5-6.4 mm |
| Hot rolled ASTM A240 Grade 316 Stainless Steel Sheet 3.0-10.0 mm |
| Thickness | 0.1 to 100 mm Thk |
| Width | 10-2500mm |
| Length | 2m, 2.44m, 3m, or as required |
| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR),
SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B,
No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Form | Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet,
Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet,
Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled,
tread plate, Checker Plate |
Dimension Ranges:
Width: 600mm~2030 mm
Thickness: 0.1~120.0 mm
Length: 300~6000 mm , Max 18000 mm
Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching,
SB, Ti-coating,color-coating ,embossing .
Type 316 Austenitic Stainless Steel Sheets Metal AMS 5507 Flat
rolled No.1 or 2B Application
- Food processing
- Marine
- Surgical Instruments
- Firearms production
- Pulp & paper
- Chemical process vessels
- Pharmaceutical Equipment
Type 316 Austenitic Stainless Steel Sheets Metal AMS 5507 Flat
rolled No.1 or 2B Technical datasheet
Type 316L is an extra-low carbon variation of Type 316 that
eliminates harmful carbide precipitation due to welding.
| COMPOSITION | TYPE 316 (wt %) | TYPE 316L (wt %) |
| Carbon | (C) | 0.08 max. | 0.03 max. |
| Manganese | (Mn) | 2.00 max. | 2.00 max. |
| Phosphorus | (P) | 0.045 max. | 0.045 max. |
| Sulfur | (S) | 0.030 max. | 0.03 max. |
| Silicon | (Si) | 0.75 max. | 0.75 max. |
| Chromium | (Cr) | 16.00 - 18.00 | 16.00 - 18.00 |
| Nickel | (Ni) | 10.00 - 14.00 | 10.00 - 14.00 |
| Molybdenum | (Mo) | 2.00 - 3.00 | 2.00 - 3.00 |
| Nitrogen | (N) | 0.10 max. | 0.10 max. |
| Iron | (Fe) | Balance | Balance |
MECHANICAL PROPERTIES
TABLE 1 - TYPICAL ROOM TEMPERATURE MECHANICAL PROPERTIES
UTS ksi. (MPa) | 0.2% YS ksi. (MPa) | Elongation % in 2" (50.8 mm) | Rockwell Hardness |
| 91 (627) | 42 (290) | 55 | B79 |
TABLE 2 - ELEVATED TEMPERATURE MECHANICAL PROPERTIES
Temperature °F (°C) | UTS ksi. (MPa) | 0.2% YS ksi. (MPa) | Elongation % in 2" (50.8 mm) |
| 400 | (204) | 81 (558) | 35 | (241) | 51 |
| 600 | (316) | 78 (538) | 31 | (214) | 48 |
| 800 | (427) | 76 (524) | 28 | (190) | 47 |
| 1000 | (538) | 70 (483) | 24 | (165) | 44 |
| 1200 | (649) | 57 (393) | 21 | (145) | 40 |
| 1400 | (760) | 35 (241) | 18 | (124) | 37 |
| 1600 | (871) | 24 (165) | 16 | (110) | 44 |
TABLE 3 - STRESS RUPTURE PROPERTIESa
Test Temperature °F (°C) | Stress, ksi. (MPa), for rupture in: |
| 1,000 hours | 10,000 hours | 100,000 hours |
| 1100 | (593) | 36.0 | (248) | 28.0 | (193) | 25.0 | (172) |
| 1200 | (649) | 24.0 | (165) | 16.5 | (114) | 13.5 | (94) |
| 1300 | (704) | 15.5 | (106) | 10.0 | (69) | 7.0 | (48) |
| 1400 | (760) | 10.0 | (69) | 6.0 | (41) | 3.5 | (24) |
| 1500 | (816) | 6.0 | (41) | 3.5 | (24) | 2.0 | (14) |
| 1600 | (871) | 3.5 | (24) | | |
PHYSICAL PROPERTIES
CORROSION RESISTANCE
Types 316 and 316L stainless steels exhibit improved chloride
corrosion resistance when compared
to Type 304due to the molybdenum addition to the steel. This allows
for acceptable corrosion protection
to marine atmospheres when pitting corrosion is concern. They also
provide good chemical resistance
to most agents used in the paper, petroleum,food and dairy
industries. They are useful in sulfuric acid
environments up to 150 °F (60 °C) when concentrations are below
5%.They show excellent corrosion
resistance to acetic, formic, phosphoric, and tartaric acids as
well as some concentrations and temperatures
of bromide and lodide solutions. When welding operations are used,
the lower carbon Type 316L allows for reduced
risk of intergranular corrosion caused by chromium carbide
precipitation.
HEAT TREATMENT
Annealing: Heat to 1900 - 2100 °F (1038 - 1149 °C), then rapidly
quench.
COLD WORKING
Due to the higher nickel content, these grades work harden at a
lower rate than Type 304. In the annealed condition,
they exhibit excellent ductility and may be readily roll formed,
deep drawn, and bent. Annealing is essential to restore
ductility and to lower hardness for subsequent forming
operations.Severely formed parts should be annealed to remove
stresses.
FORMABILITY
Types 316 and 316L can be readily formed and drawn using the same
methods as used with Type 301 and Type 304. Although the forming
capability is very similar to Type 301, temperature variation will
have less influence on material behavior. This product may become
slightly magnetic when highly cold worked.
