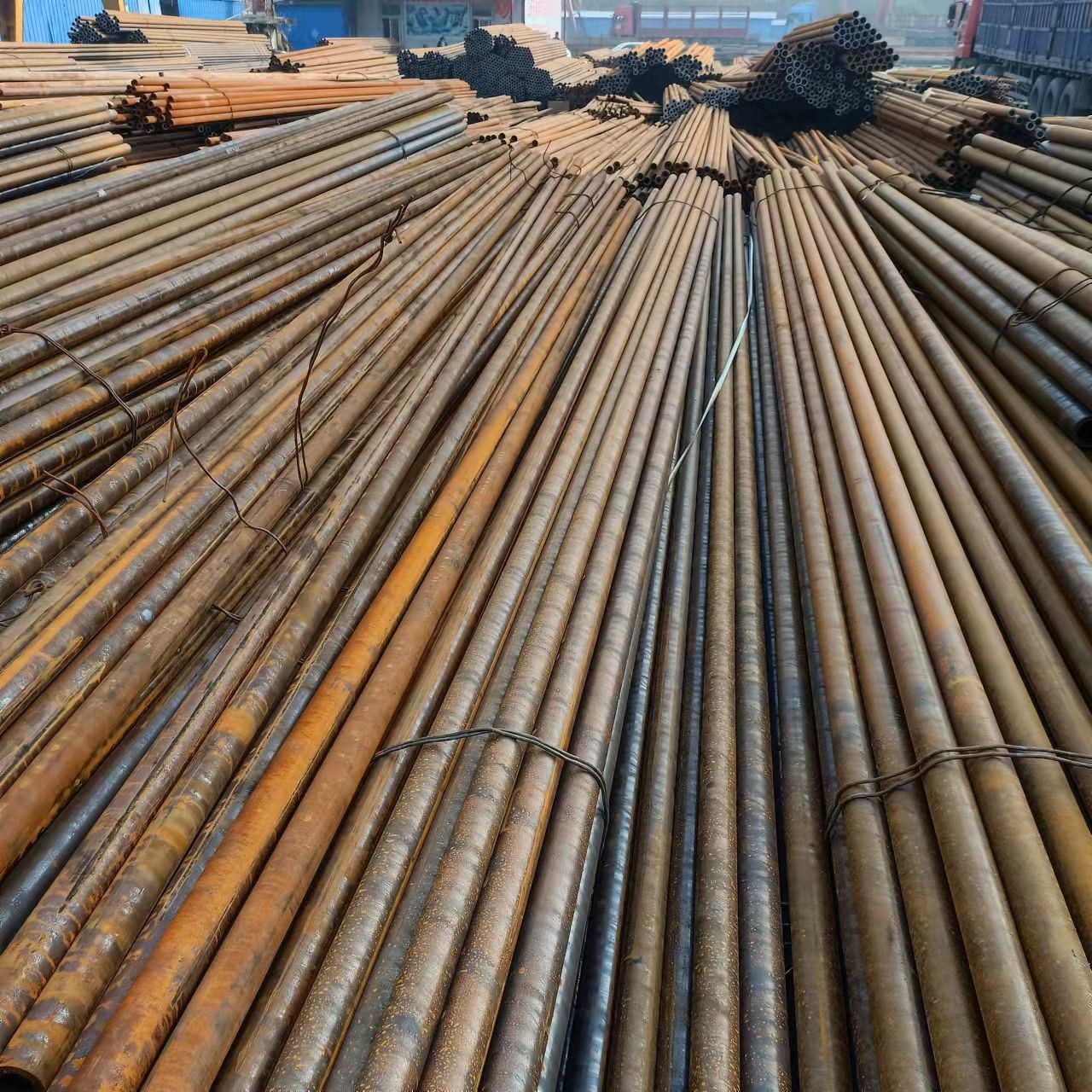

12Cr1MoV Alloy Steel Pipe ASTM A335-P11 Seamless Pipe Steel Alloy
Tube Pipe DN10-DN400
ASTM A335 P11 Pipe Specifications
P11 Material Specification
| Material | Size Range
(in mm) | Sch. & Swg. | Specification |
|---|
| ASTM A335 P11 Seamless Pipe | 15 NB
to
300 NB | Sch. 40s
To
Sch. XXs
(heavier on request) | ASTM A 335, ASME SA 335
Seamless |
| Size in Inch | 1/8NB TO 24NB inch |
|---|
| ASTM Standards | ASTM A 335, and ASME SA 335 |
|---|
| Type | Seamless Pipe |
|---|
| Specialized in Size | Large Diameter Size |
|---|
| Outer Dimensions Chart | 19.05milimeter – 114.3milimeter |
|---|
| Wall Thickness Chart | 2.0milimeter – 14 milimeter |
|---|
| Length in milimeter | max 16000milimeter |
|---|
| Schedule Chart | Schedule 20 - XXS up to 250 milimeter thk. |
|---|
| Pipe Form | Round, Rectangular, Square, Hydraulic Etc. |
|---|
| Length | Single, Double Random & Cut to Length. |
|---|
| Pipe & Tube End | Plain, Beveled, Treaded. |
|---|
| Manufacturer Test Certificate | EN 10204 3.1 B |
|---|
| Pipe Marking | All A335 P11 Pipe are marked as follows: Supplier or Manufacturer’s
Name, Grade, Standard, OD, Thickness, Length, Heat No. (Or
according to the customer’s request.) |
|---|
Sizes:
1/2~24,24~80 inch
WALL THICKNESS RANGE:
2mm TO 100mm
Suitable Pipe Fittings material:
A234 WP5
Pipe Sch.:
SCH20, SCH40, SCH60, STD, extra strong, XXS- Manufacturer and
supplier
Pipe Ends:
Bevel both ends, Beveled end, Bevel large end, Bevel small end,
Bevel one end, Plain One End, Treaded One End, Beveled One End,
Treaded Both Ends, Plain Both Ends
P11 Pipe Standard:
ASTM/ ASME - EN - DIN - NF A - GB 5310 - GOST - JIS - BS -UNI - ISO
SA335 p11 Surface Coating:
3LPE, 3LPP, Bare, Oiled, Mill Varnish, FBE Dual, Galv, FBE,
Concrete Coating, Coal Tar and Tape Wrap.
P11 steel Pipe Ends:
Beveled, Threaded, Square Cut & Coupled.
ASTM A335 P11 Pipe (ASME SA335 P11) is Chrome Moly Alloy Seamless
Pipe that used for high-temperature services, P11 Grade Pipe Chrome
content at 1.00% to 1.50%, Moly content 0.44% to 0.65%, Minimum
tensile strength 415MPa, minimum yield strength 205Mpa.
P11 pipe material has high toughness and high wear and tear
resistance, it could be used to manufacture pipe fittings like
elbow, tee, reducers, and flanges as following standard:
Pipe fittings standard: ASTM A234 WP11
Flange Standard: ASTM A182 F11
Equivalent Steel Plate Standard: ASTM A387 Grade 11/ ASME SA387
Grade 11
Welded pipe standard: ASTM A691 1-1/4 CR
ASTM A335 specificaton covers nominal wall and minimum wall
thickness pipe that with alloy material and manufactured in
seamless type. The pipe under this specification shall be suitable
for bending, flanging, and all the other similar processing and
formations. Although it shall be good for fusion welding.
ASTM A335 P11, P22 – Common Use Grade
ASTM A335 P11 and P22 are most common use in Chrome Moly Alloy
Pipes for high temperature environment, for power industry and
petro-chemical plants.
Chrome Moly Alloy ASTM A335 pipe
ASTM A335 pipe called chrome moly pipe as they have a high level of
Chromium and Molybdenum presence in it. While Molybdenum increases
the overall strength, resistance, elasticity, hardenability and
overall quality, moly ensures that the material is more resistant
to softening, restrains the growth of grains and lessens the
chances of embrittlement. It is the single additive that is
responsible for the increase in high temperature resistance (to
540-750°C) and it also improves the corrosion resistance to steel.
Key Elements – Chromium
Chromium is a key component that is used in the manufacture of
stainless steel. If the chromium levels are above 12%, it can be
classified as stainless steel. The oxidation resistance potential
of chrome is irreplaceable even in elevated temperatures. The
hardness, tensile and yield strength is better at standard
temperatures. Due to the composition of the material, it is ideal
to be used in power plants, refineries, petro-chemical plants and
other oil field services when there is transportation under high
temperatures and pressures involved.
Referred standards for making ASTM A335 P11 Pipe
a. ASTM A999/ A999M, Standard specification for common requirements
for stainless and alloy steel pipe
b. ASTM A92, Hardness test methods for steel materials
c. E213, Instructions and practice for ultra sonic testing of steel
pipe and tube
d. E309 Eddy-Current Examniation methods for steel pipe products
e, E381, Inspection methods for steel bars, beams, profiles,
billets and forgings.
f, E527, Numbering metals and alloys practices
g, E570, Instructions for flux leakage examniation of ferromagnetic
steel pipe products
Dimension standard: ASME B36.10M
Manufacturing process: Hot finished or Cold drawn
Heat treatment methods different for each grade
Tests
Tensile tests: Transverse and Longitudinal
Flattening test
Hardness test
Bend Test
Our Supply Range
- Standard and Grades: ASTM A335 / ASME SA335 Grade P11, P22, P5, P9,
P11
- Material types: Chrome Moly Alloy
- Manufacturing types: Seamless pipe by hot rolled or cold drawn
- Sizes: 1/2” to 24”
- Wall thickness: SCH 40, SCH STD, SCH 80, SCH XS, SCH 160
- Length: 6 meters, 12 meters or customized.
- Surface treatment: Polished, Varnished, 3PE, FBE
- Ends: PE (Plain End), BE (Beveled Ends)
