Nickel Alloy Plate High Temperature Resistant Alloys Incoloy 800
Plate with En DIN Standard
Products Specification
| Product Name | Nickel Alloy Plate & Sheet |
| Thinckness | Cold rolled:0.3mm-3mm Hot rolled: 3.0mm-30mm |
| Standard Size | Cold Rolled 1000*2000mm 1219*2438mm 1500*3000mm |
| Hot Rolled 1500*6000mm 1800*6000mm 2000*6000mm |
| Service | Cutting (laser cutting, plasma cutting, cutting machine), Bending,
forged produce |
| Surface Service | Raw finishing (2B NO.1) Finishing(HL 8K Checkered.etc) |
| Standard | ASTM, AISI, DIN, EN, GB, JIS |
| Mainly Grade | ASTM Grade: Incoloy 800 / 800H ,Incoloy 825,Inconel 600 , Inconel
625 ,Inconel 718, Inconel690,Hastelloy B , Hastelloy B-2 ,
Hastelloy C276 , Hastelloy C4, Hastelloy C2000,
ASME Grade: N08800 N08810 N08825 N06600 N06601 N06690 N10001 N10665
N10276 N06455 N06625
EN 1.4588 2.4858 2.4817 2.4642 2.4617 2.4819 2.461 2.4856 |
| Brand | TISCO BAOSTEEL ZPSS LISCO JISCO |
Introduction
INCOLOY alloys belong to the category of super austenitic stainless
steels. These alloys have nickel-chromium-iron as the base metals,
with additives such as molybdenum, copper, nitrogen and silicon.
These alloys are known for their excellent strength at elevated
temperatures and good corrosion resistance in a variety of
corrosive environments.
INCOLOY alloy 800 is an alloy of nickel, iron and chromium. The
alloy is capable of remaining stable and maintaining its austenitic
structure even after long time exposures to high temperatures.
Other characteristics of the alloy are good strength, and high
resistance to oxidizing, reducing and aqueous environments. The
standard forms in which this alloy is available are round, flats,
forging stock, tube, plate, sheet, wire and strip.
This datasheet will look into the chemical composition, properties
and applications of INCOLOY 800.
Chemical Composition
The chemical composition of INCOLOY alloy 800 is given in the
following table.
| Element | Content (%) |
|---|
| Iron, Fe | ≥39.5 |
| Nickel, Ni | 30-35 |
| Chromium, Cr | 19-23 |
| Manganese, Mn | ≤1.5 |
| Others | Remainder |
Physical Properties
The following table discusses the physical properties of INCOLOY
alloy 800.
| Properties | Metric | Imperial |
|---|
| Density | 7.94 gm/cm3 | 0.287 lb/in3 |
Mechanical Properties
The mechanical properties of INCOLOY alloy 800 are tabulated below.
| Properties | Metric | Imperial |
|---|
| Tensile strength(annealed) | 600 MPa | 87 ksi |
| Yield strength(annealed) | 275 MPa | 39.9 ksi |
| Elongation at Break | 45% | 45% |
Other Designations
Some of the designations used to denote INCOLOY alloy 800 are
listed below:
| UNS N08800 | AMS 5766 | AMS 5871 | ASTM B163 | ASTM B366 |
| ASTM B407 | ASTM B408 | ASTM B409 | ASTM B514 | ASTM B515 |
| ASTM B564 | DIN 1.4876 | | | |
Forming
This alloy exhibits good ductility and hence can be formed using
conventional methods.
Hot working
INCOLOY alloy 800 can be hot worked at temperature ranges of
871-1232°C (1600-2250°F).
Cold Working
Cold working may be done on the alloy using standard tooling.
Annealing
INCOLOY alloy 800 may be annealed after cold working. Annealing
should be done at 982°C (1800°F) for 15 min and then the alloy
should be air cooled.
Applications
INCOLOY alloy 800 is used in the following applications:
- Heat exchangers
- Carburising equipment
- Heating elements
- Sheathing and nuclear steam generator tubing.

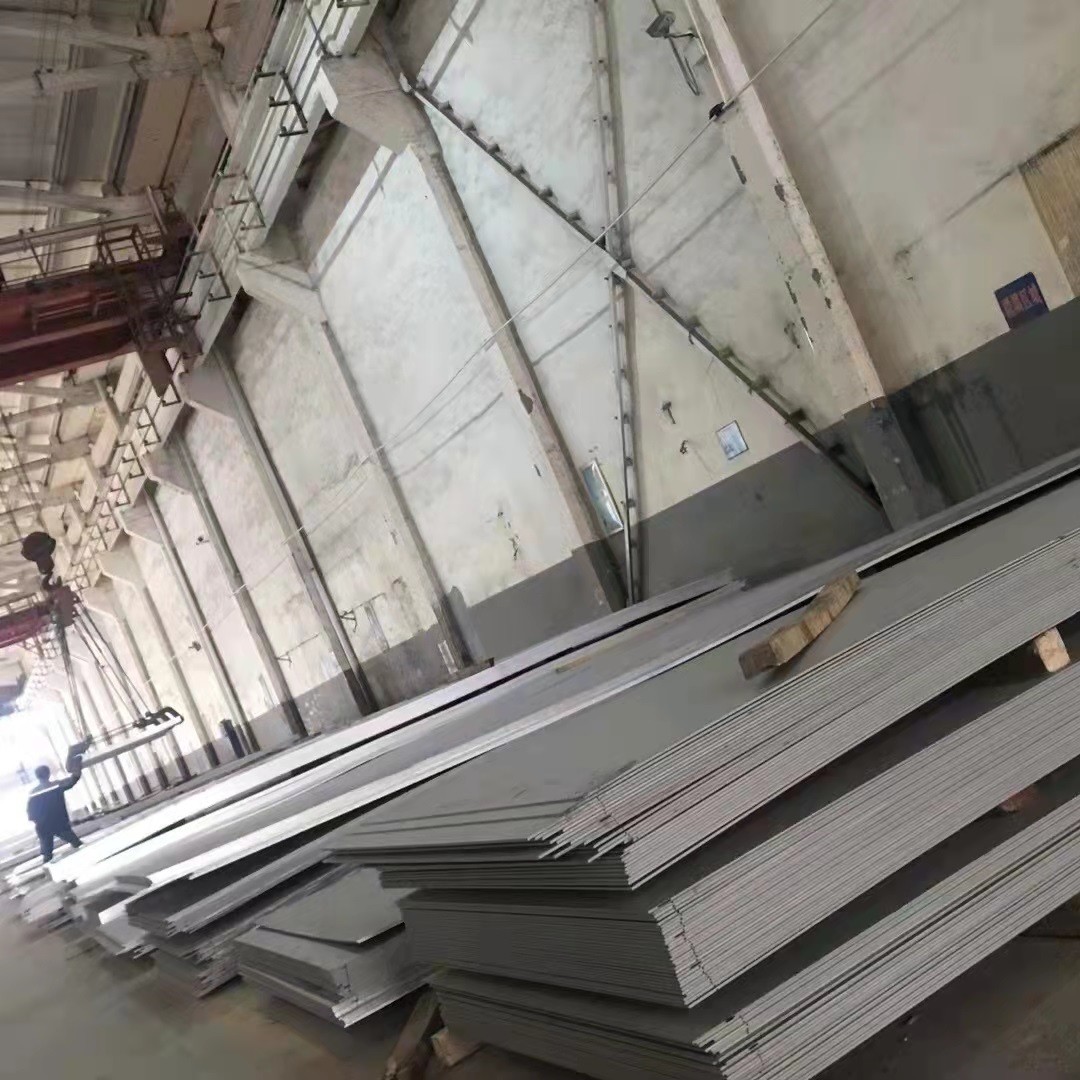

Products Show
