10-350mm Hot Rolled Round Bar 17cr2ni2moa 6m 17CrNiMo6

Ask Lasest Price
Brand Name :	DELTA
Model Number :	17CrNiMo6
Certification :	ISO
Price :	600-850 USD/Ton
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20Ton per week
Delivery Time :	5 - 12 days based on the quantity
MOQ :	1 Ton

Add to Cart

Product Details
Company Profile

10-350mm Hot Rolled Round Bar 17cr2ni2moa 6m 17CrNiMo6

17CrNiMo6 Hot Rolled Alloy Bar 17cr2ni2moa 17CrNiMo6 Steel Round Bar Equivalent

17CrNiMo6 Steel Round Bar Hot Rolled Alloy Bar 17Cr2Ni2MoA 17Crnimo6 Steel Equivalent

Grade :

18CrNiMo7-6

Number:

1.6587

Classification:

Alloy special steel

Standard:

EN 10084: 2008 Case hardening steels. Technical delivery conditions

Equivalent grades:

Go here

Chemical composition % of steel 18CrNiMo7-6 (1.6587): EN 10084-2008

Elements not quoted in this table shall not be intentionally added to the steel without the agreement of the purchaser, other than for the purpose of finishing the heat.
Steels with improved machinability as a result of the addition of lead or higher sulfur contents, depending on the manufacturing process up to around 0.1 % S, may be supplied on request. In this case, the upper limit of the manganese content may be increased by 0.15 %

C	Si	Mn	Ni	P	S	Cr	Mo
0.15 - 0.21	max 0.4	0.5 - 0.9	1.4 - 1.7	max 0.025	max 0.035	1.5 - 1.8	0.25 - 0.35

Mechanical properties of steel 18CrNiMo7-6 (1.6587)

Nominal thickness (mm):	to 16

Rm - Tensile strength (MPa) hardening and tempering at 200	1200

Brinell hardness (HBW): (+S)	255
Brinell hardness (HBW): (+A)	229
Brinell hardness (HBW): (+TH)	179 - 229
Brinell hardness (HBW): (+FP)	159 - 207

Equivalent grades of steel 18CrNiMo7-6 (1.6587)
Warning! Only for reference

EU
EN

Germany
DIN,WNr

France
AFNOR

England
BS

Italy
UNI

China
GB

Finland
SFS

Inter
ISO

18CrNiMo7-6

17CrNiMo6

17CrNiMo7

18NCD6

820A16

18NiCrMo7

17Cr2Ni2Mo

511

18CrNiMo7

Post free buying requirement of steel 18CrNiMo7-6 (1.6587)
Mechanical properties

ReH	Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale
Rm	Tensile strength / Zugfestigkeit / Resistance a la traction
A	Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal
J	Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc

Heat treatment conditions

+A	Soft annealed
+AC	Annealed to achieve spheroidization of the carbides
+AR	As rolled
+AT	Solution annealed
+C	Cold drawn / hard
+CR	Cold rolled
+FP	Treated to ferrite-pearlite structure and hardness range
+I	Isothermal annealing
+LC	Cold drawn / soft
+M	Thermo mechanical rolling
+N	Normalized
+NT	Normalized and tempered

+P	Precipitation hardened
+PE	Peeled
+QA	Air quenched and tempered
+QL	Liquid quenched and tempered
+QT	Quenched and tempered
+S	Treated to improve shearability
+SH	As rolled and turned
+SR	Cold drawn and stress relieved
+T	Tempered
+TH	Treated to hardness range
+WW	Warm worked
+U	Untreated

Alloy special steel
Chemical composition of steel 18CrNiMo7-6 (1.6587), Standards of steel 18CrNiMo7-6 (1.6587)
Mechanical Properties of steel 18CrNiMo7-6 (1.6587) Equivalent grades of steel 18CrNiMo7-6 (1.6587)
Tensile Strength, Elongation, Proof strength, Hardness

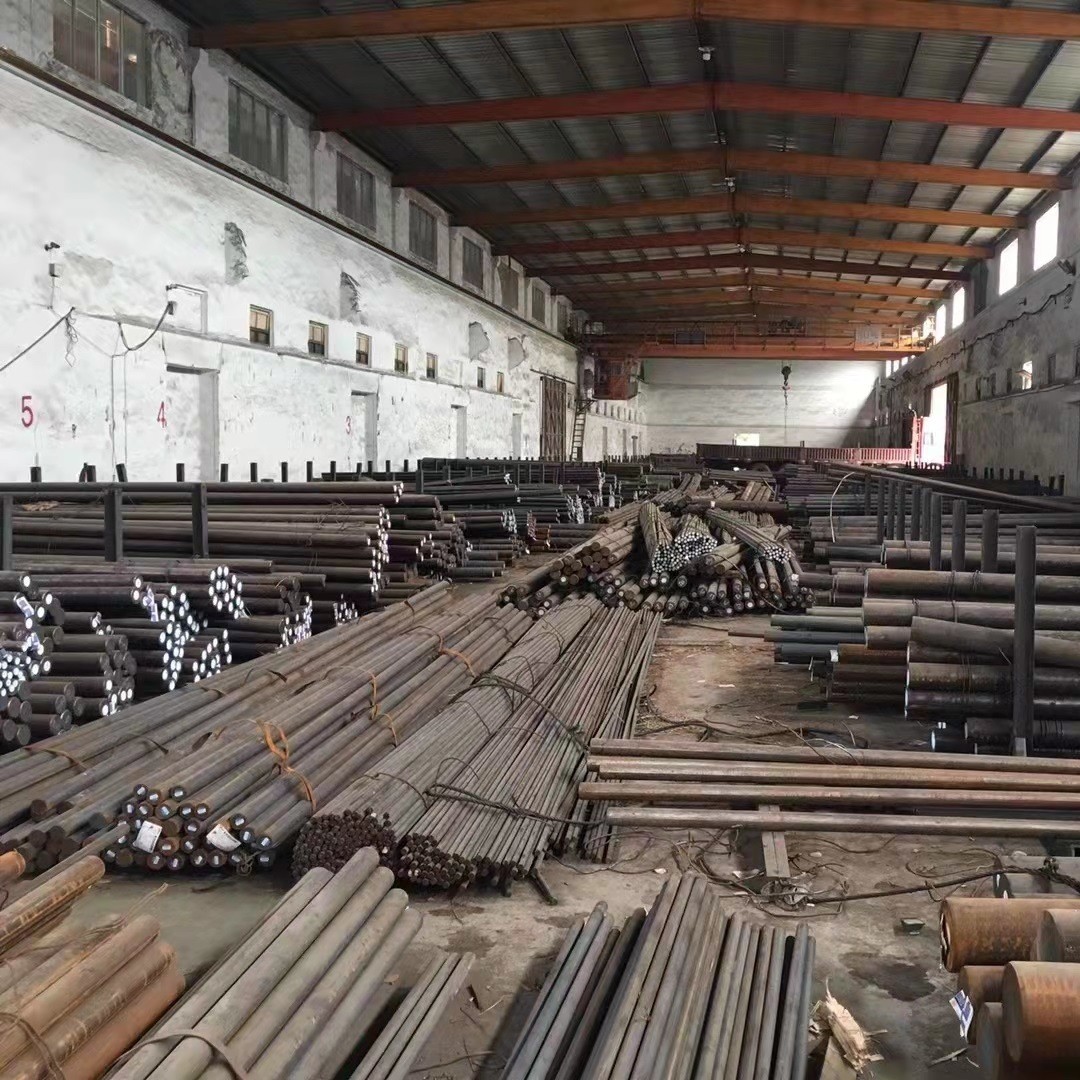

Picture Show

10-350mm Hot Rolled Round Bar 17cr2ni2moa 6m 17CrNiMo6
