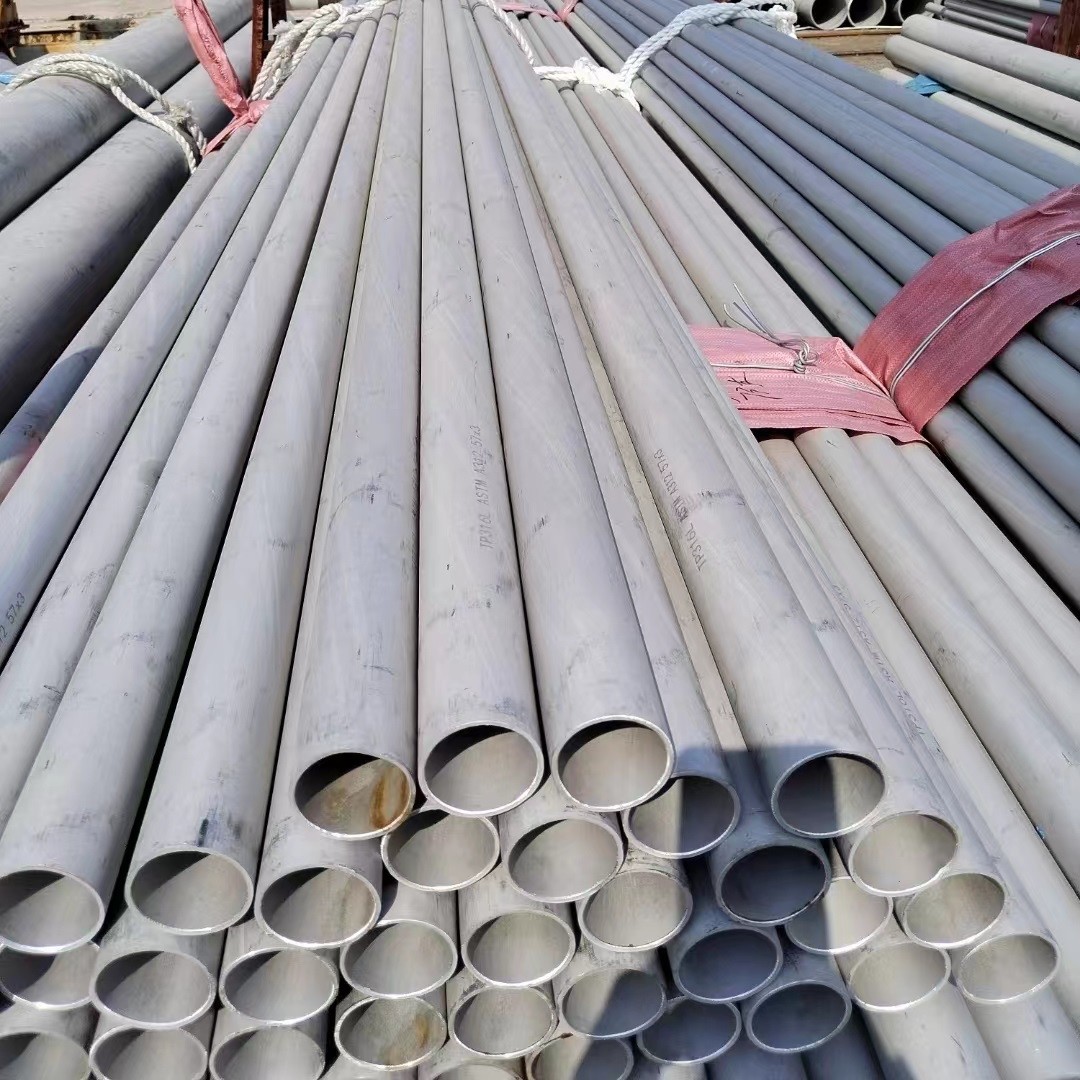

Grade 904L Stainless Steel Pipe ASTM EN DIN Standard UNS N08904 SS Pipe Tube DN10-DN300
UNS N08904 / 904L STAINLESS STEEL PIPE BRIEF INTRODUCTION
904l stainless steel pipe (00 cr20ni25mo4. 5 cu) has better corrosion resistance of austenitic stainless steel, because of adding 1.5% copper, for reducing acid,such as sulfuric acid and phosphoric acid also has very good corrosion resistance, in addition, has the characteristics of low carbon in welding purposes.
NAME:904L STAINLESS STEEL PIPE SEAMLESS PIPE OD:6-720MM SEAMLESS PIPE W.T:1-50MM
OTHER NAME: 904L SUPER STAINLESS STEEL PIPE WELDED PIPE OD:12-2500MM WELDED PIPE W.T:1-40MM
SS904L STAINLESS STEEL PIPE PRODUCT INTRODUCTION:
- Corrosion resistance of 904L stainless steel pipe s
- Stainless steel seamless pipe, welded pipe , square pipe. Its specification: the outer diameter of the seamless tube is 6-720mm, the wall is 1-50mm. Welding tube outer diameter 12-2500mm, wall thickness 1-40 MM.
904L STAINLESS STEEL PIPE FEATURES:
- Because of the low carbon content of 904L (0.020%), there is no carbon deposition in the case of general heat treatment and welding. This eliminates the risk of the corrosion of the crystals that occur after heat treatment and welding. Due to high chromium nickel molybdenum content and the addition of copper, 904L stainless steel pipe s
- Even in reductive environments such as sulfuric acid and formic acid can be passivated. High nickel content also has low corrosion speed in active condition. In the concentration range of 0 ~ 98% pure sulfuric acid, the use of 904 l temperature can be as high as 40 ℃. In pure phosphoric acid in the range of 0 ~ 85%, its corrosion resistance is very good. In the industrial phosphoric acid produced by wet process, the corrosion resistance of impurities has a strong effect.
- In all kinds of phosphoric acid,904L stainless steel pipe s are superior to normal stainless steel tubes. In the highly oxidized nitric acid, the corrosion resistance is low compared to the high alloy steel, which is non-molybdenum. In hydrochloric acid, the use of 904L stainless steel pipe is limited to a low concentration of 1-2%. In this concentration range. The corrosion resistance of 904L stainless steel is better than conventional stainless steel. The 904L stainless steel pipe has a high resistance to point corrosion.
- It is also good to resist the corrosion resistance of the chloride solution. The high nickel content of the 904L stainless steel pipe decreases the corrosion speed of the pit and crack. Ordinary austenitic stainless steel in the temperature above 60 ℃, in a rich chloride environment sensitive to stress corrosion may be, by improving the nickel content of stainless steel, can reduce the sensitization. Because of the high content of nickel, 904 l stainless steel tube in chloride solution, concentration of hydroxide solution and rich hydrogen sulfide environment, has the very high resistance to stress corrosion cracking ability.
- AL – 904L is designed for harsh environment corrosion condition of a low carbon content, high alloying austenitic stainless steel, 316 l and 317 l has better corrosion resistance, both price and performance, cost-effective high. By adding 1.5 percent of the copper, it is highly resistant to acid, such as sulfuric acid and phosphoric acid.
904L STAINLESS STEEL PIPE WEIGHT:
Weight (kg) = length (m) * width (m) * thickness (mm) * density
Stainless steel ratio: the chromium stainless steel takes 7.75t/M3 / M3 / M3, 7.87 t/M3
The formula of theoretical weight of stainless steel plate
Steel theory weight length (mm) x width (mm) x thickness (mm) x density = weight (kg)
904L STAINLESS STEEL PIPE CHEMICAL COMPOSITION:
| ITEM | C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
| ASTM | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00～23.00 | 23.00～28.00 | 4.0～5.0 | 1.00～2.00 |
5.UNS N08904 / 904L STAINLESS STEEL PIPE SEAMLESS AND WELDED PRODUCTION PROCESS
SS904L STAINLESS STEEL PIPE SEAMLESS PRODUCTION PROCESS
TP904L STAINLESS STEEL PIPE SUPPLIERS,MANUFACTURER ,KCM SPECIAL STEEL, CONTACT US TO GET HIGH QUALITY 904L STAINLESS STEEL PIPE
904L STAINLESS STEEL PIPE WELDED PRODUCTION PROCESS
UNS N08904 / 904L STAINLESS STEEL PIPE SUPPLIERS,MANUFACTURER ,KCM SPECIAL STEEL, CONTACT US TO GET HIGH QUALITY 904L STAINLESS STEEL PIPE
UNS N08904 / 904L STAINLESS STEEL PIPE SURFACE:
SS904L STAINLESS STEEL PIPE SUPPLIERS,MANUFACTURER ,KCM SPECIAL STEEL, CONTACT US TO GET HIGH QUALITY 904L STAINLESS STEEL PIPE
904L STAINLESS STEEL PIPE APPLICATIONS:
- SHIPBUILDING INDUSTRY
- CHEMICAL INDUSTRY
- WATER INDUSTRY
- STEEL INDSUTRY
- POWER STATION INDUSTRY
- OIL&GAS INDSUCTRY
- IN MARINE INDUSTRY
- OFFSHORE&ONSHORE INDSUTRY
- FOOD INDUSTRY
- MEICAL INDSTURY
904L STAINLESS STAINLESS PIPE AVAILABLE SIZES IN STOCK AND ARRANGE PRODUCTION:
| INCH | inch sizc (ID) | OD | STANDARD WALL THICKNESS |
| SCH 5s | SCH 10S | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | STD | XS | XXS |
| 1/8 | DN6 | 10.3 | – | 1.24 | – | – | – | 1.73 | – | 2.42 | – | – | – | – | 1.73 | 2.41 | – |
| 1/4 | DN8 | 13.7 | – | 1.65 | – | – | – | 2.24 | – | 3.02 | – | – | – | – | 2.24 | 3.02 | – |
| 3/8 | DN10 | 17.1 | – | 1.65 | – | – | – | 2.31 | – | 3.2 | – | – | – | – | 2.31 | 3.2 | – |
| 1/2 | DN15 | 21.3 | 1.65 | 2.11 | – | – | – | 2.77 | – | 3.73 | – | – | – | 4.78 | 2.77 | 3.73 | 7.47 |
| 3/4 | DN20 | 26.7 | 1.65 | 2.11 | – | – | – | 2.87 | – | 3.91 | – | – | – | 5.56 | 2.87 | 3.91 | 7.82 |
| 1 | DN25 | 33.4 | 1.65 | 2.77 | – | – | – | 3.38 | – | 4.55 | – | – | – | 6.35 | 3.38 | 4.55 | 9.09 |
| 1.1/4 | DN32 | 42.2 | 1.65 | 2.77 | – | – | – | 3.56 | – | 4.85 | – | – | – | 6.35 | 3.58 | 4.85 | 9.7 |
| 1.1/2 | DN40 | 48.3 | 1.65 | 2.77 | – | – | – | 3.68 | – | 5.05 | – | – | – | 7.14 | 3.68 | 5.08 | 10.15 |
| 2 | DN50 | 60.3 | 1.65 | 2.77 | – | – | – | 3.91 | – | 5.54 | – | – | – | 8.74 | 3.91 | 5.54 | 11.07 |
| 2.1/2 | DN65 | 73 | 2.11 | 3.05 | – | – | – | 5.16 | – | 7.01 | – | – | – | 9.53 | 5.16 | 7.01 | 14.02 |
| 3 | DN80 | 88.9 | 2.11 | 3.05 | – | , – | – | 5.49 | – | 7.62 | – | – | – | 11.13 | 5.49 | 7.52 | 15.24 |
| 3.1/2 | DN90 | 101.6 | 2.11 | 3.05 | – | – | – | 5.74 | – | 8.08 | – | – | – | – | 5.74 | 8.08 | – |
| 4 | DN100 | 114.3 | 2.11 | 3.05 | – | – | – | 6.02 | – | 8.58 | – | 11.13 | – | 13.49 | 6.02 | 8.56 | 17.12 |
| 5 | DN125 | 141.3 | 2.77 | 3.4 | – | – | – | 6.55 | – | 9.53 | – | 12.7 | – | 15.88 | 6.55 | 9.53 | 18.05 |
| 6 | DN150 | 168.3 | 2.77 | 3.4 | – | – | – | 7.11 | – | 10.97 | – | 14.27 | – | 18.26 | 7.11 | 10.97 | 21.95 |
| 8 | DN200 | 219.1 | 2.77 | 3.76 | – | 6.35 | 7.04 | 8.18 | 10.31 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 8.18 | 12.7 | 22.23 |
| 10 | DN250 | 273.1 | 3.4 | 4.19 | – | 6.35 | 7.8 | 9.27 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 9.27 | 12.7 | 25.4 |
| 12 | DN300 | 323.9 | 3.96 | 4.57 | – | 6.35 | 8.38 | 10.31 | 14.27 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 9.35 | 12.7 | 25.4 |
| 14 | DN350 | 355.5 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 11.13 | 15.09 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | 9.53 | 12.7 | – |
| 16 | DN400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 12.7 | 16.66 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | 9.53 | 12.7 | – |
| 18 | DN450 | 457 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 14.27 | 19.05 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | 9.53 | 12.7 | – |
| 20 | DN500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 15.09 | 20.62 | 26.19 | 32.54 | 38.1 | 44.45 | , 50.01 | 9.53 | 12.7 | – |
| 22 | DN550 | 559 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | – | 22.23 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | 9.53 | 12.7 | – |
| 24 | DN600 | 610 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 17.48 | 24.61 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | 9.53 | 12.7 | – |
| 26 | DN650 | 660 | – | – | 7.92 | 12.7 | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 28 | DN700 | 711 | – | – | 7.92 | 12.7 | 15.88 | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 30 | DN750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 32 | DN800 | 813 | – | – | 7.92 | 12.7 | 15.88 | 17.48 | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 34 | DN850 | 864 | – | – | 7.92 | 12.7 | 15.88 | 17.48 | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 36 | DN900 | 914 | – | – | 7.92 | 12.7 | 15.88 | 19.05 | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 38 | DN950 | 965 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 40 | DN1000 | 1015 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 42 | DN1050 | 1067 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 44 | DN1100 | 1118 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 46 | DN1150 | 1188 | – | – | – | – | – | – | – | – | – | – | – | – | 9.53 | 12.7 | – |
| 48 | DN1200 | 1219 | – | – | – | – | – | – | – | – | – | – |
