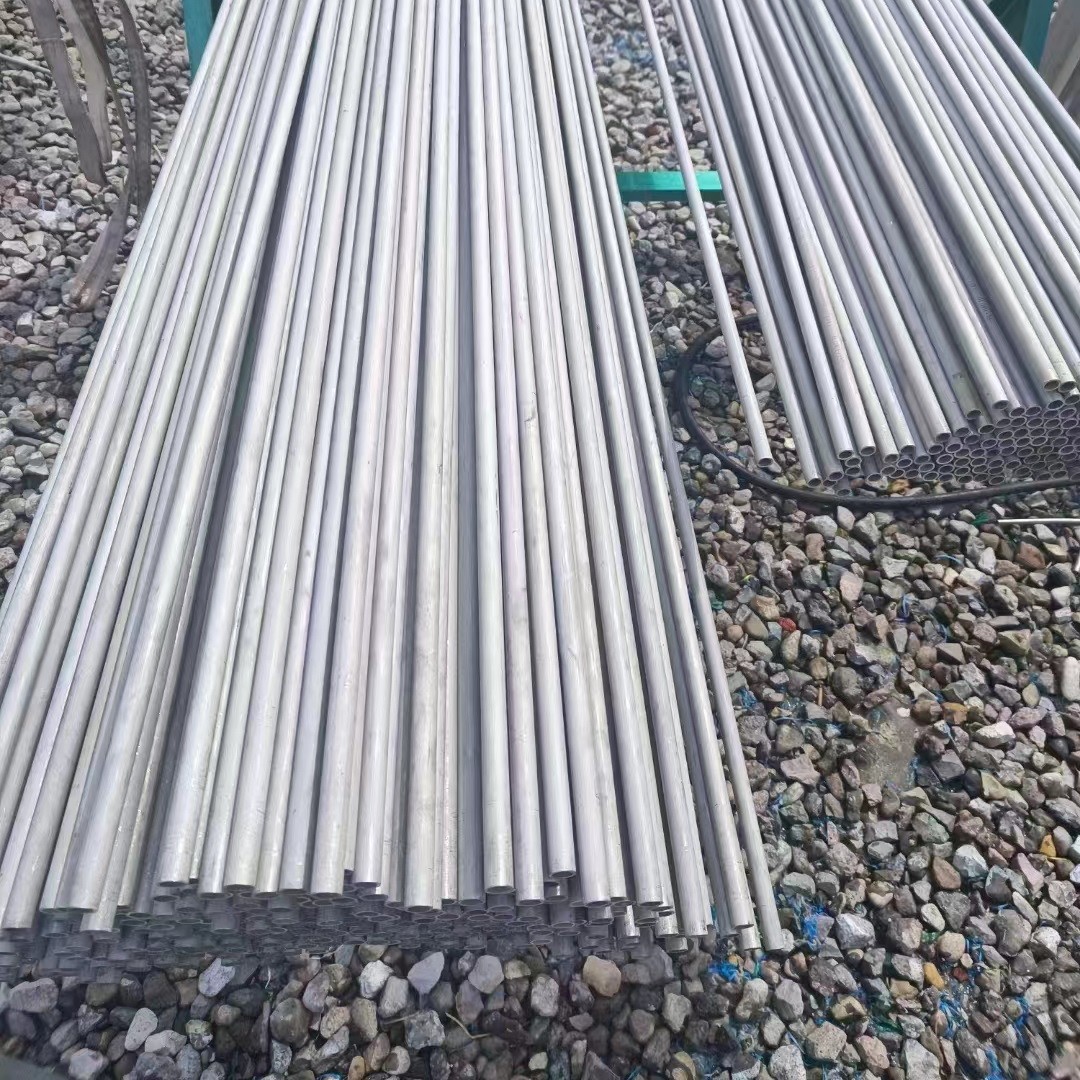

High Hardness 630 Stainless Steel Tubing/ 17-4 Stainless Steel Pipe
/ 17-4PH Stainless Steel
17-4PH is a martensitic precipitation hardening stainless steel.
The performance characteristic of 17-4PH is that it is easy to
adjust the strength level, which can be adjusted by changing the
heat treatment process. 17-4PH has good attenuation performance,
strong resistance to corrosion fatigue and water droplets.
Features: After heat treatment, the mechanical properties of the
product are more perfect, and can reach a compressive strength of
up to 1100-1300 Mpa (160-190 ksi). This grade cannot be used at
temperatures higher than 300°C (572°F) or very low temperatures. It
has good corrosion resistance to the atmosphere and diluted acids
or salts.
Technical Data Sheet of 17-4PH:
| Product Name | 17-4PH (UNS S17400/1.4542) Stainless Steel Seamless Pipes |
| Type | Seamless |
| Shape | Square / Rectangular / Round |
| Standard | GB, AISI, ASTM, DIN, EN, JIS |
| Grade | Stainless steel 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L /
904L / 2205 / 2507 / 32760 / 253MA / 254SMo / XM-19 / S31803 /
S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65 etc |
| Monel 400 / Monel K-500 |
| Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690
/ Inconel 718 / Inconel X-750 |
| Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT |
| Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926 |
| Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic C263
/ L-605 |
| Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C /
Hastelloy C-276 / Hastelloy C-22 |
| Hastelloy C-4 / Hastelloy C-2000 / Hastelloy G-35 / Hastelloy X /
Hastelloy N |
| PH stainless steel 15-5PH / 17-4PH / 17-7PH |
| Out diameter | Seamless Pipe 6MM - 1174MM or customized |
| Thickness | Seamless Pipe 1mm - 80mm or customized |
| Max Length | Seamless Pipe 12000mm or customized |
| Finish | 2B, Pickling, Polished, Brushed, Sandblast, BA, EP |
| Packing | waterproof polybag, wooden box, end cap, wooden crame/pallet |
| Inspection | TUV, SGS, BV, ABS, LR and so on |
| Application | Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery,
Environmental, Food Processing, Aviation, Chemical Fertilizer,
Sewage Disposal, Desalination, Waste Incineration etc. |
| Processing Service | Machining : Turning / Milling / Planing / Drilling / Boring /
Grinding / Gear Cutting / CNC Machining |
| Deformation processing : Bending / Cutting / Rolling / Stamping |
| Welded |
| Forged |
| Delivery Time | 7-40 days |
| Trade Term | FOB CIF CFR CIP DAP DDP EXW |
| Payment | T/T, L/C, D/A, D/P, Western Union, MoneyGram, According to customer
requirements payments for offline orders. |
| Transportation | By air, by sea, by train, by truck |
| Sample | Free |
| Warranty | Trade assurance after sales service |
Stainless Steel 17-4 PH Pipe, SS UNS S17400 Pipe, Steel DIN 1.4542
Seamless Pipe, Stainless Steel UNS S17400 Seamless Pipe, Stainless
Steel 17-4 PH Seamless Tubing, SS Werkstoff Nr.1.4542 Pipes,
Stainless Steel UNS S17400 Seamless Tubing, Steel 17-4 PH Tubing,
SS 17-4 PH Welded Pipe, Stainless Steel DIN 1.4542 Welded Tubes,
Stainless Steel 17-4 PH Tubes, SS UNS S17400 Tubes Supplier
Specialist of Austenitic Stainless Steel 17-4 PH ERW Pipes, AISI
630 Stainless Steel 17-4 PH Pipe, AMS 5568 SS 17-4 PH Tubes, AMS
5568 Stainless Steel 17-4 PH Pipe, Austenitic Stainless Steel 17-4
PH ERW Tubes, Stainless Steel 17-4 PH Round Pipes, AISI 630 SS 17-4
PH Welded Pipe, 17-4 PH SS EFW Pipes, Stockist of 17-4 PH Electric
Fusion Welded Pipes, Austenitic SS 17-4 PH Pipe, AMS 5568 Stainless
Steel 17-4 PH Tubing, Leading Supplier of SS 17-4 PH Electric
Resistance Welded Pipe
About Stainless Steel 17-4 PH Pipe and Tube
Despite such excellent characteristics, 17-4 Ph Pipes are
unsuitable for working under extremely high or low temperatures. It
means in cryogenic applications where the temperature is above 572
degrees, and these pipes are unsuitable.
What are SS 17-4PH Pipes?
SS 17-4PH Pipes are made of a type of stainless steel alloy that
contains 17% chromium, 4% nickel, 1% manganese, and 0.04% carbon.
The “PH” in the name refers to the precipitation-hardening
properties of the alloy.
What are the advantages of SS 17-4PH Tubes?
The advantages of using SS 17-4PH Tubes include their high strength
& hardness, good corrosion resistance, & good formability. They
also have high resistance to stress-corrosion cracking & good
weldability, which makes them suitable for various industrial
applications. Additionally, 17-4 PH Stainless Steel Tubes maintain
their properties after heat treatment, which makes them a durable &
reliable option for different types of industries.
In which industries are SS 17-4PH Tubes commonly used?
Stainless Steel 17-4PH Tubes are commonly used in aerospace &
aircraft components, chemical processing equipment, oil and gas
industry, food processing equipment, pump shafts, and paper mills.
SS 17-4PH Seamless Tubes are also used in the production of gears,
valves, and fasteners, and in the construction of nuclear power
plants.
SS 17-4 PH Specification
- Specifications : AISI 630 , AMS 5604 , AMS 5622 , AMS 5643 , ASTM
A564 (630) ASTM A693 (630), ASTM A705 (630), MIL C-24111, MIL
P-47183, MILS-81591.
- Standard : ASTM, ASME and API
- Sizes : 1/8” to 48”, Seamless Pipes up to 24”
- Thickness : 0.4mm up to 30.00 mm
- Length : Standard 6-6.1 meter length, 20 Ft, Custom Cut Lengths
- Schedule : SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80,
SCH120, SCH140, SCH160, XXS
- Types : Seamless / ERW / Welded / EFW / Fabricated / CDW
- Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular
Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic
Tubes
- End : Plain End, Beveled End, Treaded
Stainless Steel 17-4 PH Pipes & Tubing Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Cb+Ta |
| SS 17-4 PH | 0.07 | 1.0 max | 1.0 max | 0.03 | 3.0 – 5.0 | Bal | 3.0 – 5.0 | 15.0 – 17.5 | 5 X C / 0.45 |
Stainless Steel 17-4 PH Pipes & Tubes Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
