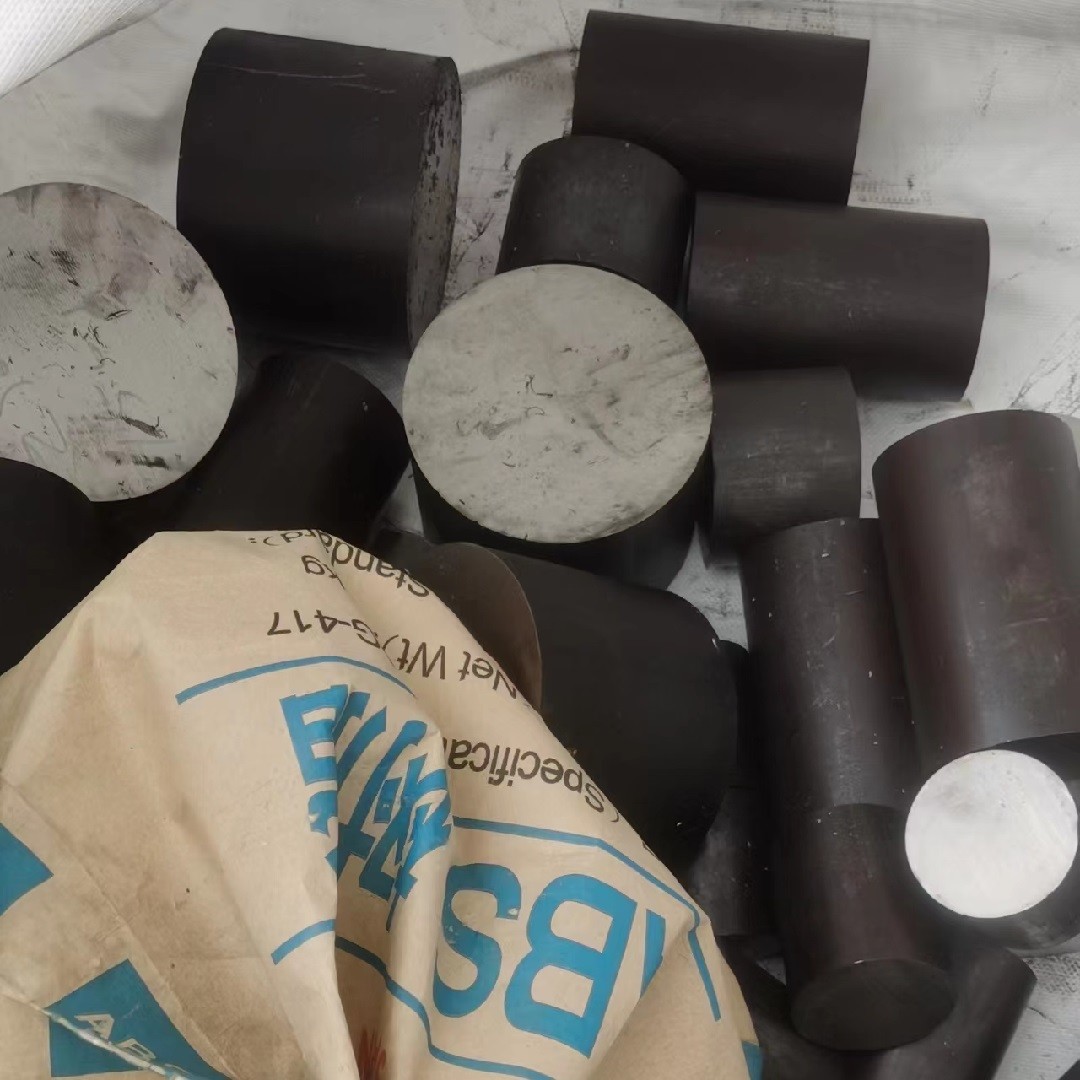

ASTM A276 416 Stainless Steel Round Bar Hot Rolled 8 - 350mm Custom Cutting

Ask Lasest Price
Brand Name :	DELTA
Model Number :	201 304 316L 321 309S 310S 2205 17-4PH XM-19
Certification :	ISO
Price :	2400 - 3500 USD/Ton
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20Ton per week
Delivery Time :	5 - 12 days based on the quantity

Add to Cart

Product Details
Company Profile

ASTM A276 416 Stainless Steel Round Bar Hot Rolled 8 - 350mm Custom Cutting

ASTM A276 416 Stainless Steel Round Bar Hot Rolled Diameter 8 - 350mm Custom Cutting

Products	Stainless Steel Bar
Grade	416
Diameter	4 - 350mm
Length	6m or custom cutting any length as request
Finishing	Bright Bar / Black Surface
Heat Treatment	Solid Solution , ageing
Surface Process	Polishing , Peeling
Other Grade	201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 440A/B/C.etc
MOQ	500 Kgs
Loading Port	Shanghai Port
Processing	Cutting
Packing	Wooden box or cutting as request

416 stainless steel is a magnetic martensitic stainless grade that is known for free machining. It has the largest machinability of all stainless steel grades. 416 stainless steel as well as similiar grades are not as resistant to corrosion as other stainless types, it establishes moderate corrosion with high strength on tempered and hardened conditions.

Chemical Properties:

	C	Mn	Si	P	S	Cr
416	0.15 max	1.25 max	1.00 max	0.06 max	0.15 max	min: 12.0 max: 14.0

Mechanical Properties:

Tempering Temperature (°C)	Tensile Strength (MPa)	Yield Strength 0.2% Proof (MPa)	Elongation (% in 50mm)	Hardness Brinell (HB)	Impact Charpy V (J)
Annealed *	517	276	30	262	–
Condition T **	758	586	18	248-302	–
204	1340	1050	11	388	20
316	1350	1060	12	388	22
427	1405	1110	11	401	#
538	1000	795	13	321	#
593	840	705	19	248	27
650	750	575	20	223	38
* Annealed properties are typical for Condition A of ASTM A582.
** Hardened and tempered Condition T of ASTM A582 – Brinell Hardness is specified range, other properties are typical only.
# Due to associated low impact resistance this steel should not be tempered in the range 400-

Resistance

Resistant to food/water produce, and atmospheric conditions. While 416 stainless steels are not ideal for sulfuric chemical environments such as oceanic settings. Resistant to heat below its treatment temperature.

Processing

Commonly heat-treated at ~1400°F. This grade can be treated to achieve different mechanical properties, but it lacks high corrosion resistance. The ability to heat treat the grade allows it to be viable in many applications. Our 416 stainless steel can come in two conditions including condition Annealed and condition T.

Physical Properties:

Condition	Tensile	Yield	Enlongation	Reduction of Area	Hardness
Annealed	70	40	30	-	262
T	110	85	18	-	248-302

Applications

Pump Shafts
Bolts
Valves
Screws
Gears
Fasteners
Studs
Motor Shafts

Benefits

Corrosion resistance to natural food acids, natural waters, and waste products
Known for being the free machining grade
Its hardenability allows it to be used in various applications
Fair resistance to sealing at mild temperatures

ASTM A276 416 Stainless Steel Round Bar Hot Rolled 8 - 350mm Custom Cutting
