Brand Name : | DELTA |
Model Number : | Hastelloy C276 |
Certification : | ISO |
Price : | 40-45 USD/Kg |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 3 Ton per week |
Delivery Time : | 5 - 12 days based on the quantity |

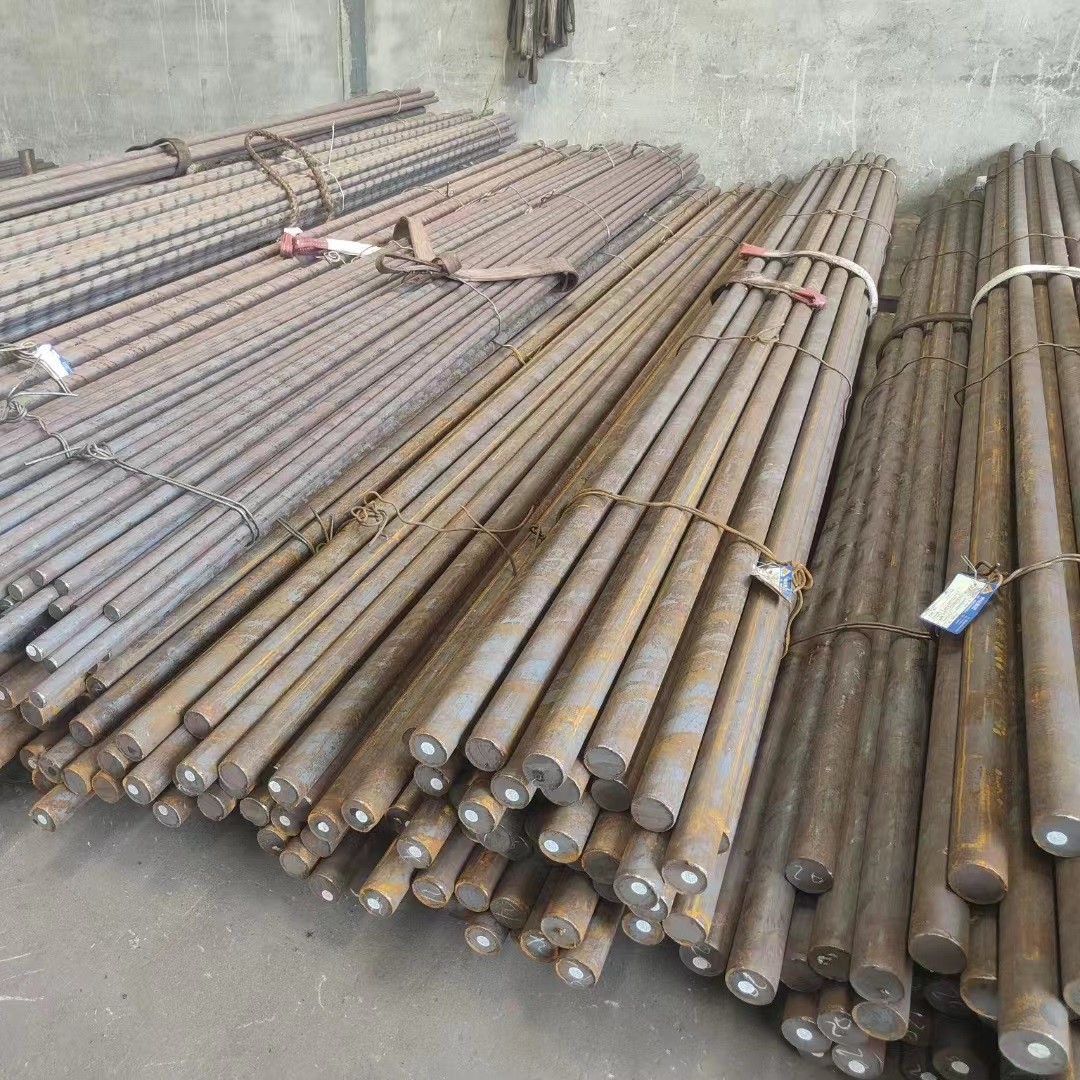

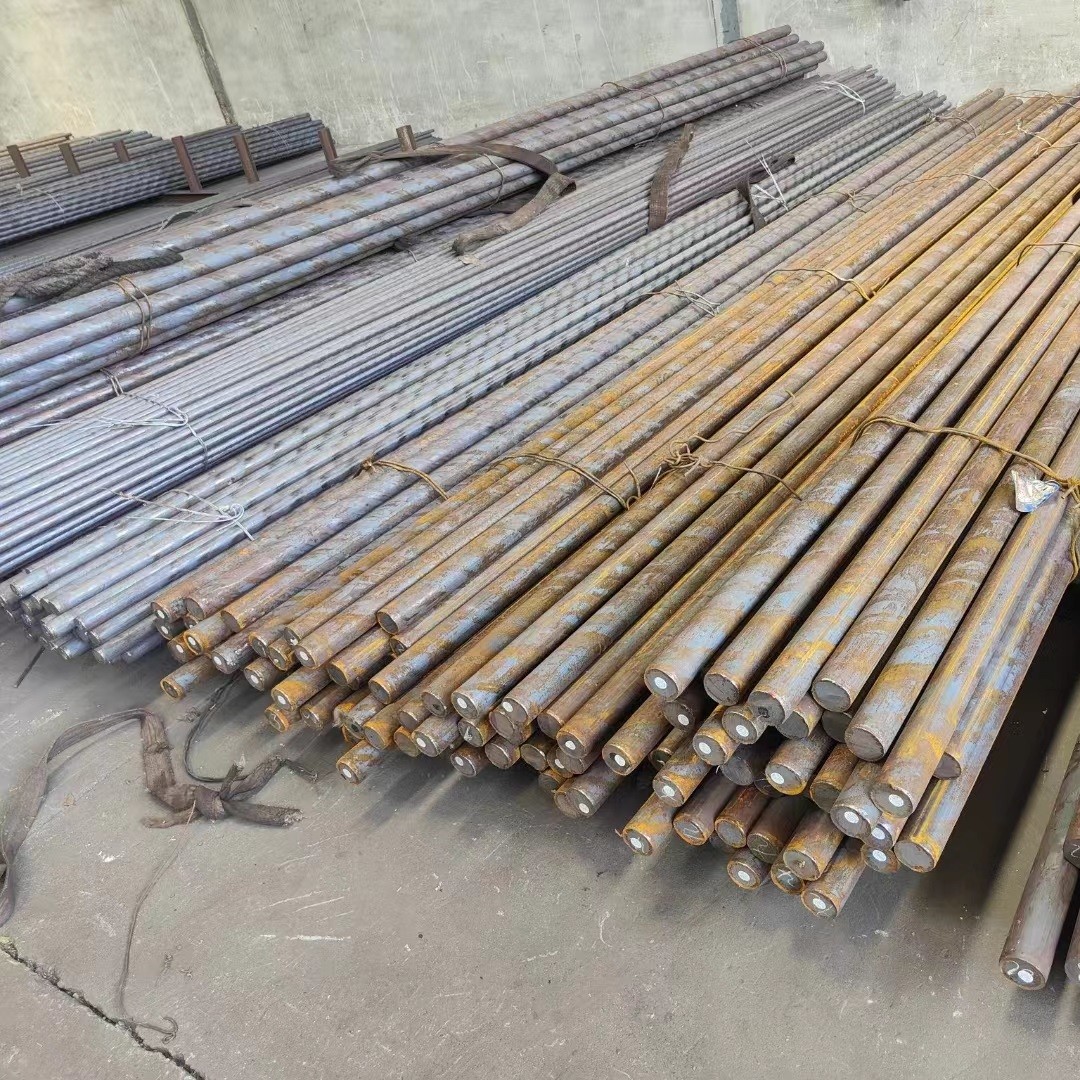

Cold Drawn Bright Hastelloy C276 / UNS N10276 Alloy Bar Diameter 4 - 50mm C276 Bright Bar
Form | Nickel Alloy Bars |
Grade | Hastelloy C276, ASTM B574 UNS N10276, Nickel Alloy C-276 |
Outer Diameter (mm) | 6mm-250mm or according to customer’s requirement |
Length | 1meter, 3 meters and 6 meters or customer’s requirement |
Standard | ASTM, ASME, EN, JIS, DIN, GB/T, etc |
Process Method | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar & Rod |
Surface Finish | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
Other Grade | Hastelloy : B2 B3 C22 C276 G30 X Incoloy: 800 800H 800HT 825 925 A286 330 Inconel: 600 601 617 625 718 725 X-750 Monel: 400 k-500 |
Price Item | EXW FOB CFR CIF |
Payment | 30% TT inadvance, 70% TT Balance against copy of B/L |
Delivery Time | It depends on your bars order total quantity and stock of these mother origin materials. Usually from the start of the order to the completion of production is about 3-4 weeks |
Quality Requirement | Mill test certificate will be offered with shipment, the third party inspection is available |
Main Markets | Europe, North America, Middle East, Southeast Asia |
Metal Test | High or low temperature impact test, metallographic analysis |
Chemical Analysis | As nickel alloy C276 bars standard |
Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures. This nickel alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process application in an as welded condition.
Although there are several variations of the Hastelloy nickel alloy, Hastelloy C-276 is by far the most widely used.
Alloy C-276 is widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas.
Considered one of the most versatile corrosion resistant alloys available, Hastelloy C-276 exhibits excellent resistance in a wide variety of chemical process environments including those with ferric and cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic anhydride, seawater, brine and hypochlorite and chlorine dioxide solutions. In addition, alloy C-276 resists formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical processes in the as-welded condition. This alloy has excellent resistance to pitting and stress corrosion cracking.
Ni | Mo | Cr | Fe | W | Co | Mn | C | V | P | S | Si |
---|---|---|---|---|---|---|---|---|---|---|---|
Remainder | 15.0-17.0 | 14.5-16.5 | 4.0-7.0 | 3.0-4.5 | 2.5 max | 1.0 max | .01 max | .35 max | .04 max | .03 max | .08 max |
Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet / Plate | Bar | Forging | Fitting | Wire |
---|---|---|---|---|---|---|---|---|
B622 | B619 | B622 | B626 | B575 | B574 | B564 | B366 |
Typical Room Temperature Tensile Properties of Annealed Material
Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
---|---|---|---|
Bar | 110.0 | 52.6 | 62 |
Plate | 107.4 | 50.3 | 67 |
Sheet | 115.5 | 54.6 | 60 |
Tube & Pipe | 105.4 | 45.4 | 70 |
![]() |
