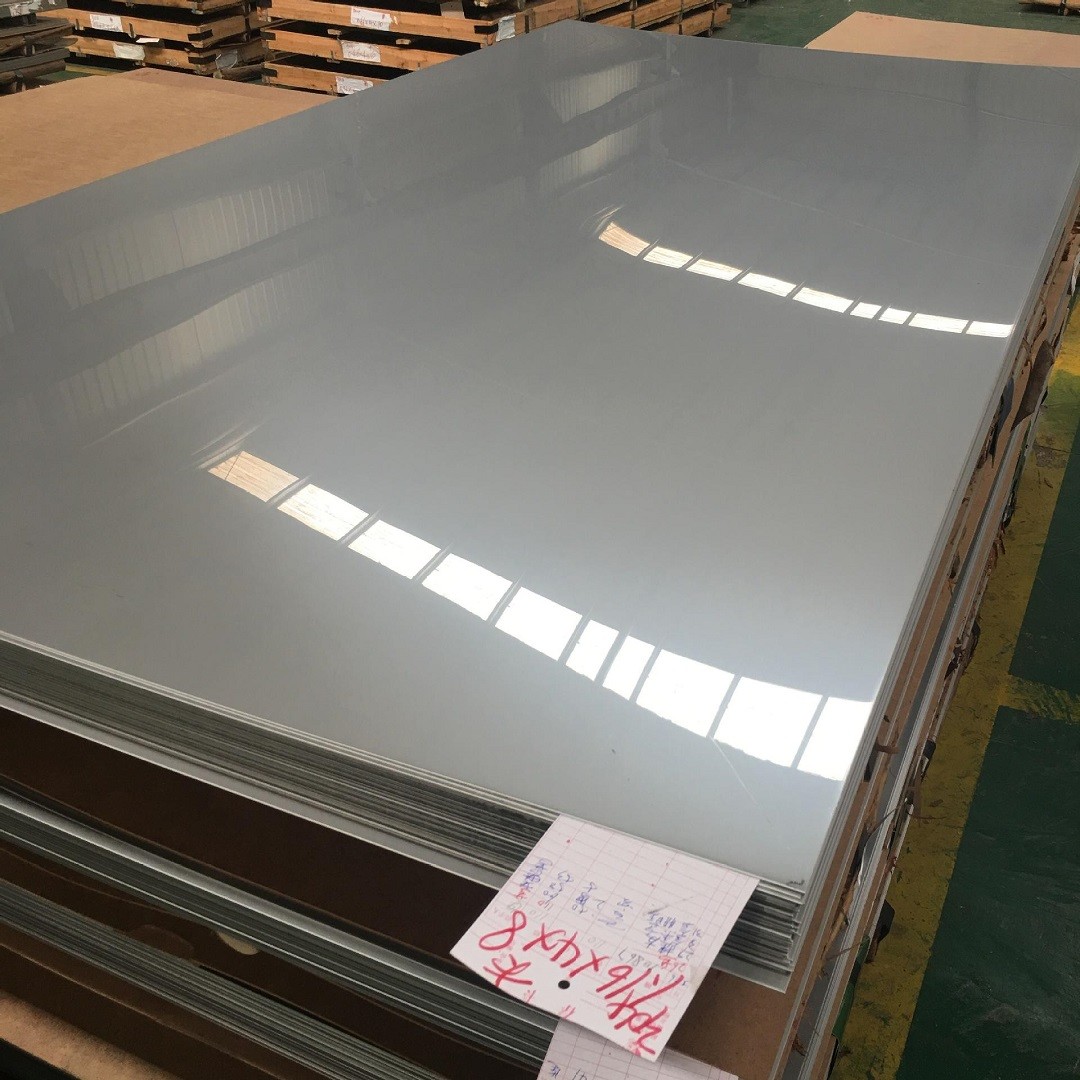

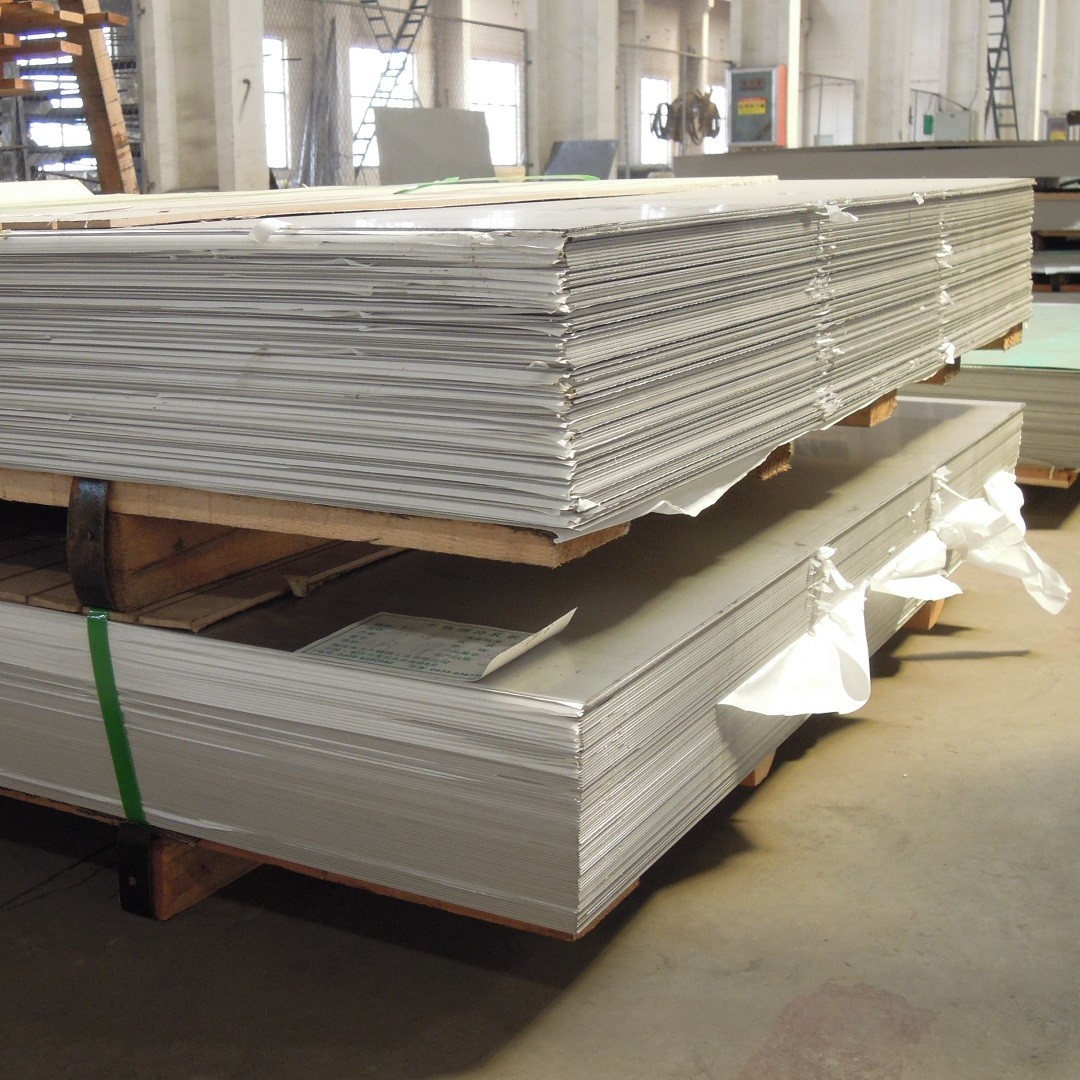

EN 10204-3.1 Certificate Inconel 600 Nickel Alloy Plate & Sheet Thickness 0.4 - 30.0mm Hot Rolled Cold Rolled

Inconel Alloy 600 Composition

Alloy 600 Properties

Alloy 600 properties is that it has a Chemical Composition of Cu 0.5% max, C 0.15% max, Mn 1% max, S 0.015% max, Fe 6% - 10%, Ni 72% min, Cr 14% - 17% and Si 0.5% max. The Density of Inconel 600 is 0.306 lb/in³ (8.47 g/cc). Inconel 600 Ultimate Tensile Strength is 95000 psi (655 MPa). The Ultimate Tensile Strength of Alloy 600 at Elevated Temperature is 79800 psi (550 MPa). The Yield Tensile Strength of Alloy 600 is 45000 psi (310 MPa). The Yield Tensile Strength of Inconel 600 at Elevated Temperature 26100 psi (180 MPa).

UNS Number N06600

Other common names: Alloy 600

In what form is Inconel 600 Available at Steel Tubes India?

• Sheet
• Plate
• Bar
• Pipe & Tube (welded & seamless)
• Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
• Wire

What are the characteristics of Inconel 600?

• Resistant to a wide range of corrosive media.
• Virtually immune to chlorine ion stress corrosion cracking
• Non-magnetic
• Excellent mechanical properties
• High strength and good weldability under a wide range of temperatures

Chemical Composition, %

In what applications is Inconel 600 used?

• Chemical industry
• Aerospace
• Heat treating industry
• Pulp and paper industry
• Food processing
• Nuclear Engineering
• Gas turbine components

Fabrication with Alloy 600 UNS N06600

Alloy 600 can be both hot formed and cold formed using typical processes. Hot working should be performed between 1600° F and 2250° F avoiding any work between1200-1600° F because the ductility decreases in this temperature range. Welding Alloy 600 can be achieved via shielded metal-arc welding, TIG, and MIG.

ASTM Specifications

Mechanical Properties
Typical room temperature Tensile Properties of Annealed Material

Inconel 600 Temperature Range

Inconel 600 temperature range is such that it can be used from cryogenic temperatures to temperatures ranging between 1093 °C (2000 °F). Inconel 600 material is most commonly used in structural engineering because it is perfect for high temperatures above 1000 °F (540 °C). Inconel 600 is durable, stable, strong and corrosion resistant. Inconel 600 is also called a super alloy, because of its intense characteristics, such as performing under tremendous mechanical stress and temperatures and showing resistance against oxidation and creep. Inconel 600 (UNS N06600) is also used in heat treatment furnace components and fittings, heat exchangers, etc.

Inconel 600 Melting Point

Inconel 600 melting point lies between 2470 - 2580 °F (1354 - 1413 °C). The Thermal Conductivity of Inconel 600 is 103 BTU-in/hr-ft²-°F (14.9 W/m-K). The Liquidus of Inconel 600 is 2580 °F (1413 °C). Inconel 600 Solidus is 2470 °F (1354 °C). The Specific Heat Capacity of Inconel 600 is 0.106 BTU/lb-°F (0.444 J/g-°C). The Curie Temperature of Inconel 600 is -317 °F (-194 °C). Inconel 600 Elongation at Break is 45%. The Elongation at Break of Alloy 600 at Elevated Temperature is 42%. The Electrical Resistivity of Inconel 600 is 0.000103 ohm-cm. Inconel 600 Magnetic Permeability is 1.01.

Inconel 600 Equivalent
