Brand Name : | DELTA |
Model Number : | 201 304 316L 316Ti 317L 321 309S 310S 2205 17-4PH XM-19 440C |
Certification : | ISO |
Price : | 2200 - 3500 USD/Ton |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 20Ton per week |
Delivery Time : | 5 - 12 days based on the quantity |

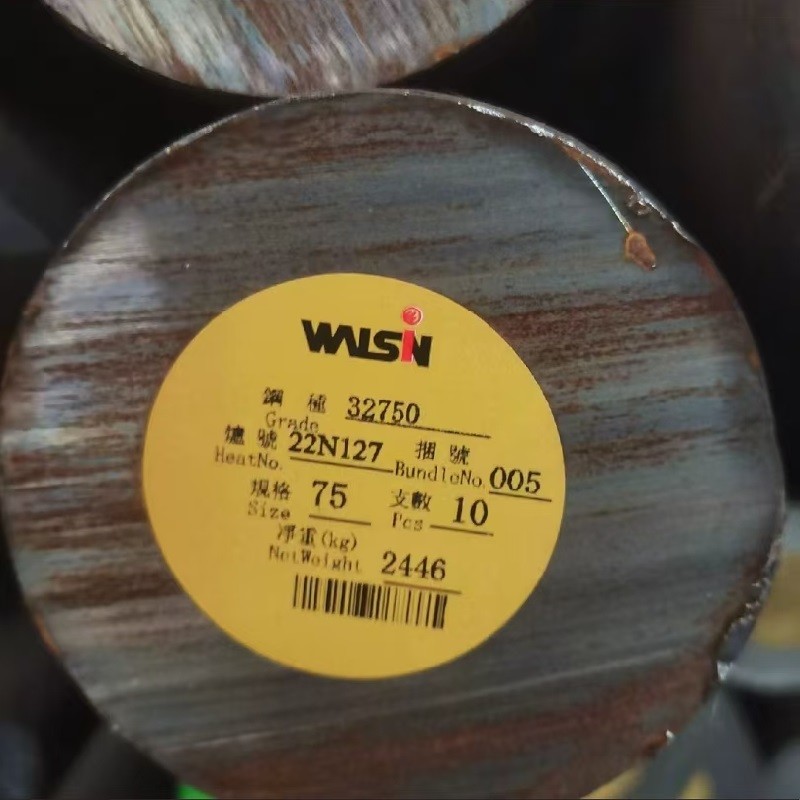

Duplex Stainless Steel Bar S32750 / F53 / 1.4410 SS Bar Black / Bright Shaft
Products Specification
Products | Stainless Steel Bar |
Grade | F53 / S32750 / 1.4410 |
Diameter | 5 - 350mm |
Length | 6m or custom cutting any length as request |
Finishing | Bright Bar / Black Surface |
Heat Treatment | Solid Solution , ageing |
Surface Process | Polishing , Peeling |
Other Grade | 201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 440A/B/C.etc |
MOQ | 500 Kgs |
Loading Port | Shanghai Port |
Processing | Cutting |
Packing | Wooden box or wrapping by PP bag |
F53 is a high alloy duplex stainless steel. F53 has excellent resistance to pitting and crevice corrosion resistance compared with the ordinary austenitic or duplex types. Due to this F53 stainless steel is used primarily in highly corrosive conditions.
Chemical Composition Limits | ||||||||||
Weight% | C | Mn | P | S | Si | Cr | Ni | Mo | N | Cu |
Super Duplex F53 | 0.03 max | 1.2 max | 0.035 max | 0.015 max | 0.8 max | 24-26 | 6-8 | 3-5 | 0.3 | 0.5 max |
Alloy | Tensile Strength ksi | Proof Strength 0.2% ksi (min) | Elongation (%) (min) | Hardness Rockwell C |
Super Duplex F53 Annealed Condition | 110-135 | 80 | 15 | 28 max |
Availability
Super Duplex F53 is available in Bar, for sizes contact Sales.
Specifications
ASTM A182 F53
ASTM A276 F53
ASTM A479 F53
AISI F53
WS 1.4410
X2CrNiMoN25.7.4
AFNOR Z3CND25.07Az
UNS S32750
URANUS 47N(+)
![]() |
