Monel k-500 Alloy Round Bar / Bright bars Cutting Any Length ASTM
B865 Alloy
Products Specification
Standard | AISI, ASTM, BS, DIN, GB, JIS |
Grade | Monel series: 400 K500
Inconel series: 600 601 625 718 725
Incoloy series: 800 800H 825 925
Hastelloy series: B,B2,B3,C,C-276,C-4,C-22
Pure: Ni200, Ni201 |
Specifications | Round bar | Diameter:4~300mm |
Flat bar | Thickness | 1.0~100mm |
Width | 1~1500mm |
Square bar | Size: 4*4-100*100mm |
Length | 2m, 5.8m, 6m, or as required. |
Surface | Black, peeled, polishing, bright, sand blast, hair line, etc. |
Price Term | Ex-work, FOB, CFR, CIF, etc. |
Delivery Time | Standard size is in stock,prompt delivery or as order's quantity. |
Package | Export standard package, bundled or be required.
The inner size of container is below:
20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high)about 24-26CBM
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM |

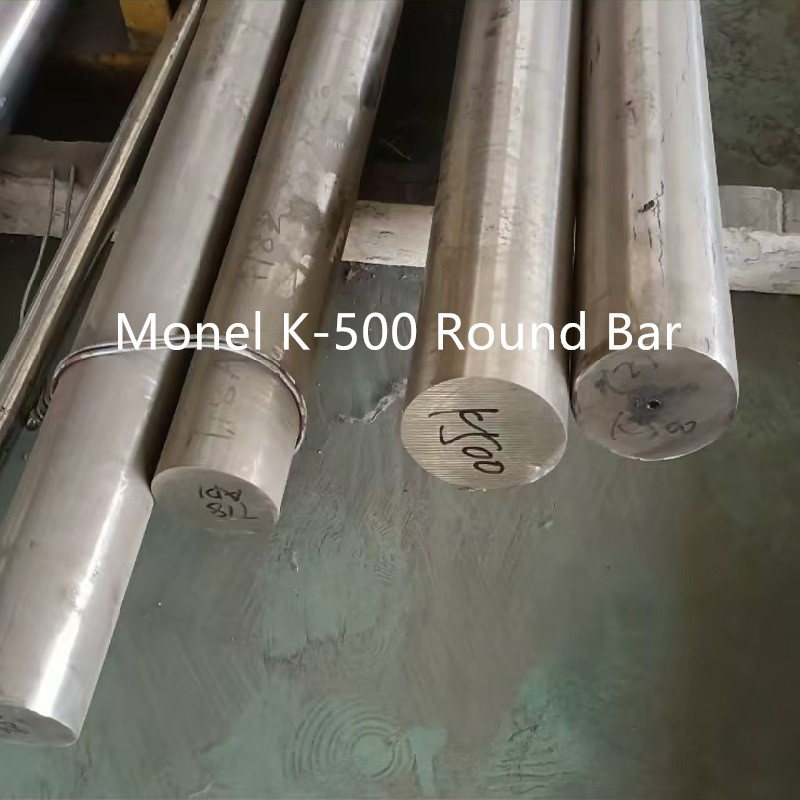

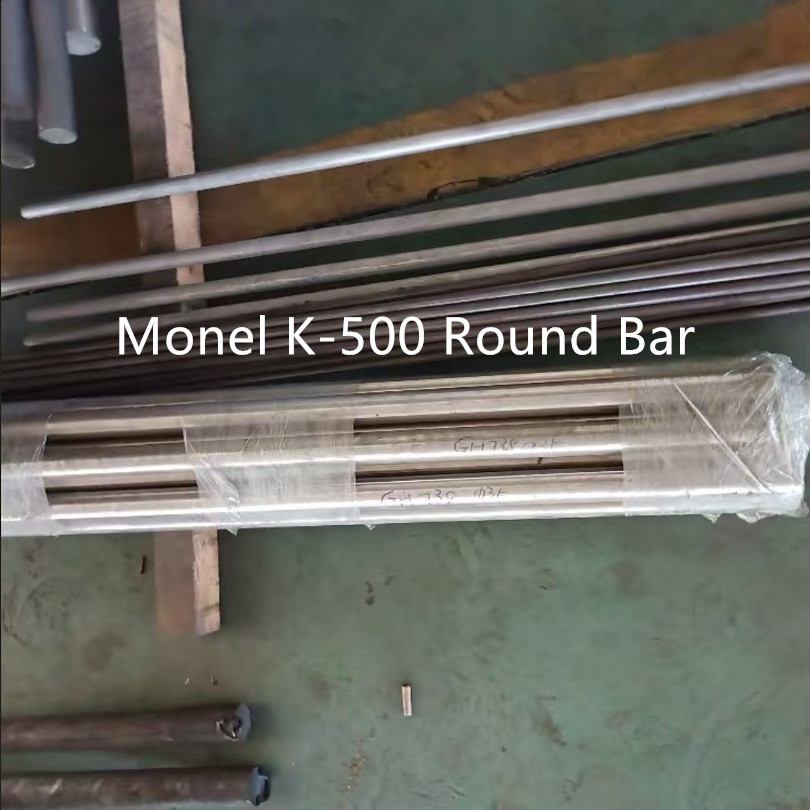

Monel K-500 rod introduction
Monel K-500 is a nickel-copper alloy based on Monel 400 with the
addition of aluminum and titanium, which has been age-hardened to
increase strength and hardness. It retains the excellent corrosion
resistance of the Monel 400, while having higher mechanical
properties, and is widely used in Marine engineering, chemical
industry and aerospace.
Main parameter of Monel K-500 Round Bar
Chemical composition:
- Nickel (Ni): 63% min
- Copper (Cu): 27-33%
- Aluminum (Al): 2.3-3.15%
- Titanium (Ti): 0.35-0.85%
- Iron (Fe): 2% max
- Manganese (Mn): 1.5% max
- Carbon (C): 0.25% max
- Sulfur (S): 0.01% max
Density: 8.44 g/cm³
Melting point: 1315-1350°C
Coefficient of thermal expansion: 13.9µm /m°C (20-100°C)
Thermal conductivity: 21.8W /m·K (100°C)
Resistivity: 0.51 µΩ·m (20°C)
Peculiarity of Monel K-500 Round Bar
- High strength: Through age hardening treatment, with higher
strength and hardness.
- Corrosion resistance: Excellent corrosion resistance in seawater,
acidic and alkaline environments.
- Stress corrosion cracking resistance: Excellent stress corrosion
cracking resistance in chloride environments.
- Magnetic: Non-magnetic, suitable for magnetically sensitive
environments.
- Wear resistance: Good wear resistance, suitable for high wear
environment.
Property of Monel K-500 Round Bar
Mechanical properties:
- Tensile strength: ≥ 1100 MPa (after age hardening)
- Yield strength: ≥ 790 MPa (after age hardening)
- Elongation: ≥ 20% (after age hardening)
- Hardness: ≥ 25 HRC (after age hardening)
- High temperature performance: maintain good mechanical properties
and corrosion resistance at high temperatures.
- Low temperature performance: maintain excellent toughness and
strength in low temperature environment.
Specification of Monel K-500 Round Bar
- Diameter range: usually 5mm to 300mm
- Length: Usually 1000mm to 6000mm
- Surface treatment: black leather, car, polishing, etc
Standard of Monel K-500 Round Bar
- ASTM: B865
- AMS: 4676
- UNS: N05500
- DIN: 2.4375
Advantage of Monel K-500 Round Bar
- High strength combined with corrosion resistance: Higher strength
while maintaining excellent corrosion resistance.
- Versatility: Suitable for a variety of extreme environments,
including Marine, chemical and high-temperature environments.
- Long life: It can maintain long-term stability under harsh
conditions.
- Easy to process: It can be formed and processed by a variety of
processing methods.
Apply of Monel K-500 Round Bar
Marine Engineering:
- Sea water pump shaft
- Valves and fasteners
- Submarine equipment component
Chemical Industry:
- reactor
- Heat exchanger
- Piping system
Aerospace:
- Engine component
- Turbine blade
Oil and Gas:
- Downhole tool
- Valves and pump components
Others:
- High strength fastener
- Spring and sensor components
The Monel K-500 bar combines the excellent corrosion resistance and
higher mechanical properties of the Monel 400 with an age-hardening
treatment that makes it outstanding in terms of strength, hardness
and wear resistance. It has a wide range of applications in Marine
engineering, chemical industry, aerospace and other fields, and is
an ideal material choice in extreme environments.
