EN 2.4819 / Alloy C276 / UNS N10276 Plate Sheet ASTM EN With 10204-3.1 Certificate
Quick Informations
Grade | Hastelloy C276 | Type | Sheet, Plate |
Thickness | 1.0-25.0mm | Width | Within 1500mm |
Length | Within 6m | Service | Laser Cutting |
More Specification Informations
Products Name | Hastelloy C276 Sheet , Plate |
Thickness | cold rolled 1.0 - 3.0mm, hot rolled 4.0 - 25.0mm |
Standard Size | 1000*2000mm,1219*2438mm,1500*6000mm |
Surface | 2B, NO.1 |
Brand | DELTA |
Service | Laser cutting |
MOQ | 2 Kgs |
Other Type | round bar, strip,coil,pipe.etc |
Packing | waterproof paper and wooden pallets, wooden box |
Loading Port | Shanghai Port |
Price term | EXW,FOB,CIF,CFR |
Deliver time | within 12 days |
Hastelloy C276 Plate & Hastelloy C276 Flat Sheet have good oxidation and creep resistance and can be strengthened by precipitation hardening, solid-solution hardening and work hardening methods. These Alloy C276 Plate & Hastelloy C276 Clad Plate perform very well under high mechanical stress and high temperatures and also in places that require high surface stability. Hastelloy Alloy C276 Sheet is designated as UNS N10276 and Werkstoff Number 2.4819. UNS N10276 plate, ASME SB 575 UNS N10276 Perforated Plate, 2.4819 Material Cold rolled Plate, 2.4819 Alloy C 276 Foil & 2.4819 Plate can be cold formed by standards methods.
Hastelloy C276 Plate, Sheet & Coil Chemical Composition
Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
Alloy C276 Sheets, Plates & Coils Mechanical Properties
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Equivalent Grades for C276 Hastelloy Sheets & Plates
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
Size Range of our Hastelloy C276 Products
Hastelloy C276 Sheet | Thickness 1.0 - 3.0mm |
Hastelloy C276 Plate | Thickness 4.0 - 25.0mm |
Hastelloy C276 strip | Thickness 0.1 - 2.5mm |
Hastelloy C276 Coil | Thickness 0.5 - 12.0mm |
Hastelloy C276 Round Bar | Diameter 10 - 330mm |
Hastelloy C276 Seamless pipe | DN10 - DN400 |
Hastelloy C276 welded pipe | OD60 - 610mm |
Hastelloy C276 Wire | OD1 - 6mm |

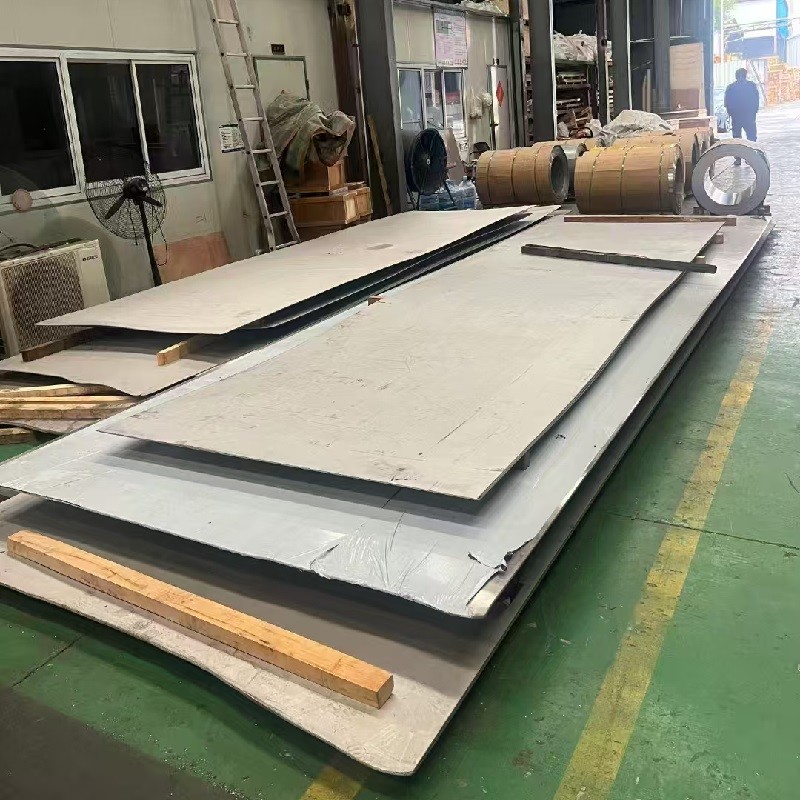

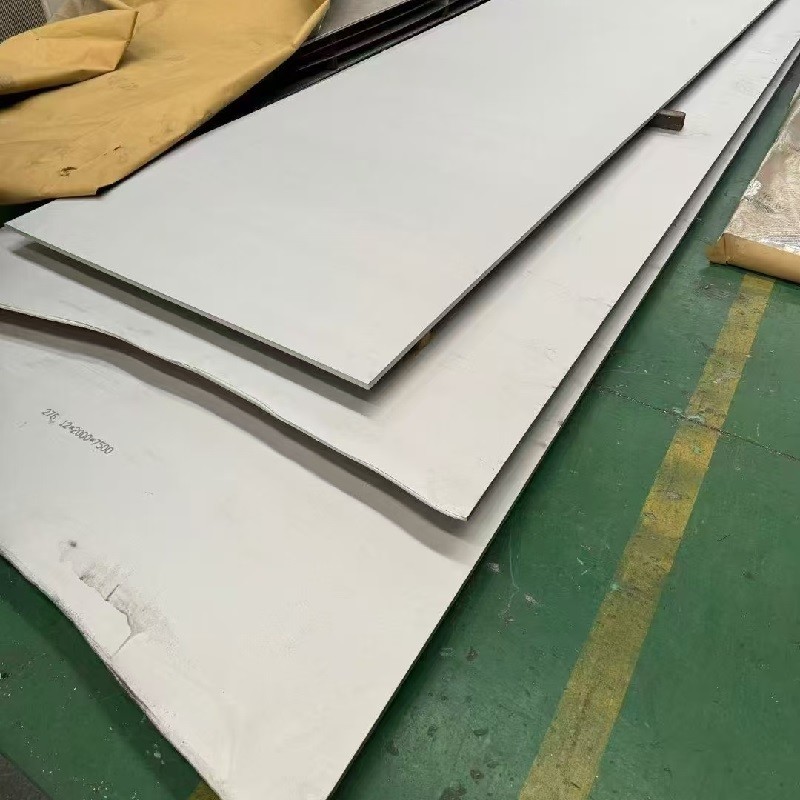

Products Picture
![]() |
