Brand Name : | DELTA |
Model Number : | 310S |
Certification : | ISO |
Price : | 4650-5760 USD/Ton |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 10 Ton per week |
Delivery Time : | 5 - 12 days based on the quantity |

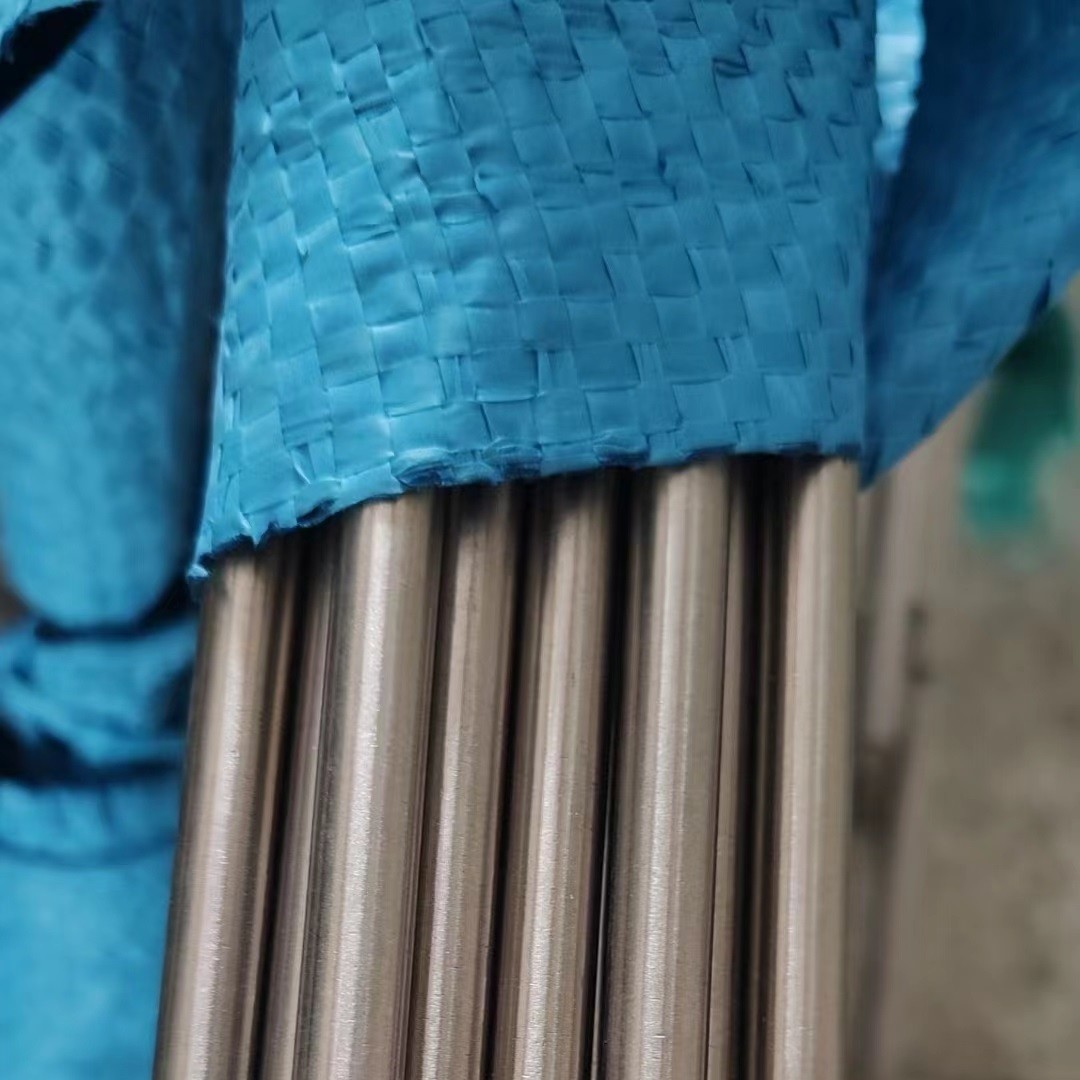

Heat Resistant 310S Stainless Steel Seamless Pipe DN10 - DN300 for Boiler and Heat Exchanger
Product Name | 310S Stainless Steel Pipe Ss Pipe |
Fabrication Standard | ASTM A213/269/312/789 |
Material Grade | TP304 TP316 TP310S SS32750 TP321 TP347L 2507 S32205 254SMo |
Out Diameter | 1/8" - 24" |
Wall Thickness | 1.25mm - 80mm |
Length | <= 18 Mtr |
Surface | anealling and pickles surface, polishing |
Package | by piece, in bundles, with external pvc wrapped, wood crated |
Minimum Order Quantiy | 1 Metric Tons |
Our Advantage | 1.regular sizes in stock over 2000 tons for immediate delivery |
2.small quantity with factory rate | |
3.quality certificate as per EN10204 3.1b issued by manufacturer | |
4.expert technical and export/import document consultant and support | |
5.on-time response by email, skype, website and online messages |
AISI 310 stainless steel is a high chromium nickel austenitic stainless steel with a high carbon content. It has excellent mechanical properties, high temperature oxidation resistance and heat resistance.
Type 310S is a low carbon version of SS 310, 310H is to obtain the best creep strength and creep rupture strength. 310Cb is added with niobium to maximize the stability of carbides, prevent sensitization, and improve weldability and high temperature creep strength.
Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0- 3.0 |
316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 - 3.0 |
321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
Stainless steel pipe Advantage
a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc
310 310s Stainless steel tube pipe packing details
1 | pipes covered with wooden plate for protection in transportation. |
2 | All pipes will be loaded in strong wooden packages. |
3 | Every cartons loaded with good shoring and strengthening. |
4 | Take container loading pictures and seal the container. |
5 | Transportation speed is quick. And keep customer each step informed. |
