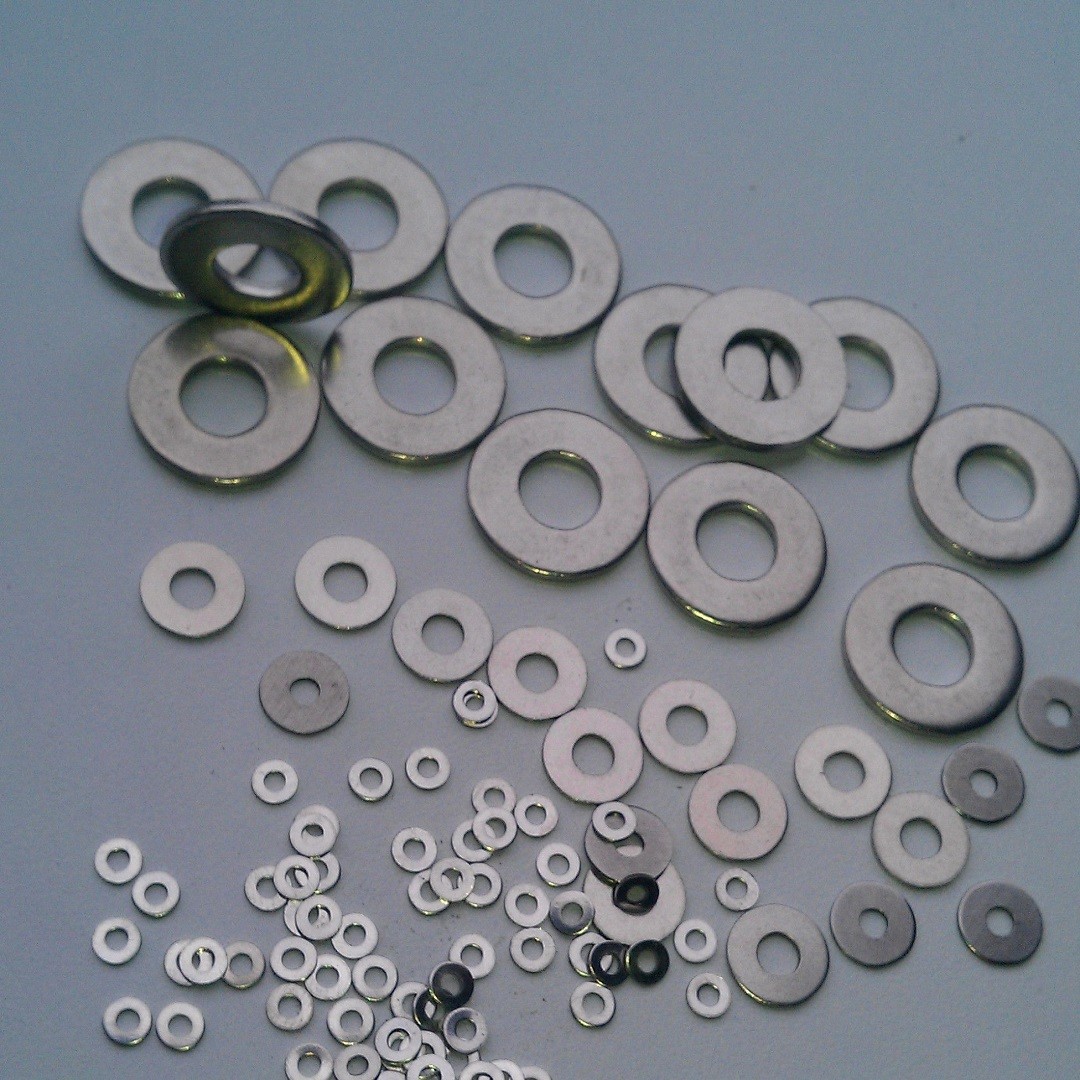

    OEM Wide Flat Washer Galvanized Plain Washer M2.5 - M60 EN ASTM Standard

    Ask Lasest Price
    Brand Name : DELTA
    Model Number : Galvanized steel
    Certification : ISO
    Price : 1.2 - 2.5 USD/1000 PCS
    Payment Terms : T/T, L/C
    Supply Ability : 10 Ton per week
    Delivery Time : 10 days
    MOQ : 1000 PCS
    • Product Details
    • Company Profile

    OEM Wide Flat Washer Galvanized Plain Washer M2.5 - M60 EN ASTM Standard

    OEM Fender Washer Wide Flat Washer Galvanized Plain Washer


    Product name:
    Fender washer
    Material:
    Carbon Steel Brass Stainless Steel Aluminum
    Thickness:
    1.3mm-2.0mm
    Grade:
    4.8/ 6.8/ 8.8/ 10.9/ 12.9
    Suface Available:
    black, Zinc, plain,Gomet,Dacromet
    Inspection Machines:
    Micrometer,Torsion Machine,Durometer,Coating Thickness Gauge, etc
    MOQ:
    1000pcs
    OEM/ODM:
    We can produce according to customer's requirements
    Drawing Format:
    Dwg, Pdf, PNG,etc
    Port:
    Tianjin/Qingdao
    Delivery Time:
    10-25 Days or to be negotiated

    SizeInside Diameter (ID)Outside Diameter (OD)Thickness (TH)
    ToleranceTolerance
    BasicPlusMinusBasicPlusMinusMaxMin
    #40.1250.0080.0050.3120.0080.0050.0400.025
    #60.1560.0080.0050.3750.0150.0050.0650.036
    #80.1880.0080.0050.4380.0150.0050.0650.036
    #100.2190.0080.0050.5000.0150.0050.0650.036
    #120.2500.0150.0050.5620.0150.0050.0800.051
    1/40.2810.0150.0050.6250.0150.0050.0800.051
    5/160.3440.0150.0050.6880.0150.0070.0800.051
    3/80.4060.0150.0050.8120.0150.0070.0800.051
    7/160.4690.0150.0050.9220.0150.0070.0800.051
    1/20.5310.0150.0051.0620.0300.0070.1210.074
    9/160.5940.0150.0051.1560.0300.0070.1210.074
    5/80.6560.0300.0071.3120.0300.0070.1210.074
    3/40.8120.0300.0071.4690.0300.0070.1600.108
    7/80.9380.0300.0071.7500.0300.0070.1600.108
    11.0620.0300.0072.0000.0300.0070.1600.108
    1 1/81.2500.0300.0072.2500.0300.0070.1600.108
    1 1/41.3750.0300.0072.5000.0300.0070.1920.136
    1 3/81.5000.0300.0072.7500.0300.0070.1920.136
    1 1/21.6250.0300.0073.0000.0300.0070.1920.136
    1 3/41.8750.0450.0103.3750.0450.0100.2130.153
    22.1250.0450.0103.7500.0450.0100.2130.153

    An overview of flat washers

    Washers

    Washers distribute forces over a larger area. This reduces the pressure exerted on the contact surfaces of a joint. At the same time, it also protects the component surface, as the relative movement between the fastener and the component only takes place in the joint between the washer and the fastener.

    Standards

    • DIN 125 A similar to ISO 7089/7090
    • DIN 125 B similar to ISO 7089/7090
    • DIN 126 similar to ISO 7091
    • DIN 1052
    • DIN 1440 similar to ISO 8738
    • DIN 1441
    • DIN 432
    • DIN 433 similar to ISO 7092
    • DIN 440 R similar to ISO 7094
    • DIN 440 V similar to ISO 7094
    • DIN 463
    • DIN 6340
    • DIN 7349
    • DIN 9021 similar to ISO 7093

    Working principle

    Distributing the pre-tensioning force over a larger area reduces the pressure exerted on the contact surfaces of the joint. This reduces deformation and creep phenomena. Washers protect sensitive surfaces from mechanical damage.


    Material


    In addition to steel in different hardness classes, available materials include stainless steel, plastic, aluminium and brass. Care must be taken to use washers of the appropriate hardness, particularly when using high-strength screws.


    Surfaces


    Our products can be coated with different surface finishes, depending on requirements and application. We will be pleased to give you individual advice on the right coating system.

    We offer the following surfaces as standard:

    • Plain
    • Zinc plated (industry standard)
    • VZD (zinc plated with thick layer passivation)
    • ISO Standard Galvanized
    • Zinc-nickel
    • Zinc flake
