Oxygen-free copper—also referred to as OFC, Cu-OF, Cu-OFE, and
oxygen-free, high-conductivity copper (OFHC)—is formed by melting
copper and combining it with carbon and carbonaceous gases. The
electrolytic copper refining process removes most of the oxygen
contained within, resulting in a compound that consists of
99.95–99.99% copper with less than or equal to 0.0005% oxygen.
The high purity levels of oxygen-free copper enhance the properties
typical of standard copper material, such as thermal and electrical
conductivity, ductility, impact strength, and machinability. Due to
these advantageous properties, the material finds use in a variety
of industrial applications.
Oxygen-Free Copper: Grades, Forms, Compositions, and Properties
Oxygen-free copper materials are classified by the amount of oxygen
removed from the base copper material. The two basic grades are:
- Cu-OF (C10200) grade copper is oxygen-free up to 99.95%. This grade
of copper boasts exceptional purity. While no copper is ever 100%
pure, modern technology has allowed refiners to reduce the
remaining oxygen content to a practical range of 0.001–0.003%.
- Cu-OFE (C10100) grade copper is oxygen-free up to 99.99%. It is
purer than Cu-OF and exhibits a slightly higher percentage of
electrical conductivity (approximately 1%) and superior corrosion
resistance. Additionally, it is often used for high-quality
audio/visual systems.

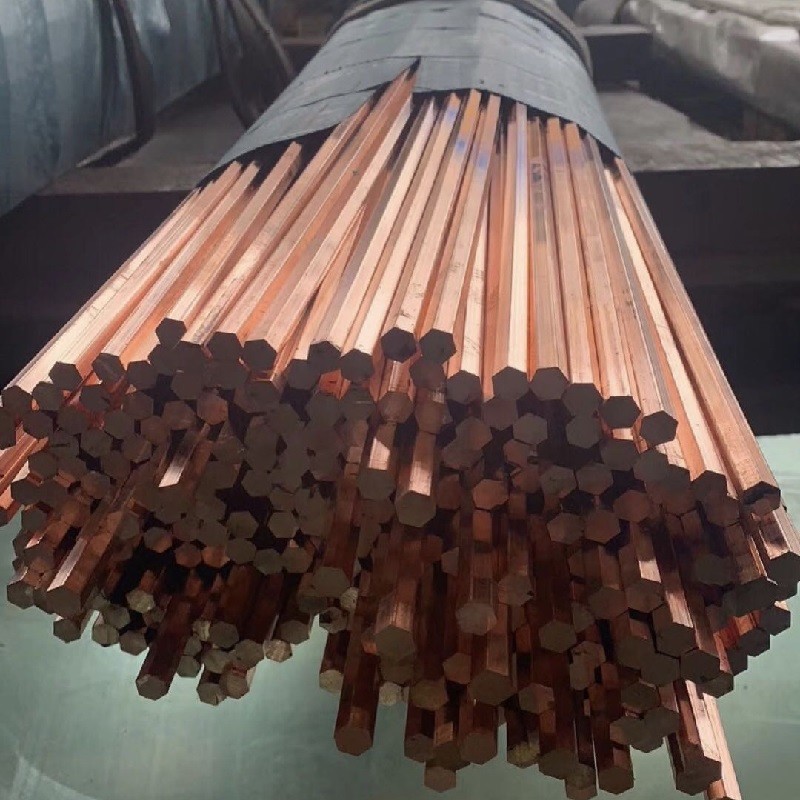

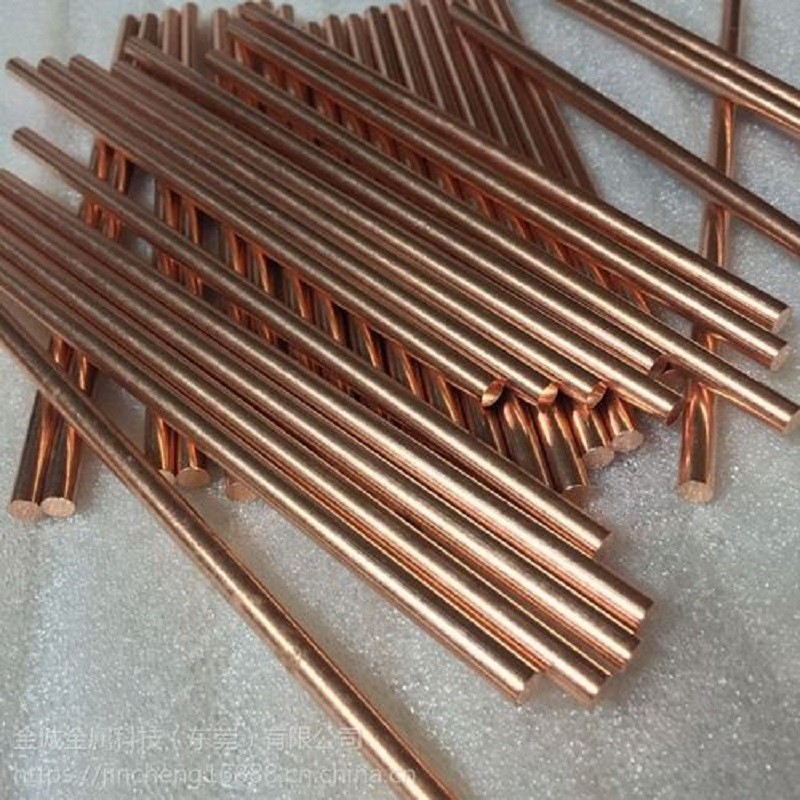

Both grades of oxygen-free copper are available in a wide variety
of forms and shapes, including:
Although Cu-OF and Cu-OFE have slightly different compositions due
to the .04% variance in residual oxygen level, they share many
characteristics. For instance, they both contain the following
properties in soft to hard conditions:
- Tensile strength of 222–385 N/mm2
- Proof strength range (to 0.1% deformation) of 60–325 N/mm2
- Elongation of 60-4%
- Hardness range of 45–115 HV
- Average conductivity of 102% and a guaranteed value of 101% as per
IACS
- Thermal conductivity ranges between 386–394 W/m°C
Oxygen-Free Copper (OFC) Production
Oxygen-free copper (OFC) is formed via an intensive manufacturing
and refining process that includes melting the copper and
incorporating gases into the final composition. To prevent
distortion and the formation of cracks within the material,
manufacturers can add heat treatments to the production process to
relieve stress. If the OFC is not softened during the heat treating
process, then the manufacturer needs to perform further annealing
(tempering) operations on the material to strengthen it.
Applications of Oxygen-Free Copper (OFC)
Oxygen-free copper is highly suitable for a number of industrial
applications, including the manufacture of electronic products and
products that operate within vacuum conditions. Some of the
electronic products for which OFC is used are:
- Anodes
- Bus conductors
- Busbars
- Coaxial cables
- Glass-to-metal seals
- Hollow conductors
- Klystrons
- Lead-in wires
- Medical devices
- Rectifiers
- Transistor components
- Tubes
- Vacuum seals & vacuum applications
- Waveguides
Sequoia Brass & Copper’s Oxygen-Free Copper (OFC) Offerings
At Sequoia Brass & Copper, we have an extensive catalog of
high-quality copper materials, including Alloy 101 (C10100)
oxygen-free electronic (OFHC/OFE) and high-thermal conductivity
(OFHC/OF) C10200 copper. Our selection of OFC materials includes:
- OFHC-OFE plates (ASTM-B152)
- OFHC-OFE rods (ASTM_B187)
- OFHC-OFE sheets (ASTM -B152)
- OFHC-OFE tubes (ASTM B-75)
