Brand Name : | DELTA |
Model Number : | TP316L |
Certification : | ISO |
Price : | 4650-5760 USD/Ton |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 10 Ton per week |
Delivery Time : | 5 - 12 days based on the quantity |

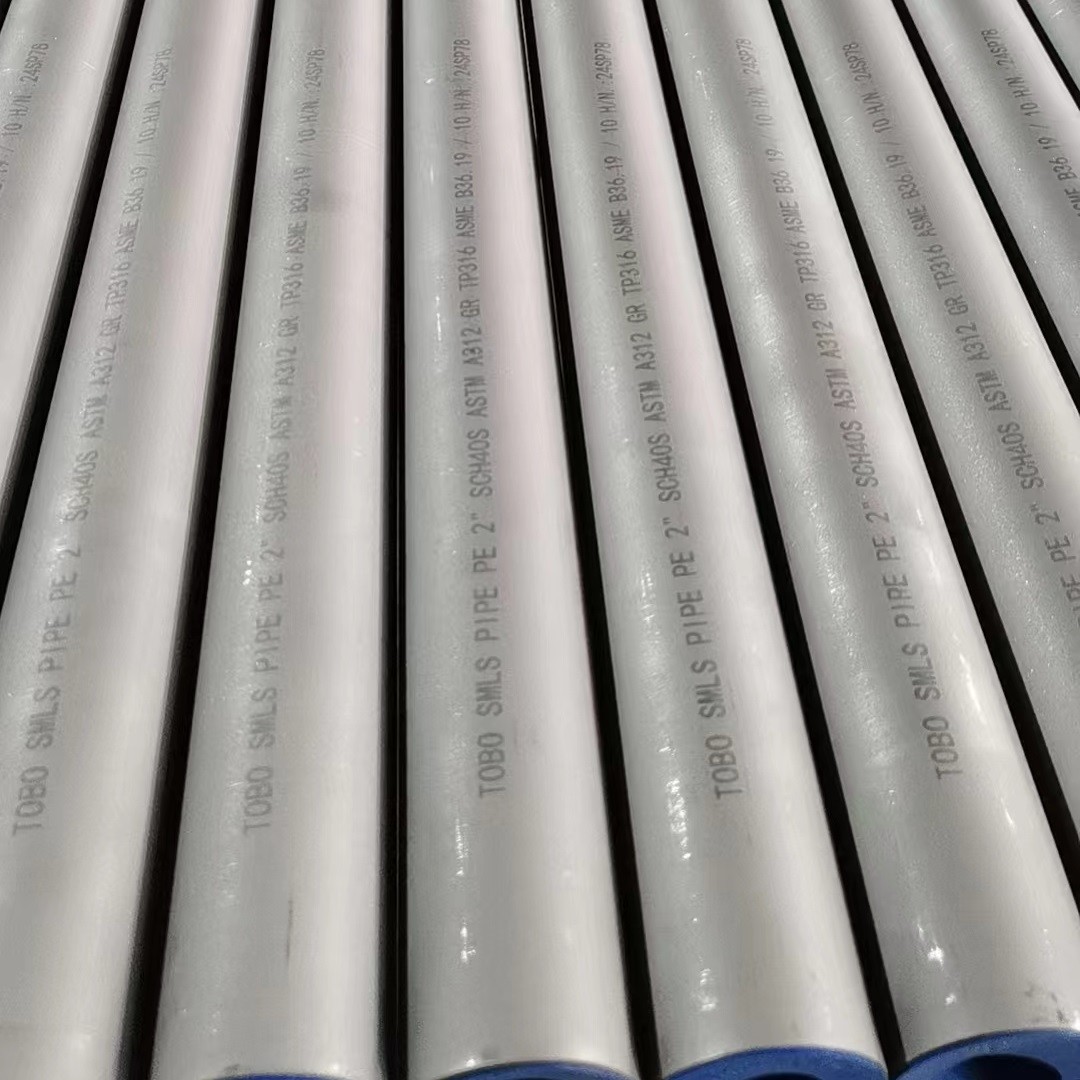

Pickled Finishing TP316L Stainless Steel Pipe Tube DN10 - DN400 With SGS Inspection
Product Name | Stainless Steel Pipe |
Standard | JIS, AISI, ASTM, GB, DIN |
Outer Diameter | 6mm-530mm (1/8"-20") or as the customers' requirements |
Length | 1000-6000mm or as the customers' requirements |
Grade | TP201, TP304, TP304L, TP310S, TP316, TP316L, TP317L, TP321, TP309S, TP410, TP420, TP430, TP904L |
Thickness | 1mm-60mm |
Type | weld |
Surface | NO.1/NO.4/8K/HL/BA/2B |
manufacture | Hot Rolled/Cold Rolled |
Application | Construction field, ships building industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat ex-changer, machinery and hardware fields ,etc. |
Packing | Weaving bag, non-woven fabric, seaworthy bundle,wooden case if required |
Delivery time | Within 7 - 10 working days, according to customers' quantity |
Payment | L/C or T/T |
MOQ | 1 Ton |
Quality | High Quality.SGS inspection is accepted if needed |
Productivity | 1000 Tons/Month |
SA 312 TP 316L material displays good dimensional accuracy, durability and weldability. These AISI 316L Schedule 10 Pipes have a rugged structure and offer a high tensile strength. Hence ASTM A312 Gr TP 316L is also said to be marine grade. These WNR. 1.4404 Polished Pipes also resist sensitization when they are exposed to heat treatment for a short period of time. UNS S31603 Rectangular Pipes is said to be used in sugar mills, construction industry, pumps and petrochemical industry. ASME SA 312 Grade 316L Square Pipes is resistant to high temperature and corrosion. Apart from this ASTM A312 TP 316L Round Pipe is also used in jet engines.
Grade | C | Mn | P | S | Si | Cr | Ni | Mo |
---|---|---|---|---|---|---|---|---|
316L | .035 | 2.00 | .045 | .030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Grade | Tensile | ||||
---|---|---|---|---|---|
Ultimate/Min | Yield/Min | Elongation/Min | |||
KSI | MPA | KSI | MPA | % | |
316L | 70 | 485 | 25 | 170 | 35 |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
---|---|---|---|---|---|---|---|
SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Surface Finish | Internal Surface(ID) | External Surface(OD) | |||
---|---|---|---|---|---|
Roughness Average(RA) | Roughness Average(RA) | ||||
μ inch | μm | μ inch | μm | ||
AP | Annealed & Pickled | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined |
BA | Beight Annealed | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
MP | Mechanical Polish | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
EP | Electro Polish | 15,10,7,5 | 0.38,0.25,0.20;0.13 | 32 | 0.8 |
![]() |
