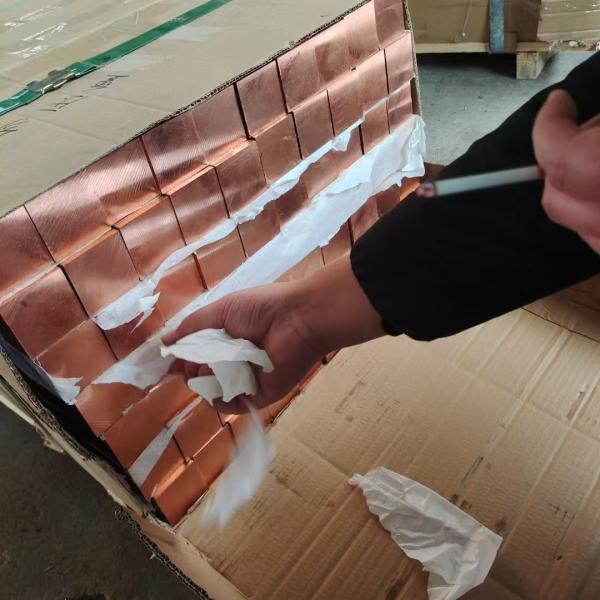

Copper Plate Sheet CU-ETP C11000 Flat Plate Thickness3.0 - 40.0mm
Products Specification
Item | Copper Plate / Copper Sheet |
Material | T1, T2, TP1, TP2, TU2, C1011, C1100, C1200, C1201, C1220 H90, H70,
H68, H65, H63, H62, C2200, C2600, C2620, C2700, C2720, C2800,
etc. |
Standard | GB/T5231-2001, GB/T1527-2006, JISH3100-2006, JISH3250-2006,
ASTMB152-M, EN1652-98, GB/T2040-2008, TOCT495-92, TOCT1173-93, etc |
Thickness | 0.1mm~200mm |
Width | 1mm~3500mm |
Length | 10mm~6000mm |
Surface | mill,brush,mirror,bright,shiny,hair line,sand blast,etching,etc |
Application | copper sheet can be made to do all sorts of deep drawing and
bending stress components, such as manufacturing pins, rivets,
gasket, nuts, conduits, the barometer spring, screen, radiator
parts, etc |
Cu-ETP, short for Copper Electrolytic Tough Pitch, is a type of
copper that is widely used in the electrical industry due to its
high electrical conductivity and resistance to corrosion. This type
of copper is commonly found in electrical wiring, power generation
equipment, and other electrical applications.
One of the key advantages of Cu-ETP is its high conductivity. It
has a conductivity rating of 100% IACS, making it one of the most
conductive metals available. This makes it an ideal choice for
applications that require the efficient transfer of electrical
energy, such as power generation and transmission.
Cu-ETP is also highly resistant to corrosion, making it a durable
and long-lasting choice for electrical applications. This is
particularly important in coastal and industrial environments where
copper is exposed to harsh conditions that can cause corrosion and
damage over time.
In addition to its high conductivity and resistance to corrosion,
Cu-ETP is also a versatile material that can be easily shaped and
formed into a variety of different forms. This makes it well-suited
for a wide range of electrical applications, including power
generation, transmission, and distribution.
In conclusion, Cu-ETP is an excellent choice for electrical
applications that require high conductivity and resistance to
corrosion. Its versatility and long-lasting durability make it a
popular choice among manufacturers and engineers in the electrical
industry.
Application Areas & Industries
Copper Electrolytic Tough Pitch (CuETP), also known as C110 copper,
is a highly conductive and corrosion-resistant copper alloy that is
commonly used in electrical and electronic applications. Some of
the key application areas and industries that make use of CuETP
include:
- Electrical wiring and cables: CuETP is an ideal choice for
electrical wiring and cables due to its high conductivity and
resistance to corrosion.
- Electrical connectors: CuETP is also used in the manufacture of
electrical connectors, such as plugs, sockets, and terminals, due
to its high conductivity and good mechanical strength.
- Printed circuit boards: CuETP is commonly used as the base material
for printed circuit boards (PCBs) due to its high conductivity,
corrosion resistance, and good machinability.
- Electronic components: CuETP is also used in the manufacture of
various electronic components such as resistors, capacitors, and
transistors.
- Industrial machinery: CuETP is widely used in the manufacture of
industrial machinery, such as heat exchangers, power generation
equipment, and busbars, due to its high conductivity and good
mechanical strength.
- Building construction: CuETP is used in building construction as
roofing, flashing, and guttering due to its weather resistance and
attractive appearance.
- Automotive and transportation: CuETP is used in automotive wiring,
brake components, and transportation infrastructure due to its high
conductivity and excellent corrosion resistance.
Chemical Composition of CU-ETP Copper Products
| Element | Percentage by Weight |
|---|
| Copper | 99.9% |
| Oxygen | 0.01% – 0.04% |
| Iron | 0.005% – 0.03% |
| Sulfur | 0.005% – 0.03% |
Physical Properties
- The physical properties of Cu-ETP (Copper Electrolytic Tough Pitch)
include:
- Density: 8.9 g/cm³
- Melting Point: 1083 °C
- Malleability: Good
- Ductility: Good
- Thermal Conductivity: 401 W/m.K
- Hardness: Annealed (HV20) 75-95
- Tensile Strength: 260-510 MPa
- Elongation: 10-30%
- Modulus of Elasticity: 110 GPa
Standard Specification of Copper Products
Cu-ETP (Copper Electrolytic Tough Pitch) is a type of copper that
is commonly used in the electrical industry due to its high
electrical conductivity and resistance to corrosion.
The following are some of the commonly used specifications for
Cu-ETP:
ASTM B187/B187M- Standard Specification for Copper Bus Bar, Rod,
and Shapes and General Purpose Rod, Bar, and Shapes
ASTM B188- Standard Specification for Seamless Copper Bus Pipe and
Tube
ASTM B283/B283M- Standard Specification for Copper and Copper Alloy
Die Forgings (Hot Pressed)
ASTM B451 – Standard Specification for Copper Foil, Strip, and
Sheet for Printed Circuits and Carrier Tapes
ASTM B506 – Standard Specification for Copper Clad Stainless Steel
Sheet and Strip for Building Construction
ASTM B694 – Standard Specification for Copper, Copper Alloy, and
Copper-Clad Stainless Steel Sheet and Strip for Electrical Cable
Shielding
SAE J461 – Wrought and Cast Copper Alloys
SAE J463 – Wrought Copper and Copper Alloys
ASME SB124 – Copper and Copper Alloy Forging Rod, Bar and Shapes
ASME SB152 – Copper Sheet, Strip, Plate and Rolled Bar
ASME SB187 – Copper Bus Bar, Rod and Shapes and General Purpose
Rod, Bar and Shapes
AMS 4500- Copper Sheet, Strip and Plate, Soft Annealed
