OF-CU Copper Round Bar C10200 Oxygen-free Copper Diameter 4 - 250mm Smooth Surface

Ask Lasest Price
Brand Name :	DELTA
Model Number :	C10200 / OF-CU
Certification :	ISO
Price :	7000-8000 USD/Ton
Payment Terms :	T/T
Supply Ability :	50 Tons per month
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

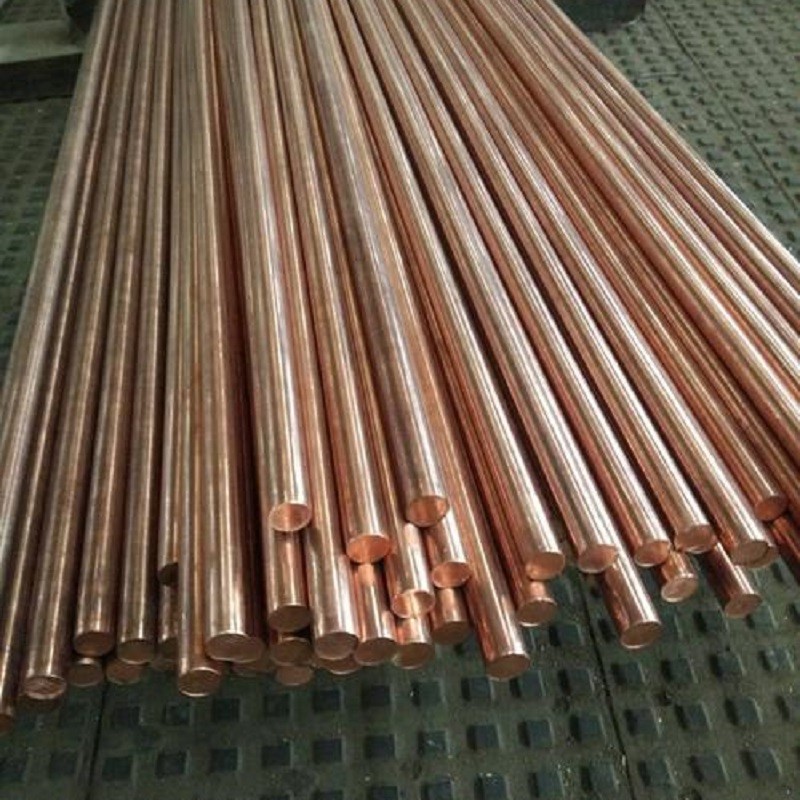

OF-CU Copper Round Bar C10200 Oxygen-free Copper Diameter 4 - 250mm Smooth Surface

OF-CU Copper Round Bar C10200 Oxygen-free Copper Diameter 4 - 250mm Smooth Surface

Products Specification of Copper Bars

Product Name	Copper Rod
Shape	Round/Square/Rectangular/Flat, etc
Size	Regular size 600x1500mm or Customized
Grade	Pure Copper:C10100/C10200/C11000/C12000/C12200 Copper Alloy:C14500/C17200/C17300/C17510/C18150/C19200/C19210/C19400 Brass:C22000/C23000/C24000/26000/26800/27000 Lead Brass:C33000/CuZn36Pb3/C35000/C35300/C36010/C37000/37700/C38000 /C38500/CuZn39Pb3/CuZn40Pb2 Tin Brass:C44300/C44500/C46400/HSn90-1 Aluminum Brass:C68700/HAl77-2/HAl66-6-3-2/HAl64-3-1 Tin Bronze:C51000/C51100/C51900/C52100/C54400/CuSn4/CuSn5/CuSn5Pb1/CuSn6/CuSn8 Aluminum Bronze:C60800/C61300/C61900/C62300/C63000 Copper Nickel Alloy:C70400/C71500/C70600/C70620/C73500/75200/76200/C77000
Temper	H,1/2H,3/4H,1/4H,EH,SH,O60, etc.
Surface	Mill,Polished,bright or customized.
MOQ	1 ton
Delivery Time	5-10 days after the payment received
Payment Item	30% TT deposit+70% TT balance before delivery

Standard Size of C10200 Copper Bar in Stock

Diameter	4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm 18mm 19mm 20mm 22mm 24mm 25mm 27mm 28mm 30mm 32mm 35mm 38mm 40mm 42mm 45mm 48mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 125mm 130mm 140mm 150mm 160mm 180mm 190mm 200mm 210mm 220mm 230mm 240mm 250mm
Length	1m 2m 3m 4m 6m or cutting any length as request

Standard No.

Oxygen free copper JIS C1020 CDA C10200
Tough pitch copper JIS C1100 CDA C11000
Phosphorus deoxidized copper JIS C1220 CDA C12200

Copper with content over 99.90% is Pure copper, such as Oxygen free copper, Tough pitch copper,
Phosphorus deoxidized copper. The electrical conductivity, thermal conductivity of Pure copper are high.
The copper is provided in the respective shapes such as a plate, a strip(Up to 5mm thickness), and a bar by processing the high quality pure copper ingot.

The bendability, the formability and the corrosion resistance are superior also.

Main features

Oxygen free copper

The risk of hydrogen embrittlement (blowhole, cracking) during welding and brazing is low, because any oxygen is not contained. Oxygen free copper is recommended for the parts with welding and brazing.

Tough pitch copper

The content of copper is around 99.90%, it contains 200-500 ppm oxygen. The electrical conductivity, the thermal conductivity are same as Oxygen free copper.

Phosphorus deoxidized copper

A small amount of phosphorus is added. The electrical conductivity is 85%IACS, lower than Oxgen free copper (101%IACS). Phosphorus deoxidized copper is recommended for the parts with welding and brazing, because any oxygen is not contained.

Main applications

Oxygen free copper and tough pitch copper are used for;—

Bus bar, power module base plate, heat spreader, tab lead electrode for lithium ion battery, transformer coil material, gasket, Sputtering target

Phosphorus deoxidized copper is used for;—

Water heaters, air conditioning piping materials, construction, electric refrigerators for water supply, fuse caps

Chemical composition

The chemical components of Oxygen free copper (C1020) are as follows.

(Weight %)

Cu
99.96Min

* Including inevitable impurities and trace additive elements

The chemical components of tough pitch copper (C1100) are as follows.

(Weight %)

Cu
99.90Min

* Including inevitable impurities and trace additive elements

The chemical components of Phosphorus deoxidized (C1220) copper are as follows.

(Weight %)

Cu	P
99.90Min	0.03

* Including inevitable impurities and trace additive elements

Physical properties

It shows the physical properties of C1020 and C1100. Note: The average physical properties are shown.

Property	Representative Value
Specific Gravity (293K)	8.94
Coefficient of Thermal Expansion (×10-6/K:293～573K)	17.7
Thermal Conductivity (W/(m・K):293K)	391
Volume Resistivity (μΩm:293K)	0.0171
Electrical Conductivity (%IACS:293K)	101
Modulus of Elasticity (kN/mm２:293K)	118

It shows the physical properties of C1220. Note: The average physical properties are shown.

Property	Representative Value
Specific Gravity (293K)	8.94
Coefficient of Thermal Expansion (×10-6/K:293～573K)	17.7
Thermal Conductivity (W/(m・K):293K)	339
Volume Resistivity (μΩm:293K)	0.0203
Electrical Conductivity (%IACS:293K)	85
Modulus of Elasticity (kN/mm２:293K)	118

Mechanical properties

The mechanical properties of Oxygen free copper (C1020),tough pitch copper(C1100), Phosphorus deoxidized(C1220) are as follows.

	Temper
	0	1/4H	1/2H	H	EH
Tensile Strength (N/mm2)	195～255	215～275	245～315	275～345	315Min.
Elongation (%)	35	25	15
Vickers Hardness (HV)	(60Max.)	(55～75)	(75～90)	(90～105)	(100Min.)

OF-CU Copper Round Bar C10200 Oxygen-free Copper Diameter 4 - 250mm Smooth Surface
