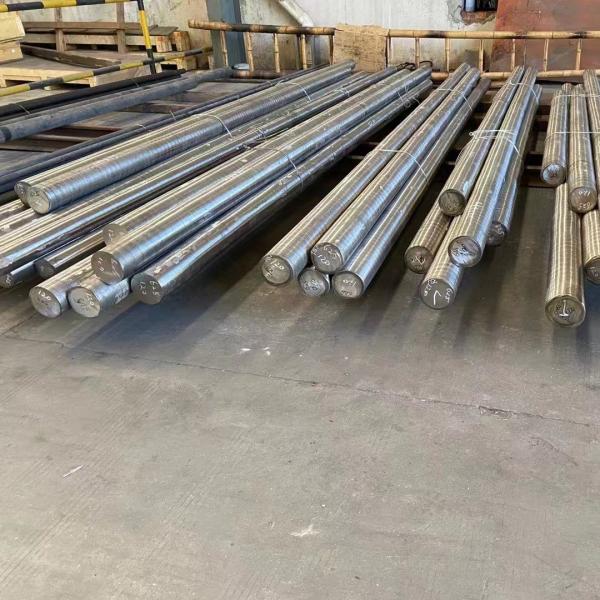

Inconel 718 Round Bar, Nickel Alloy 718 Rod Solid Solution
Finishing 718 Alloy Bars
| Form | Nickel Alloy Bars |
| Grade | Inconel 718 |
| Outer Diameter | 6mm-300mm or according to customer’s requirement |
| Length | custom cutting any length as request |
| Standard | ASTM, ASME, EN, JIS, DIN, GB/T, etc |
| Process Method | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar & Rod |
| Surface Finish | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished,
Polished, Hairline |
| Other Grade | Hastelloy : B2 B3 C22 C276 G30 X Incoloy: 800 800H 800HT 825 925 A286 330 Inconel: 600 601 617 625 718 725 X-750 Monel: 400 k-500 |
| Price Item | EXW FOB CFR CIF |
| Payment | 30% TT inadvance, 70% TT Balance against copy of B/L |
| Delivery Time | It depends on your bars order total quantity and stock of these
mother origin materials. Usually from the start of the order to the
completion of production is about 3-4 weeks |
| Quality Requirement | Mill test certificate will be offered with shipment, the third
party inspection is available |
| Main Markets | Europe, North America, Middle East, Southeast Asia |
| Metal Test | High or low temperature impact test, metallographic analysis |
| Chemical Analysis | As nickel alloy 718 bars standard |
Our Service
- Cutting: custom cutting our bars into any length as request
- Polishing: Bright polishing , cold drawn finishing
- Heat Treatment: Solid Solution , aging, Q+T
Often referred to as a high temperature alloy, the Inconel 718
Hollow Bar is capable of excellent performance. The SAE specified
AMS 5662 produced Alloy 718 Cold Drawn Round Bar is a gamma Prime
strengthened grade
Which means that Nickel Alloy 718 Rod can be classified as a
superalloy. Superalloys tend to exhibit a set of key features. In
the case of AMS 5662 hot rolled round bar the key properties
exhibited by the alloy include superior resistance properties. To
elaborate, Firstly the Inconel Alloy 718 Flat Bar demonstrates a
rather superior resistance property to both creep as well as to
stress rupture, even when exposed to a heat source of up to 1300
degrees F. Secondly, the Inconel 718 Forged Bar can prove to have
oxidation resistance up to a temperature of about 1800 degrees F.
Not forgetting the excellent cryogenic properties of ASME SB637 718
Inconel hex bar, the alloy is able to maintain its mechanical
properties and perform well in such an atmosphere. This is seen
especially if the ASTM B637 UNS N07718 Square Bars is used for
application where temperature conditions are nearly -423 degrees F.
Depending on the need of the buyer, a WERKSTOFF NR. 2.4668 Bright
Bars could be supplied in a solution annealed temper or in an aged
condition. The Inconel 718 Round Bar can also be delivered in
either a cold worked, or a cold worked & aged condition.
Mechanical Strength Of Nickel Alloy 718 Rod
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|
| MPA | MPA | % | % | HB |
| Min | Min | Min | Min | Min |
| 1034 | 1275 | 12 | 15 | 331 |
Alloy 718 Rod Chemical Resistance Guide
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Ti | Cu | B | Al | Co |
|---|
| Min | 50 | 17 | Bal | 2.8 | 4.75 | - | - | - | - | - | 0.65 | - | - | 0.20 | - |
|---|
| Max | 55 | 21 | - | 3.3 | 5.50 | 0.08 | 0.035 | 0.35 | 0.015 | 0.015 | 1.15 | 0.30 | 0.0006 | 0.80 | 1.00 |
|---|
Alloy 718 Round Bars Equivalent Material
STANDARD | WERKSTOFF NR. | UNS |
|---|
718 | 2.4668 | N07718 |
Leading Manufacturers of Inconel 718 AISI, ASTM, DIN, JIS, GB, EN
Bars & Other Ready Inventory of Inconel Alloy 718 Rods
We Manufacture a wide range of Inconel 718 Round Bars (ASTM B166 /
B446, ASME SB166 / SB446), Inconel 718 Round Bars , Inconel 718
Bars, 718 Alloy Rods, Inconel UNS N06718 Bars, Inconel Alloy 718
Bright Bar, Rods, Inconel DIN 2.4668 Rods, Inconel 718 Round Bars,
718 Alloy Polish Bars, 718 Alloy Black Bar, Inconel Alloy 718
Forged Round Bar , Inconel 718 Spring Steel Bars Dealers, 718 Alloy
Rectangle Bar Distributors, Alloy 718 Hexagon Bars , Inconel 718
Hex Bar Suppliers, Inconel Alloy 718 Cold Drawn Bar, Alloy 718 Square Bar, Alloy 718 Hollow Bar , Inconel Alloy 718
Threaded Bars , 718 Inconel Polished Square Bars , Manufacturer of
Comprehensive Range Inconel 718 Hot Rolled Round Bar, Inconel Bars
, Inconel Alloy 718 Round Bars, Nickel Rods are Available in
Different Dimensions and Specifications.
