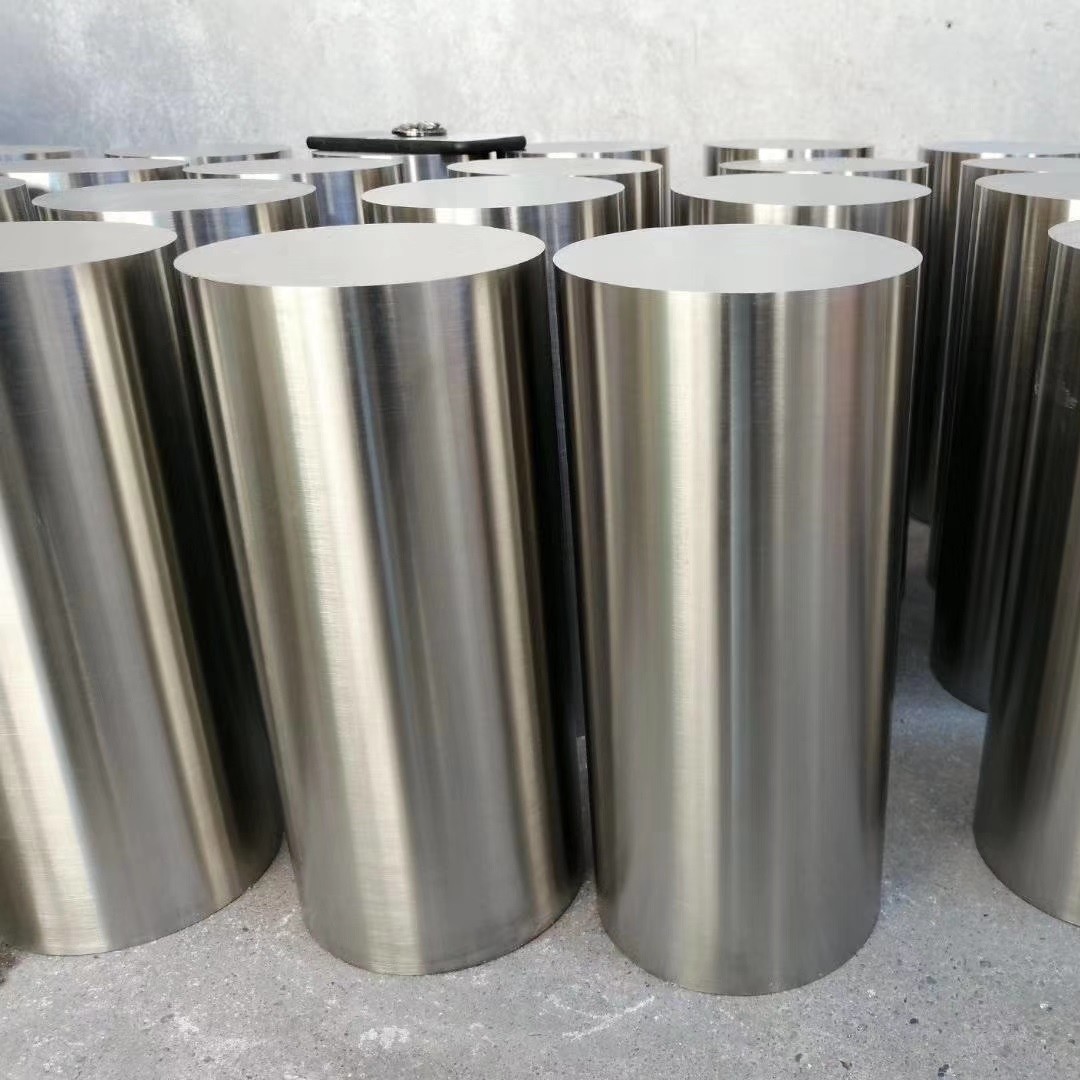

Nickel Alloy 201 Round Bar ASTM DIN EN Standard Alloy 200 Nickel
UNS N02201 Bright Bar
Products Specification
| Products Name | UNS N02201 / Nickel 201 Bars |
| Standard | ASTM B160 |
| Diameter | 4 - 200mm |
| Type | hot rolled , cold drawn |
| Length | 1m 2m 3m or custom any length as request |
| Other Shape | Pipe, sheet , plate , strip, square , hexagonal,wire |
| MOQ | 50 kgs |
| Loading Port | Shanghai Port |
| Packing | Wooden box |
| Deliver time | 4 - 15 days |
Alloy 201 (UNS N02201) is a commercially pure wrought nickel, with
good mechanical properties and an excellent resistance to many
corrosives. Nickel 201 has low carbon (0.02% max) for applications
over 315°C it is mainly used for food processing equipment,
chemical shipping drums, caustic handling equipment and piping,
electronic parts, aerospace and missile components, rocket motor
cases, magnetostrictive devices.
| Chemical Composition Limits |
| Weight% | Ni | Cu | Fe | Mn | C | Si | S |
| Nickel Alloy 200 | 99.0 min | 0.25 max | 0.40 max | 0.35 max | 0.15 max | 0.35 max | 0.01 max |
| Nickel Alloy 201 | 99.0 min | 0.25 max | 0.40 max | 0.35 max | 0.02 max | 0.35 max | 0.01 max |
Typical Mechanical Properties
| Material | Tensile Strength | Yield Strength (0.2% Offset) | Elongation in 2" (%) | Hardness |
| ksi | MPa | ksi | MPa | Brinnell (3000kg) | Rockwell B |
| Nickel 200 | 55-75 | 380-520 | 15-30 | 105-210 | 55-40 | 90-120 | 45-70 |
| Nickel 201 | 55-75 | 380-520 | 15-30 | 105-210 | 55-40 | 90-120 | 45-70 |
Nominal Results for Colled Rolled, Annealed Rod and Bar
Availability
Nickel 201 (UNS N02201) is available in Bar, Rods, Tube, Pipe,
Plate, Sheet, Strip, Wire and Forging Stock. Nickel 210 Foil (Shim)
is available in various thicknesses. View stock list for further
information, Foil Stock List. For all stock availability contact
Sales.
Features
Alloy 200 / 201 is similar in strength to mild
steel in the annealed condition. The alloy offers exceptional resistance
to caustic alkalis and good corrosion resistance in neutral and
moderately reducing environments. Alloy 200/201 displays good
mechanical properties over a wide temperature range.
Specifications
- UNS N02201
- BS 3072, BS 3073, BS 3074, BS 3075 and BS 3076 (NA12)
- ASTM B160, ASTM B162, ASTM B 163, ASTM B 725 and ASTM B 730
- SAE AMS 5553 Sheet, Strip
- ASME SB-160, ASME SB-163 and Boiler Code Sections III, VIII, IV
- DIN 17740, 17750, 17751, 17752, 17753 and 17754
- Werkstoff Nr. 2.4061 and WS2.4068
We stock Alloy 200 / 201 in round bar, sheet, strip, round tube and
hollow bar.
TYPICAL APPLICATIONS
Commercial applications for this engineering material include:
- Food processing
- Fluorine generation
- Heat exchangers
- Tank heads
- Chemical processing & storage
- Phenol storage & transportation
- Sodium hydroxide production
- Pressure vessels & vessel components
