GR1 Pure Titanium Plate ASTM EN DIN GB JIS Standard Ti Plate

Ask Lasest Price
Brand Name :	DELTA
Model Number :	GR1 GR2 GR3 GR4 GR5 GR7
Certification :	ISO
Price :	40-45 USD/Kg
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	3 Ton per week
Delivery Time :	5 - 12 days based on the quantity

Add to Cart

Product Details
Company Profile

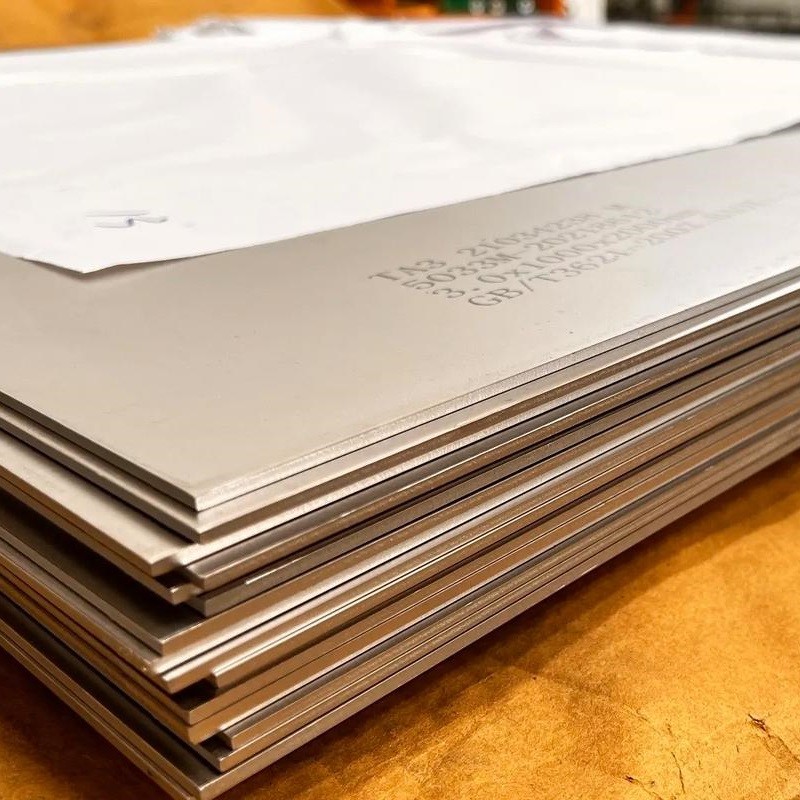

GR1 Pure Titanium Plate ASTM EN DIN GB JIS Standard Ti Plate

GR1 Titanium Plate & Sheet Pure Titanium Plate ASTM EN DIN GB JIS Standard Ti Plate

Grade	TA1, TA2, TA3, TA4, TA10, TA15, TA17, GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR11, GR12
Size	T(3.0mm~120mm)W(800mm~2200mm)L T(0.4mm~3mm)W(1500mm max)L
Standard	ASTM B 265, ASME SB265 AMS491
Application	Chemical, industry, sports etc.
Feature	High corrosion resistance, low density, good thermal stability
Surface	Bright, Polished, Pickling, Acid cleaning, Sandblasting
Quality and test	Hardness test, Bending test, Hydrostatic etc.
Finish	Roll-up(Hard)
Surface	Polished

ASTM B265 Gr1 UNS R50250 Plates are corrosion resistant and have a stable dimension. Titanium alloy Grade 1 sheets have the best corrosion resistance to reducing media. Titanium Grade 1 sheets have high tensile strength and excellent machining properties. The best corrosion resistance for titanium alloy Grade 1 sheet is to oxidizing media, but it also shows excellent corrosion resistance to chlorides. The best corrosion resistance of titanium Grade 1 sheets is also found in neutral media. Titanium DIN 3.7025 Sheets are primarily used for chemical and seawater equipment. Titanium Grade 1 sheets are also mainly used for screws and shafts. A titanium alloy Grade 1 sheet can be used extensively in the pulp and paper industry as well as offshore oil drilling companies. Sheets of titanium alloy Grade 1 are often used in petrochemicals and condensers as well.

Standard Thickness of Titanium Plate & Sheet we can Supply

0.4mm	0.5mm	0.6mm	0.8mm	1.0mm
1.2mm	1.5mm	2.0mm	2.5mm	3.0mm
4.0mm	5.0mm	6.0mm	8.0mm	10.0mm
12.0mm	14.0mm	15.0mm	16.0mm	18.0mm
20.0mm	22.0mm	24.0mm	25.0mm	30.0mm

Titanium Grade 1 Sheet And Plates Chemical Properties

Grade	C	N	O	H	Ti	Fe
Titanium Gr 1	.08 max	.03 max	.18 max	.015 max	bal	.20 max

Titanium Gr 1 Sheet / Plate Mechanical Properties

Tensile strength (min)			0.2% yield strength (min)
Designation	MPa	ksi	MPa	ksi
Grade 4	240	35	170	25

Equivalent Grades Of Titanium Grade 1 Sheets And Plates

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr 1	3.7025	R50250

Types Of Titanium Grade 1 Sheet / Plate

Titanium Gr 1 Hot Rolled Sheet

ASTM B265 Titanium Alloy Grade 1 Hot Rolled Sheets, ASME SB265 Titanium Grade 1 HR Sheets, UNS R50250 Hot Rolled Sheets, 3.7025 Hot Rolled Sheets, Ti Alloy Grade 1 Hot Rolled Sheet Exporter, Titanium Grade 1 HR Plain Sheet , Titanium Grade 1 2B Finish HR Sheets, Titanium Gr.1 BA Finish HR Sheets, Titanium Gr 1 HR Sheets, Titanium Grade 1 Hot Rolled Sheets.

Titanium Gr 1 Cold Rolled Sheet

Titanium Alloy Gr.1 Cold Rolled Sheet, ASME SB265 Titanium Gr 1 Cold Rolled Sheets, UNS R50250 Cold Rolled Sheets, 3.7025 Cold Rolled Sheets, Ti Alloy Grade 1 Cold Rolled Sheet Exporter, Titanium Grade 1 CR Plain Sheet , Titanium Grade 1 2B Finish CR Sheets, Titanium Grade 1 BA Finish CRSheets, Titanium Gr.1 CR Sheets, Titanium Gr 1 Cold Rolled Sheets

Titanium Grade 1 Hot Rolled Plate

ASME B265 Titanium Alloy Gr.1 Hot Rolled Plates, UNS R50250 Hot Rolled Plates, 3.7025 Hot Rolled Plates, Ti Alloy Gr.1 Hot Rolled Plate Exporter, Titanium grade 1 HR Plain Plate Supplier, Titanium gr 1 2B Finish HR Plates, Titanium gr 1 BA Finish HR Plates, Titanium grade 1 HR Plates, Titanium Gr.1 Hot Rolled Plates

Titanium Gr.1 Cold Rolled Plate

ASME SB265 Titanium grade 1 Cold Rolled Plate, ASTM B265 Titanium gr 1 Cold Rolled Plate, UNS R50250 Cold Rolled Plates, 3.7025 Cold Rolled Plates, Ti Alloy Gr.1 Cold Rolled Plate Exporter, Titanium Grade 1 CR Plain Plate Supplier, Titanium Grade 1 2B Finish CR Plates, Titanium Grade 1 BA Finish CR Plates, Titanium Grade 1 CR Plates, Titanium Grade 1 Cold Rolled Plate.

Quality Assurance

Our Titanium Plate Sheets are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN

Material Testing

In addition to PMI Testing, Ultrasonic Testing, Mechanical Testing, Spectroscopic Tests for Chemical Analysis, Flaring Test, and IGC, we welcome stage-wise inspections from any of your representatives or third parties.

Packing and Delivery

No matter where the client is located, we deliver quality products on time, packed in wooden crates or carton boxes.

Titanium Gr 1 Sheets and Plates Application Industries

Titanium Gr 1 Sheets and Plates are used in a wide range of applications and industries. Below are a few.

Petrochemical Industry
Oil and Gas Industry
Chemical Industry
Power Plant Industry
Energy Industry
Pharmaceuticals Industry
Pulp & Paper Indusry
Food Processing Industry
Aerospace Industry
Refining Industry
