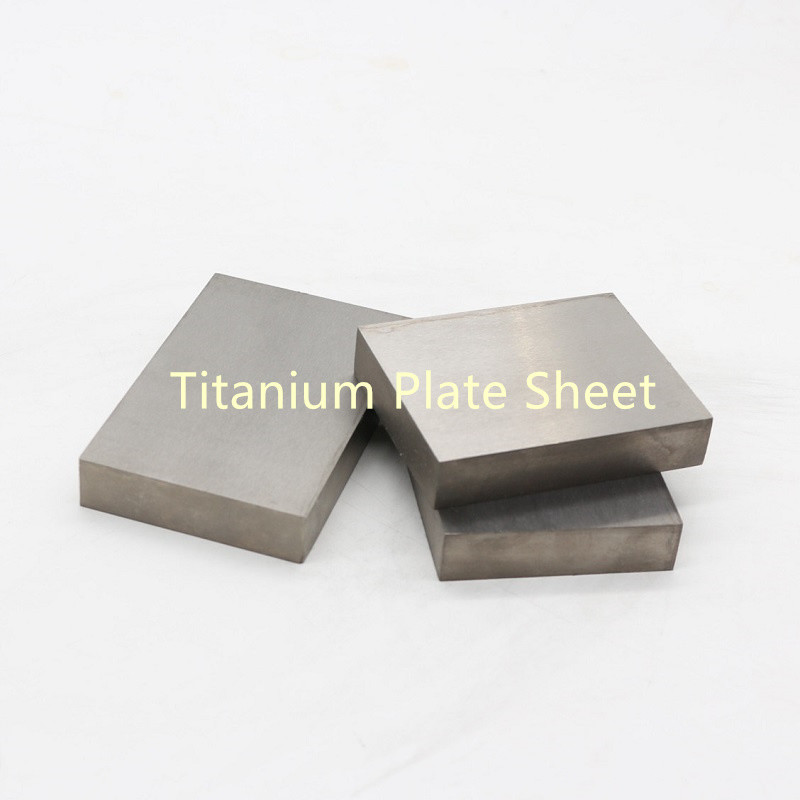

Titanium Sheet Ti Alloy TA1 TA2 TA3 TA4 TC4 ASTM B265 GR1 GR2 GR3 GR4 GR5 Titanium Plate

Ask Lasest Price
Brand Name :	DELTA
Model Number :	GR1 GR2 GR3 GR4 GR5 GR7
Certification :	ISO
Price :	40-45 USD/Kg
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	3 Ton per week
Delivery Time :	5 - 12 days based on the quantity

Add to Cart

Product Details
Company Profile

Titanium Sheet Ti Alloy TA1 TA2 TA3 TA4 TC4 ASTM B265 GR1 GR2 GR3 GR4 GR5 Titanium Plate

Titanium Sheet Ti Alloy TA1 TA2 TA3 TA4 TC4 ASTM B265 GR1 GR2 GR3 GR4 GR5 Titanium Plate

Specification of TITANIUM Sheet Plate

Standards	ASTM B265 / ASME SB265
Thickness	0.4mm-100mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, AS PER CUSTOMER’S REQUIREMENT.
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT.
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard AS PER CUSTOMER’S REQUIREMENT.
Test Certificate	Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test.
Finish	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc.
Form	Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

AVAILABLE SIZES:
Sheet is 0.5mm to 4.75mm thick, up to 1500mm width
Plate is 5mm to 100mm thick, up to 3000mm width

PROCESSING
Hot rolling and cold rolling

PROCESSING STANDARD:
ASME SB/B265, AMS 4911, AMS 4919, AMS 4914, ASTM F67, ASTM F136, ASTM F1341, ISO 5832-2, MIL-T-9046

EXAMPLE APPLICATIONS:
Fire wall, driver protection, valve covers, bell housings, driveshaft tunnels, brake backing plates, heat shields, rocker shaft stands, jewelry

STANDARD	CHEMICAL COMPOSITION (weight %, max or range)											MECHANICAL PROPERTIES (min)
ASTM B265	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Tensile	Yield	El.	Red.
ASTM B265	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Mpa	Mpa	%	%
GR 1	R50250	0.03	0.08	0.015	0.2	0.18						240	138	24	30
GR 2	R50400	0.03	0.08	0.015	0.3	0.25						345	275	20	30
GR 3	R50550	0.05	0.08	0.015	0.3	0.35						450	380	18	30
GR 4	R50700	0.05	0.08	0.015	0.5	0.4						550	483	15	25
GR 5	R56400	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5				895	828	10	25
GR 7	R52400	0.03	0.08	0.015	0.3	0.25			0.12-0.25			345	275	20	30
GR 9	R56320	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0				620	483	15	25
GR 12	R53400	0.03	0.08	0.015	0.3	0.25				0.2-0.4	0.6-0.9	483	345	18	25
GR 23	R56401	0.03	0.08	0.0125	0.25	0.13	5.5-6.5	3.5-4.5				828	759	10	15

TITANIUM MATERIALS SUPPLY SCOPE
TITANIUM GRADE	UNS NO.	WIRE	BAR	SHEET	PLATE	TUBE	PIPE	FITTING	FORGING	FASTENER
Ti Grade 1	R50250	√	√	√	√	√	√	X	√	√
Ti Grade 2	R50400	√	√	√	√	√	√	√	√	√
Ti Grade 3	R50550	√	√	√	√	X	X	X	√	√
Ti Grade 4	R50700	√	√	√	√	X	X	X	√	√
Ti Grade 5 (6Al 4V)	R56400	√	√	√	√	X	X	X	√	√
Ti Grade 7 (0.2Pd)	R52400	√	√	√	√	√	√	√	√	√
Ti Grade 9 (3Al 2.5V)	R56320	√	√	√	√	√	X	X	√	√
Ti Grade 11	R52250	√	√	√	√	√	√	X	√	√
Ti Grade 12 (0.3Mo 0.8Ni)	R53400	√	√	√	√	√	√	√	√	√
Ti Grade 17	R52252	X	√	√	√	√	√	X	√	√
Ti Grade 23 (6Al 4V Eli)	R56401	√	√	√	√	X	X	X	√	√
Notes 1) √-Available, X-Unavailable
Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details.
Notes 3) It may differs a little for materials in different sizes, please also contact us.

FAQ

Q1: Can you cut the materials into small sizes
A: Yes,we can do it to meet you need.

Q2: What's your minimum order quantity (MOQ)
A: We accept small orders,a small amount of samples is ok.

Q3: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the sample fee after you make an order.

Q4: Can you provide Certificates for aluminum materials ?
Q: Yes,we can supply MTC-Material Test Certificate.

Q5: Where is your company located?
A:Our companyis located in Shanghai which is the biggest port in China,and we would pleased if you could feel free to come here.

Q6: What’s the delivery time for orders?
A:Normally it takes 3-10 working days, or mutual agreement.
