Bright Titanium Bar & Rod Bright Diameter 4 - 300mm Precision H7 H9 H11 Tolerance

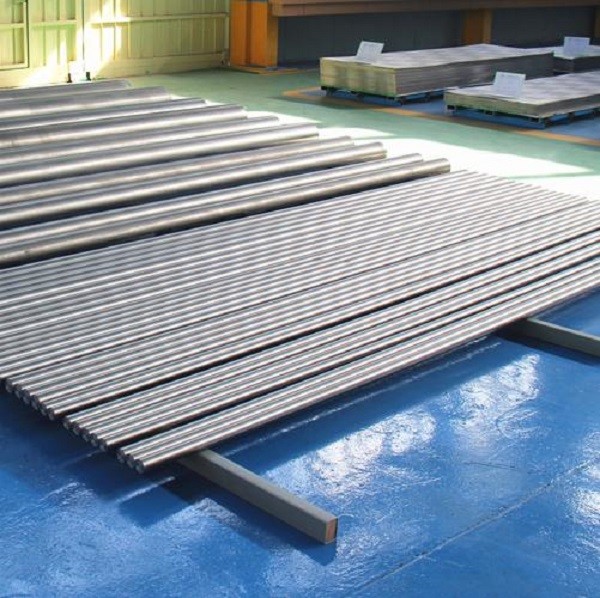

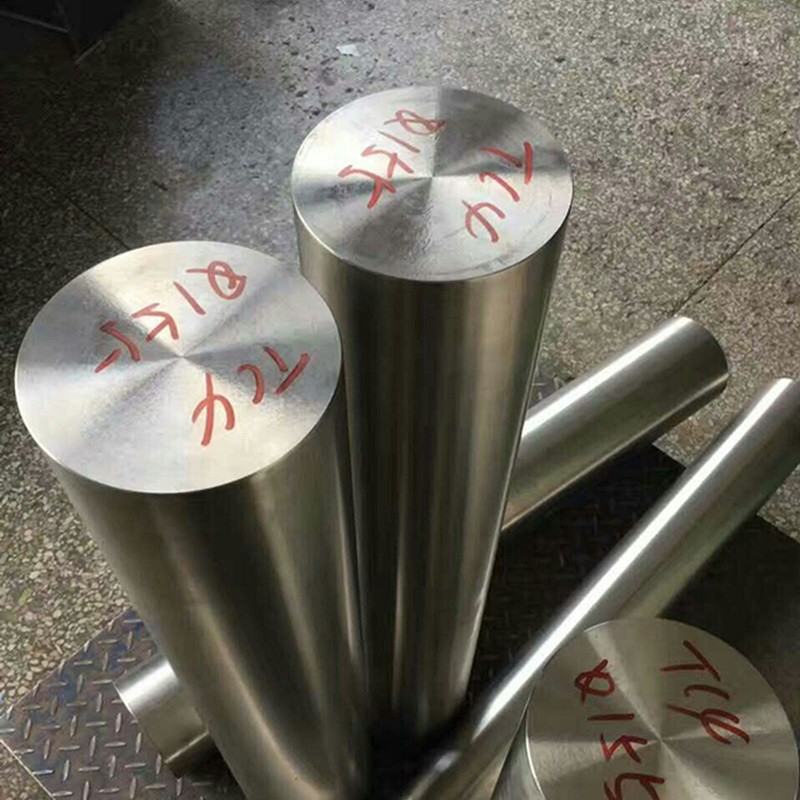

Titanium rods and round bars are a very popular go-to for many products. These require a much more automated process to make than plate and block, which still involve a manual process. Typically manufactured in 8-12 ft. lengths and can be easily cut to custom sizes and shipped. Rods are a universal go-to product for many components made from titanium. Round bar lends itself to a multitude of products, from fasteners to jewelry.

Titanium bar is available in the majority of the almost 40 grades, with the most common being grade 5 and grade 2. The medical field often uses small-diameter round bar for body implantable fasteners and dental appliances. Rods are made from very small diameters for welding, all the way up to larger diameters (such as the 14″ diameter), used for clutch and flywheels.

Titanium bar is available produced and certified to Medical (ASTM F67, ASTM F136, ISO5832-2, ISO5832-3), Aerospace (AMS 4928, AMS 2631b), Industrial (ASTM B348) standards. Stock production is aligned to ASTM, AMS and ISO standards with other standards available on made to order.

Properties of titanium bar:

Titanium bar has Low Density and High Strength, Excellent Corrosion Resistance, Good resistance to effect of heat, Excellent Bearing to cryogenic property, Nonmagnetic and Non-toxic, Good thermal properties, Low Modulus of Elasticity.

Applications:

Titanium bar can be used in aircraft engines and parts, chemical equipment parts (reactors, pipes, heat exchangers and valves, etc.), ship hulls, bridges, medical implants, artificial bones, sporting products and consumer goods. Titanium bar is also used as titanium fasteners , such as titanium bolts nuts.

We can produce titanium bar according to customers’ drawing. Special requirements will be agreed on by the titanium suppliers and titanium buyers of negotiation. TigMetal bars for medical applications have tight tolerances and consistency in chemical composition, reducing machine set-up time and increasing cutting speeds. The excellent surface finish of TigMetal medical bars saves polishing time and contributes to a better end-product.

Chemical requirements (Nominal %)

Mechanical requirements

Testing

• Corrosion test
• Eddy Current test
• Mechanical test
• Microstructure test
• Ultrasonic test

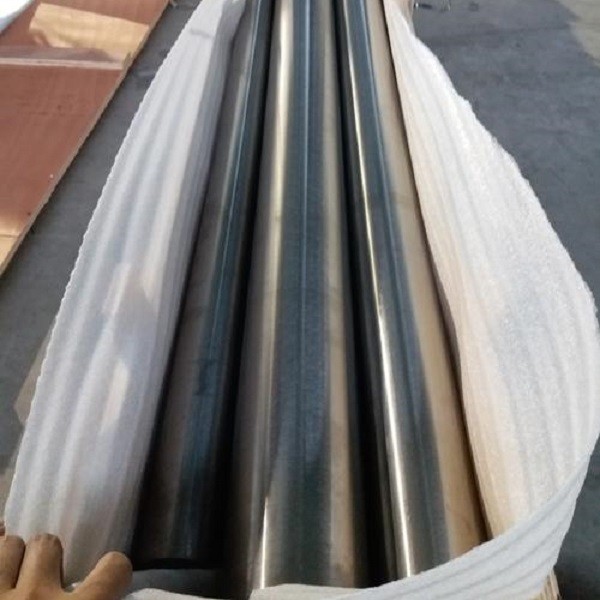

Packaging With the standard plastic bags inside, wooden case or as per client’s requirement.

Production process Titanium Sponge—Compacting electrodes—Multiple melting—Titanium ingots—Machining—UT testing—Chemical composition inspection—Forged

billets—Forged/Rolled—Annealed—-Straightening—Machining—UT testing—Visual and Dimension Inspection—UT testing—Marking—Packaging—Delivery

Titanium bar is highly resistant to chloride-containing media, practically all salt solutions, seawater, a range of acids, organic and inorganic chemicals and gases. The high environmental resistance is primarily based on a very thin, tenacious and highly protective surface oxide film. The oxide film provides high resistance to erosion in high velocity process streams. It is non-magnetic and characterized by a high melting point, high strength-to-weight ratio and a low modulus of elasticity. We provide high quality titanium bar with competitive prices and unrivaled customer service.
